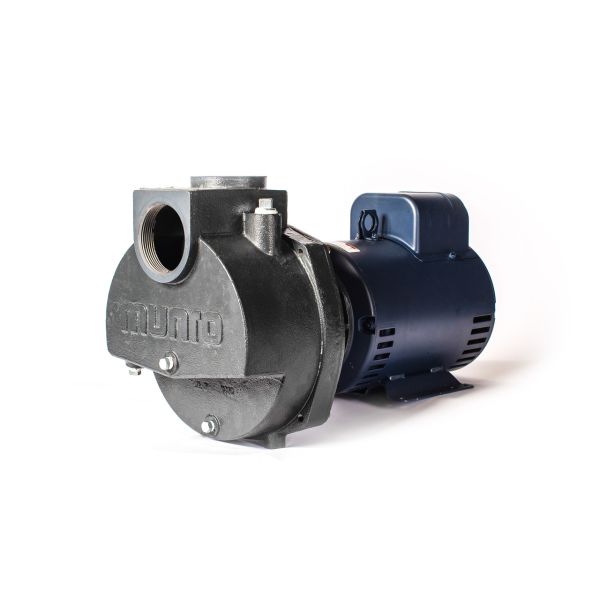

Munro LP3005B Self-Priming Centrifugal Pump – 5 HP, 1-Phase, 3" Ports
was
$5,465.00
Special Price
$3,552.25
The Munro LP3005B is a 5 HP self-priming centrifugal pump with 3" discharge and suction ports, built for mid-size turf and agricultural irrigation including athletic fields and pastureland. Drawing from ponds, lakes, streams, or cisterns up to 15 ft below the pump, it delivers up to 145 GPM at 30–70 PSI with a cast iron body and brass impeller for long-term durability.
| Horsepower | 5 HP |
|---|---|
| Phase | 1-Phase |
| Discharge / Suction | 3" / 3" |
| Flow Range | 47–145 GPM |
| Operating Pressure | 30–70 PSI |
| Shutoff Pressure | 75 PSI |
| Max Temperature | 180°F |
| Max Suction Lift | 15 ft |
| Weight | 170 lbs |
| Impeller | Brass |
| Wear Ring | Stainless Steel |
| Body | Cast Iron |
Availability:
In stock
Only 5 left
SKU
LP3005B
Munro LP3005B – 5 HP Self-Priming Centrifugal Pump with 3" Ports
The Munro LP3005B is a 5 HP self-priming centrifugal pump designed for mid-size turf and agricultural irrigation operations. With 3" discharge and suction connections, it moves up to 145 GPM from surface water sources including ponds, lakes, streams, and cisterns. Purpose-built for athletic fields, pastureland, and farm irrigation systems requiring high flow with dependable self-priming performance.
Key Features and Benefits
- 3" Discharge and Suction Ports: Reduced pipe friction losses for high-volume flow in large irrigation systems.
- 5 HP, 1-Phase Motor: High-output performance accessible from standard single-phase power.
- 47–145 GPM Flow Range: Covers broad irrigation demands from partial to full-capacity operation.
- Self-Priming up to 15 ft: Draws from surface water sources without submersible pumps.
- Cast Iron Body: Built for long-term outdoor service in demanding agricultural environments.
- Brass Impeller + SS Wear Ring: Corrosion resistance and long-term efficiency retention.
Specifications
| Horsepower | 5 HP |
|---|---|
| Phase | 1-Phase |
| Discharge / Suction | 3" / 3" |
| Flow Range | 47–145 GPM |
| Operating Pressure | 30–70 PSI |
| Shutoff Pressure | 75 PSI |
| Max Temperature | 180°F |
| Max Suction Lift | 15 ft |
| Weight | 170 lbs |
| Impeller | Brass |
| Wear Ring | Stainless Steel |
| Body | Cast Iron |
