1-1/2" Y Disc Filter – 120 Mesh, 66 GPM | BALDR

was $123.32 Special Price $76.84

Heavy-duty Y-style disc filter for 1-1/2" commercial irrigation headers and submain lines. Handles up to 66 GPM with a polypropylene disc stack delivering in-depth 120 mesh filtration. The larger 82 in² filtration area supports longer service intervals between cleanings.

Connection	1-1/2" MPT
Flow Rate	66 GPM max
Filtration	120 Mesh
Filtration Area	82 in²
Max Pressure	116 PSI
Max Temperature	140°F
Disc Material	Polypropylene
Replacement Cartridge	BD150Y-CART120

Availability: In stock

SKU

BD150Y

Need More?

Ships Same Day

Delivery time: 2-4 business days

Add to Wish List Add to Compare

Details

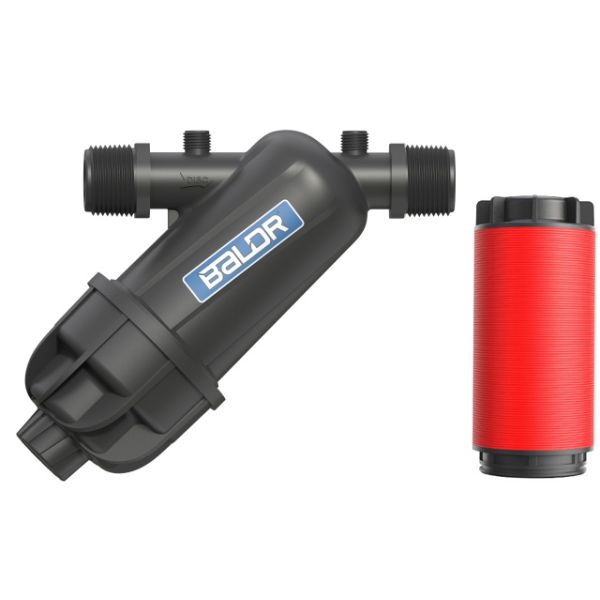

BD150Y – 1-1/2" Y Disc Filter, 120 Mesh

The BD150Y is a 1-1/2" male NPT Y-style disc filter built for commercial irrigation submains and headers operating at up to 66 GPM. Its 82 in² polypropylene disc stack provides substantially more filtration area than the smaller Y-body models, reducing clogging frequency on lines with moderate sediment loads.

Key Features

66 GPM capacity: Handles submain flow rates feeding multiple drip zones or micro-irrigation blocks.
82 in² filtration area: Nearly 3× the area of the 3/4" and 1" Y-body models, extending cleaning intervals on sediment-loaded source water.
120 mesh in-depth filtration: Diagonal cross-groove disc stack traps particles throughout the disc depth for consistent protection of emitters and nozzles.
116 PSI rated: Compatible with commercial mainline pressures without a pressure reducer upstream.
Replaceable cartridge: BD150Y-CART120 disc cartridge can be swapped without removing the body from the line.
140°F temperature rating: Suitable for exposed installations with elevated ambient temperatures.
