1" Y Disc Filter – 120 Mesh, 26 GPM | BALDR

was $72.31 Special Price $25.49

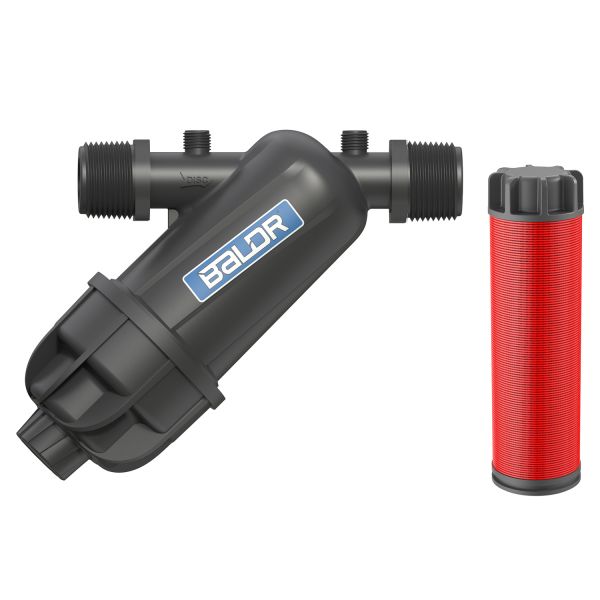

Inline Y-style disc filter for 1" irrigation lines requiring reliable sediment removal ahead of drip emitters or micro-sprinklers. Polypropylene disc stack with diagonal cross-grooves provides in-depth filtration at up to 26 GPM. Uses the same BD75Y-CART120 replacement cartridge as the 3/4" model.

Connection	1" MPT
Flow Rate	26 GPM max
Filtration	120 Mesh
Filtration Area	30 in²
Max Pressure	116 PSI
Max Temperature	140°F
Disc Material	Polypropylene
Replacement Cartridge	BD75Y-CART120

Availability: In stock

SKU

BD100Y

Need More?

Ships Same Day

Delivery time: 2-4 business days

Add to Wish List Add to Compare

Details

BD100Y – 1" Y Disc Filter, 120 Mesh

The BD100Y is a 1" male NPT Y-style disc filter for inline sediment protection on small commercial drip and micro-irrigation systems. Its polypropylene disc stack uses diagonal cross-grooves to trap particles in depth across the full disc surface, extending service intervals compared to flat-screen filters.

Key Features

In-depth disc filtration: Cross-groove disc stack catches particles throughout its depth, not just at the inlet face.
26 GPM capacity: Sized for 1" laterals feeding drip zones or block irrigation headers.
120 mesh: Removes particles to approximately 130 microns — standard protection for drip emitters.
Shared cartridge with BD75Y: The BD75Y-CART120 cartridge fits both 3/4" and 1" Y-body models, simplifying spare parts inventory.
116 PSI rated: Compatible with typical commercial mainline pressures.
Replaceable disc cartridge: Service by swapping the cartridge — no need to replace the body.
