2" Y Disc Filter – 120 Mesh, 110 GPM | BALDR

was $143.19 Special Price $102.56

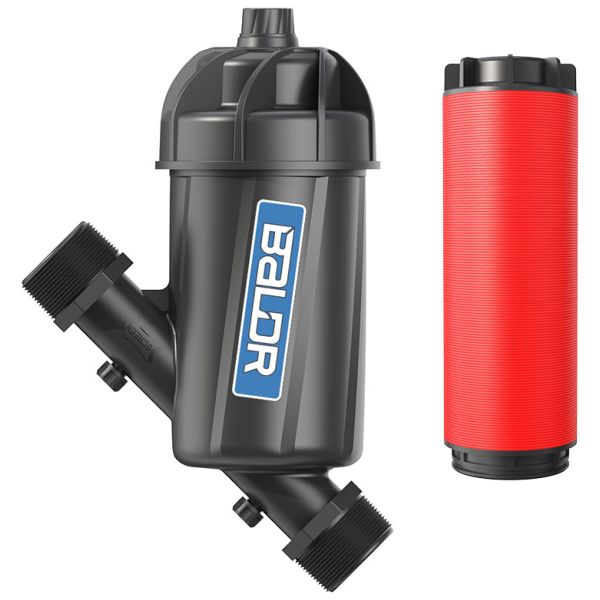

Commercial-capacity Y-style disc filter for 2" mainlines and headers. Handles up to 110 GPM with a 93 in² polypropylene disc stack. Available in 80 or 120 mesh — choose 80 mesh for general surface water, 120 mesh for drip and micro-irrigation systems.

Connection	2" MNPT
Flow Rate	110 GPM max
Filtration	120 Mesh (body includes 120 mesh cartridge)
Filtration Area	93 in²
Max Pressure	116 PSI
Max Temperature	140°F
Disc Material	Polypropylene
Replacement Cartridges	BD225Y-CART80 (80 mesh), BD225Y-CART120 (120 mesh)

Availability: In stock

SKU

BD225Y

Need More?

Ships Same Day

Delivery time: 2-4 business days

Add to Wish List Add to Compare

Details

BD225Y – 2" Y Disc Filter, 120 Mesh

The BD225Y is a 2" male NPT Y-style disc filter for commercial irrigation mainlines and zone headers operating at up to 110 GPM. Its 93 in² polypropylene disc stack delivers reliable in-depth filtration and accepts interchangeable cartridges in 80 or 120 mesh, letting operators select filtration level to match water source and irrigation hardware requirements.

Key Features

110 GPM capacity: Handles 2" commercial mainline flow rates without restrictive pressure drop.
Two mesh options: Swap between BD225Y-CART80 (80 mesh, general sediment) and BD225Y-CART120 (120 mesh, drip and micro-irrigation) using the same body.
93 in² filtration area: Large disc stack reduces backflush frequency on moderate sediment loads.
In-depth disc filtration: Diagonal cross-groove discs trap particles throughout the stack depth, not just at the surface.
116 PSI rated: Suitable for commercial mainline pressures.
Polypropylene construction: Corrosion-resistant body and discs rated to 140°F.
