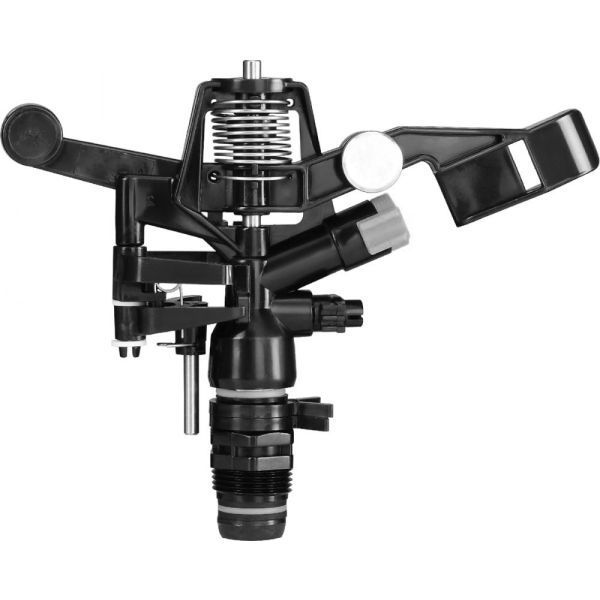

3/4" Part Circle Plastic Impact Sprinkler 23° - 11/64" x 3/32"

For commercial agriculture. Flow: 3.5-13 GPM, Radius: 35.3-53.1 feet, Pressure: 15-55 PSI. Color-coded bayonet nozzles with integrated stream straightening vane for long range. Stainless steel spring & pin. Features excellent uniformity, long-lasting dependability, and is made for commercial agriculture.

Base3/4" MNPT
Flow3.5-13 GPM
Throw Radius35.3-53.1 ft.
Operating Pressure15-55 PSI
Trajectory Angle23°
OperationPart Circle
Drive MechanismSpring Arm Impact
was $20.62 Special Price $7.89
In stock
SKU
RK-36

3/4" Part Circle Plastic Impact Sprinkler 23° - 11/64" x 3/32"

Features:

  • Body, arm, nut, tube and part circle mechanism made of engineering plastic for durability and corrosion resistance
  • Bayonet nozzle connection for easy service in the field
  • Nozzles with integrated stream straightening vane for long range
  • Recommended spacing up to 50 ft. (15m) for higher distribution uniformity

Material:

  • Body: Plastic
  • Spring: Stainless Steel
  • Pin: Stainless Steel
More Information
Base 3/4" MNPT
Flow 3.5-13 GPM
Throw Radius 35.3-53.1 ft.
Operating Pressure 15-55 PSI
Trajectory Angle 23°
Operation Part Circle
Drive Mechanism Spring Arm Impact
