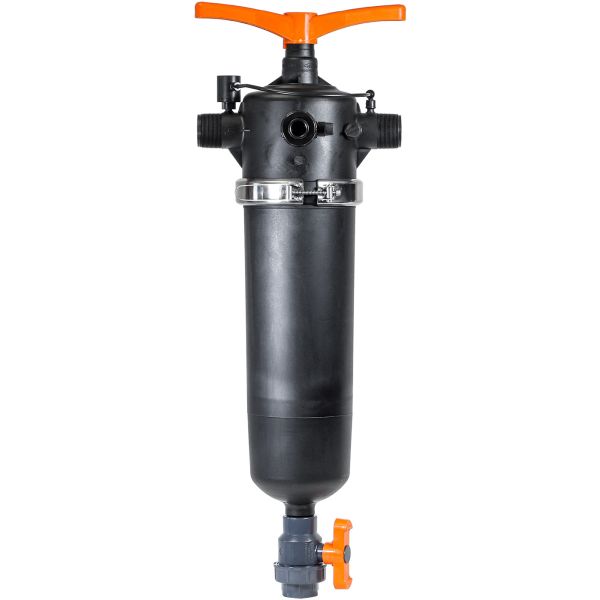

2" Semi-Automatic T Disc Filter – 120 Mesh, 110 GPM, 2" MNPT
$325.24
2" semi-automatic T disc filter that can be flushed and cleaned without shutting down the irrigation system. Designed for commercial agricultural operations where continuous operation is critical, the RKD-225NSA eliminates the need to interrupt irrigation cycles for routine filter maintenance at flows up to 110 GPM.
| Connection | 2" MNPT |
|---|---|
| Mesh | 120 Mesh |
| Max Flow Rate | 110 GPM |
| Max Pressure | 85 PSI |
| Min Flushing Pressure | 30 PSI |
| Min Flushing Flow | 80 GPM |
| Body Material | Polypropylene glass reinforced |
| Cartridge Material | Polypropylene discs |
| Filter Style | T-Style, Semi-Automatic |
Availability:
In stock
SKU
RKD-225NSA
Ships Same Day
All orders placed by 12 PM local warehouse time will ship the same day. Some exclusions apply. Delivery time may increase if item isn't available in closest warehouse.
Delivery time: 2-4 business days
RKD-225NSA – 2" Semi-Automatic Disc Filter for Continuous Commercial Irrigation
The RKD-225NSA is a 2" semi-automatic T disc filter designed for commercial agricultural irrigation systems where uninterrupted operation is essential. Unlike manual disc filters that require a system shutdown for cleaning, the RKD-225NSA can be flushed while fully in service — requiring only 30 PSI minimum flushing pressure to initiate the cleaning cycle. The glass-reinforced polypropylene body and polypropylene disc cartridge provide chemical resistance and durability in field conditions at flows up to 110 GPM and pressures up to 85 PSI.
Key Features and Benefits
- In-service flushing capability — clean the filter without stopping water flow, eliminating irrigation downtime during peak growing season maintenance
- 30 PSI minimum flushing pressure — low flushing pressure threshold is compatible with most commercial agricultural system operating pressures
- 110 GPM flow capacity — handles mid-to-large irrigation zones and high-flow sub-mains at a single filtration point
- 85 PSI working pressure — compatible with standard agricultural and greenhouse operating pressures
- Glass-reinforced polypropylene body — chemical and UV resistant; built for sustained outdoor agricultural use
- Polypropylene disc cartridge — 120-mesh disc construction provides standard drip-grade filtration with corrosion-free performance
- T-Style body — vertical cartridge orientation for accessible maintenance when full manual cleaning is required
Technical Specifications
Download Specification Sheet
Dimensions - Inches
| Size | A | B | C |
|---|---|---|---|
| 2" | 15 | 31 | 40 |
| 3" | 15 | 31 | 40 |
Dimensions - Millimeters
| Size | A | B | C |
|---|---|---|---|
| 2" | 380 | 780 | 1000 |
| 3" | 380 | 780 | 1000 |
