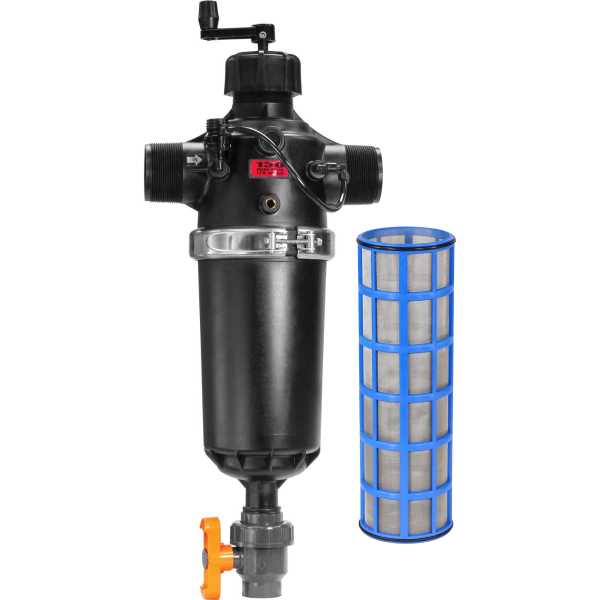

IrrigationKing 3" Semi-Automatic T Screen Filter – 120 Mesh, 175 GPM
was
$634.16
Special Price
$415.85
The RKTS340NSA is a 3" semi-automatic inline screen filter with suction nozzle self-cleaning and a pressure differential indicator. When the differential reaches the set point, the flush valve opens to evacuate accumulated debris without fully shutting down the system. Designed for commercial irrigation mainlines where manual filter cleaning is impractical during peak operation. Rated to 145 PSI.
| Connection Size | 3" MNPT |
|---|---|
| Filter Style | Semi-Automatic T-Style |
| Screen Mesh | 120 Mesh |
| Nominal Flow Rate | 175 GPM |
| Max Operating Pressure | 145 PSI |
| Filtration Area | 129.0 in² |
| Cleaning Method | Suction Nozzle (Semi-Auto) |
| Pressure Indicator | Differential Pressure Indicator |
| Body Material | Polypropylene |
| Screen Material | Stainless Steel |
| Cartridge Diameter | 4.76" (122mm) |
| Cartridge Length | 15" (382mm) |
Availability:
In stock
SKU
RKTS340NSA
Ships Same Day
All orders placed by 12 PM local warehouse time will ship the same day. Some exclusions apply. Delivery time may increase if item isn't available in closest warehouse.
Delivery time: 2-4 business days
RKTS340NSA – 3" Semi-Automatic T Screen Filter, 120 Mesh
The RKTS340NSA is a 3" semi-automatic inline screen filter designed for commercial irrigation systems where frequent manual maintenance is not feasible. The suction nozzle cleaning mechanism and built-in pressure differential indicator work together to alert the operator when the screen requires flushing, then purge accumulated debris through the flush outlet. The 120 mesh stainless steel screen provides drip tape, micro-sprinkler, and emitter protection (125 micron openings) across a 129.0 in² filtration area. Rated to 145 PSI.
Key Features and Benefits
- Suction Nozzle Self-Cleaning – Reduces labor and downtime by flushing accumulated debris from the screen without full system shutdown.
- Pressure Differential Indicator – Visually signals when the screen is approaching blockage so operators can initiate flushing at the right time, not on a fixed calendar schedule.
- 120 Mesh Stainless Steel Screen – Suited for drip tape, micro-sprinkler, and emitter protection (125 micron openings), protecting downstream emitters and nozzles.
- 129.0 in² Filtration Area – Large screen surface extends intervals between cleaning cycles.
- 175 GPM – Sized for 3" commercial mainlines.
- 145 PSI Pressure Rating – Suitable for high-pressure mainline supply in farm and municipal irrigation networks.
- Replaceable Cartridge – Compatible with RKTS340-CART80, RKTS340-CART120, RKTS340-CART150.
Construction
Body: polypropylene. Screen: stainless steel mesh. Seals: EPDM O-rings. Connection: 3" MNPT. Cleaning: suction nozzle with manual flush valve.
Download Specification Sheet
Dimensions - Inches
| Size | L | H | H1 | H2 | H3 |
|---|---|---|---|---|---|
| 2" | 14 | 33.25 | 15.25 | 18 | 22.5 |
| 3" | 14 | 36.25 | 15.25 | 21 | 25.5 |
Dimensions - Millimeters
| Size | L | H | H1 | H2 | H3 |
|---|---|---|---|---|---|
| 2" | 356 | 845 | 387 | 457 | 572 |
| 3" | 356 | 921 | 387 | 533 | 648 |
Spare Parts Available:
- O-ring Top Crank Spindle (225NSA, 340NSA) 2PCS: RKNS-CRANKORING
- Differential assembly for semi auto filters.: RKNS-DIFF
- RKTS-CARTORING (TS230, TS340, TS350, TS225NSA, TS340NSA, RKTS490): RKTSCART-ORING
- 1-1/2" Single Union PVC Ball Valve FNPT: RK1BV15OT
- 80 Mesh - Screen Filter Cartridge (RKTS230, RKTS340, RKTS340NSA): RKTS340-CART80
- 120 mesh - Screen Filter Cartridge (RKTS230, RKTS340, RKTS340NSA): RKTS340-CART
- 150 mesh - Screen Filter Cartridge (RKTS230, RKTS340, RKTS340NSA): RKTS340-CART150
| Inlet / Outlet | 3" MNPT |
|---|---|
| Screen | 120 Mesh |
| Maximum Pressure | 145 PSI |
| Range of Flow Rate | 155-185 GPM |
| Nominal Flow Rate | 175 GPM |
| Filtration Surface Area | 129 in² |
| Cartridge Diameter | 4.7" (118mm) |
| Cartridge Length | 14.9" (378mm) |
