1/2" Low Angle Plastic Impact Sprinkler 12° - 2.5 mm

1/2

1/2" Part Circle Plastic Impact Sprinkler 25° - 2.9 mm

1/2" Low Angle Plastic Wedge Drive Impact Sprinkler 12° - 2.5 mm

was $11.02 Special Price $5.96

A low angle sprinkler is intended to spray water under low overhanging branches, like in orchards. A lower trajectory sprinkler is also good for high wind areas. Intended for commercial agriculture use. The wedge drive lowers the coverage area for higher GPM per square foot.

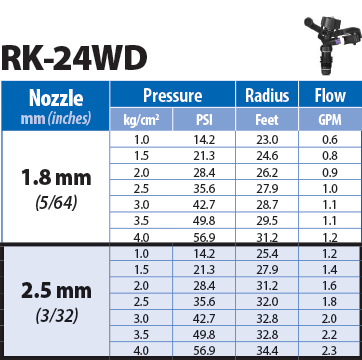

Flow: 1.6-2.7 GPM, Radius: 23-34.4 feet, Pressure: 14-55 PSI. Color-coded bayonet nozzles with integrated stream straightening vane for long range. Stainless steel spring & pin. Features excellent uniformity, long-lasting dependability, and is made for commercial agriculture.

Base1/2" MNPT
Flow1.6-2.7 GPM
Throw Radius23-34.4 ft.
Operating Pressure14-55 PSI
Trajectory Angle12°
OperationFull Circle
Drive MechanismSpring Arm Impact with Wedge
Availability: In stock
SKU
RK-24WD

1/2" Low Angle Plastic Wedge Drive Impact Sprinkler 12° - 2.5 mm

Features:

  • Color coded nozzles for easy size identification
  • Bayonet nozzle connection for easy service in the field
  • Nozzles with integrated stream straightening vane for long range
  • Made of engineering plastic material for durability and corrosion resistant
  • Recommended spacing up to 33 ft. (10m) for higher distribution uniformity

Material:

  • Body: Plastic
  • Spring: Stainless Steel
  • Pin: Stainless Steel
More Information
Base 1/2" MNPT
Flow 1.6-4.2 GPM
Throw Radius 25.4-34.4 ft.
Operating Pressure 30-55 PSI
Trajectory Angle 12°
Operation Full Circle
Drive Mechanism Spring Arm Impact
