1" Plastic Impact Sprinkler 25° FNPT - 9/32" x 11/64"

1/2

1/2" Part Circle Plastic Impact Sprinkler 25° - 2.9 mm

1/2" Low Angle Plastic Impact Sprinkler 12° - 2.5 mm

Rating:
100% of 100

For commercial agriculture. Flow: 1.6-4.2 GPM, Radius: 25.4-34.4 feet, Pressure: 30-55 PSI. Color-coded bayonet nozzles with integrated stream straightening vane for long range. Stainless steel spring & pin. Features excellent uniformity, long-lasting dependability, and is made for commercial agriculture.

Base1/2" MNPT
Flow1.6-4.2 GPM
Throw Radius25.4-34.4 ft.
Operating Pressure30-55 PSI
Trajectory Angle12°
OperationFull Circle
Drive MechanismSpring Arm Impact
was $6.90 Special Price $3.69
In stock
SKU
RK-24

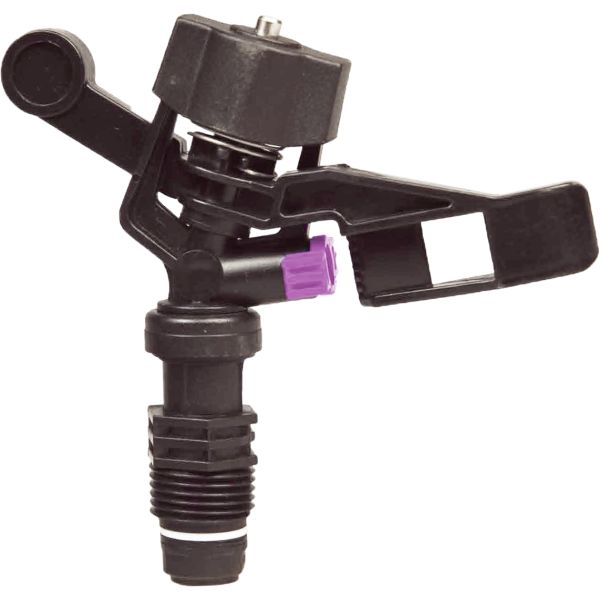

1/2" Low Angle Plastic Impact Sprinkler 12° - 2.5 mm

Features:

  • Color coded nozzles for easy size identification
  • Bayonet nozzle connection for easy service in the field
  • Nozzles with integrated stream straightening vane for long range
  • Made of engineering plastic material for durability and corrosion resistant
  • Recommended spacing up to 33 ft. (10m) for higher distribution uniformity

Material:

  • Body: Plastic
  • Spring: Stainless Steel
  • Pin: Stainless Steel
More Information
Base 1/2" MNPT
Flow 1.6-4.2 GPM
Throw Radius 25.4-34.4 ft.
Operating Pressure 30-55 PSI
Trajectory Angle 12°
Operation Full Circle
Drive Mechanism Spring Arm Impact
