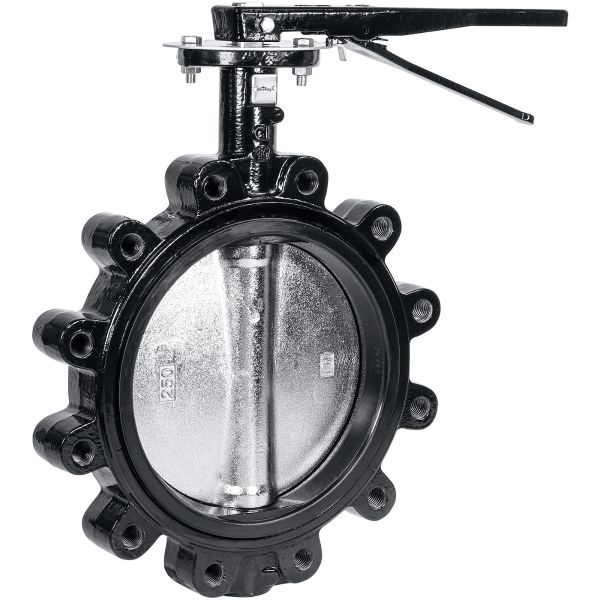

10" Cast Iron Butterfly Valve Lug Style - EPDM Seat, Lever Operated
was
$935.08
Special Price
$452.90
Cast iron lug style butterfly valve with nickel plated ductile iron disc and EPDM seat.
| Size | 10" |
|---|---|
| Body Material | Cast Iron |
| Body Design | Lug Type |
| Operation | Lever |
| Connections | Flange / ANSI 125 |
| Pressure Rating | 225 PSI |
| Temperature Rating | -4° to 194° F |
| Length (End to End) | 2.6" |
| Weight | 64 lbs |
Availability:
In stock
SKU
VK-BF-210L
Ships Same Day
All orders placed by 12 PM local warehouse time will ship the same day. Some exclusions apply. Delivery time may increase if item isn't available in closest warehouse.
Delivery time: 2-4 business days
10" Cast Iron Butterfly Valve Lug Style - EPDM Seat, Lever Operated
The butterfly valve is a rotary valve in which a disk-shaped seating element is rotated 90° to open or close the flow passage. Can be left partially open or closed for flow throttling. Butterfly valves cannot be used where a non obstructed full opening is needed. Needs to be installed with flanges. No need for gaskets since they already have a rubber seal.
Features:
- Lever handle can lock in 10 positions for throttle control
- Lug style body design offers dead-end service without the use of a downstream companion flange
- Fusion-Bonded Epoxy Coating
- Does not require flange gaskets thanks to EPDM seat
Material:
- Body: Cast Iron
- Disc: Nickel Plated Ductile Iron
- Seat: EPDM
- Stem: Stainless Steel SS416
- Locking Plate: Stainless Steel SS420
- Lever: Malleable Iron
- Paint: Fusion-Bonded Epoxy
Download Specification Sheet
Dimensions - Inches
| Size | A | B | C | ⌀D | M | N | L | P | ⌀Q | S | ⌀T | ⌀U | ⌀V |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2" | 3 | 6.4 | 1.3 | 4.8 | 5/8"-11 UNC | 4 | 1.6 | 10.1 | 0.5 | 0.4 | 2.8 | 3.6 | 0.4 |
| 3" | 3.8 | 7.1 | 1.3 | 6 | 5/8"-11 UNC | 4 | 1.8 | 10.1 | 0.5 | 0.4 | 2.8 | 3.6 | 0.4 |
| 4" | 4.5 | 7.9 | 1.3 | 7.5 | 5/8"-11 UNC | 8 | 2.1 | 10.1 | 0.6 | 0.5 | 2.8 | 3.6 | 0.4 |
| 6" | 5.5 | 8.9 | 1.3 | 9.5 | 3/4"-10 UNC | 8 | 2.2 | 10.1 | 0.8 | 0.6 | 2.8 | 3.6 | 0.4 |
| 8" | 6.9 | 10.3 | 1.5 | 11.8 | 3/4"-10 UNC | 8 | 2.4 | 14 | 0.9 | 0.7 | 4 | 4.9 | 0.4 |
| 10" | 8 | 11.5 | 1.5 | 14.3 | 7/8"-9 UNC | 12 | 2.6 | 14 | 1.1 | 0.9 | 4 | 4.9 | 0.4 |
| 12" | 9.5 | 13.3 | 1.5 | 17 | 7/8"-9 UNC | 12 | 3.1 | 14 | 1.3 | 0.9 | 4 | 4.9 | 0.4 |
Dimensions - Millimeters
| Size | A | B | C | ⌀D | M | N | L | P | ⌀Q | S | ⌀T | ⌀U | ⌀V |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2" | 76 | 162 | 32 | 120.7 | 5/8"-11 UNC | 4 | 42 | 255 | 12.7 | 10 | 70 | 90 | 9.5 |
| 3" | 95 | 181 | 32 | 152.4 | 5/8"-11 UNC | 4 | 45 | 255 | 12.7 | 10 | 70 | 90 | 9.5 |
| 4" | 114 | 200 | 32 | 190.5 | 5/8"-11 UNC | 8 | 52 | 255 | 15.88 | 12 | 70 | 90 | 9.5 |
| 6" | 139 | 225 | 32 | 241.3 | 3/4"-10 UNC | 8 | 56 | 255 | 19.05 | 14 | 70 | 90 | 9.5 |
| 8" | 177 | 260 | 38 | 298.5 | 3/4"-10 UNC | 8 | 60 | 355 | 22.23 | 17 | 102 | 125 | 11.5 |
| 10" | 203 | 292 | 38 | 362 | 7/8"-9 UNC | 12 | 66 | 355 | 28.58 | 22 | 102 | 125 | 11.5 |
| 12" | 242 | 337 | 38 | 431.8 | 7/8"-9 UNC | 12 | 77 | 355 | 31.75 | 24 | 102 | 125 | 11.5 |
| Flange Connection | flange_connection |
|---|
