Starter Mini-Valve – 10 mm Locking Insert x 5/8" Drip Tape Swivel

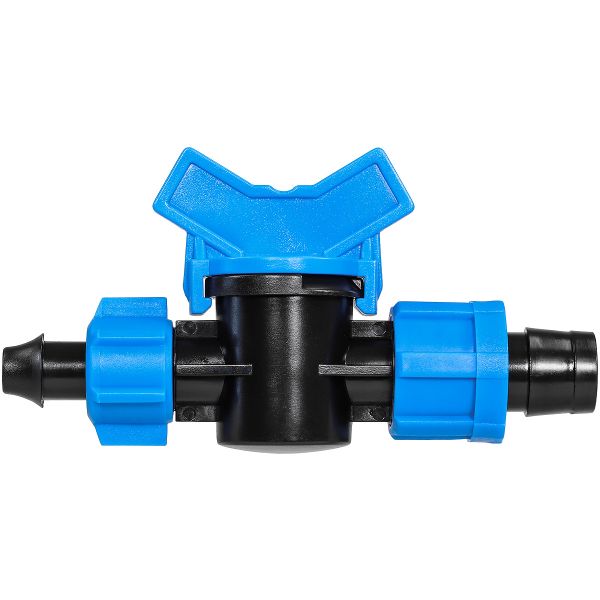

RKMV1317 – Starter Mini-Valve, 10 mm Locking Insert x 5/8" Drip Tape Swivel

The RKMV1317 is the locking-insert version of the RKMV1017. Its locking barb provides superior pull-out resistance compared to a standard barb insert, making it the better choice for higher-pressure systems or installations where the valve may be subject to mechanical stress.

Key Features & Benefits

• Locking barb insert — superior pull-out resistance versus standard barb; stays secure under pressure and mechanical stress
• Integrated on/off valve — shut off individual drip tape runs for maintenance or zone control
• 5/8" swivel tape outlet — freely rotating connection prevents tape twisting
• Durable plastic construction — withstands UV and fertigation chemicals

Installation

Use an 8 mm red-handle punch tool to create a hole in your poly supply line. Push the locking insert firmly into the hole until it clicks into place. Slide drip tape onto the swivel outlet. Open the valve to start flow.
