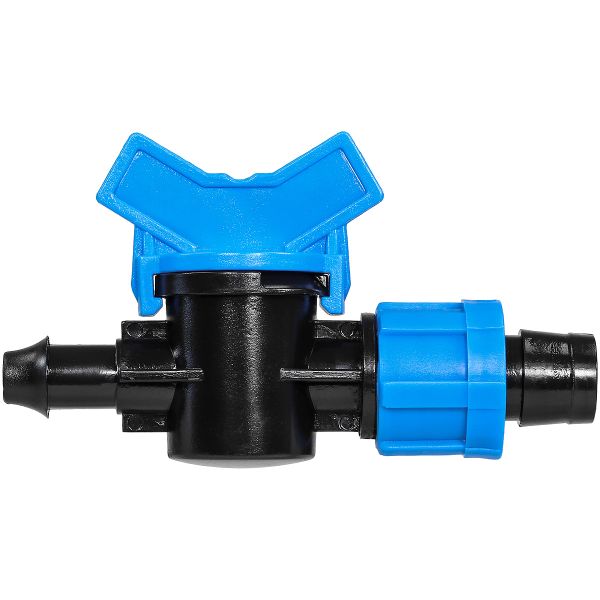

Starter Mini-Valve – 10 mm Barb Insert x 5/8" Drip Tape Swivel

RKMV1017 – Starter Mini-Valve, 10 mm Barb Insert x 5/8" Drip Tape Swivel

The RKMV1017 starter mini-valve inserts directly into poly tubing to start a 5/8" drip tape lateral with built-in on/off flow control. The 10 mm barb insert provides a compact, secure connection that sits low-profile against the supply line.

Key Features & Benefits

• Integrated on/off valve — shut off individual drip tape runs for maintenance or zone control
• 10 mm barb insert — compact, low-profile connection that inserts directly into poly tubing
• 5/8" swivel tape outlet — freely rotating connection prevents tape twisting
• Durable plastic construction — withstands UV and fertigation chemicals

Installation

Use an 8 mm red-handle punch tool to create a hole in your poly supply line. Push the 10 mm barb insert firmly into the hole. Slide drip tape onto the swivel outlet. Open the valve to start flow.
