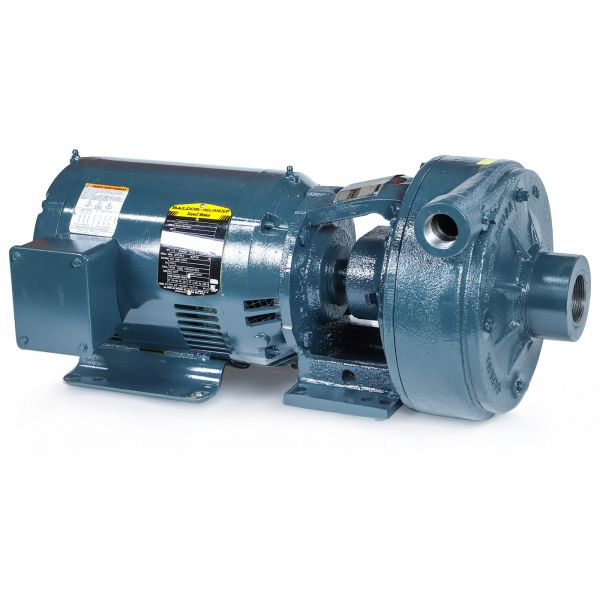

Cornell 1" NPT Centrifugal Pump – 5 HP, 3-Phase, SS Impeller
$3,549.00
The Cornell 1WH-5HP is a commercial-grade cast iron centrifugal pump built for agricultural, industrial, and municipal water transfer. Engineered with an oversized shaft, enclosed multi-vane stainless steel impeller, and tangential single volute for high efficiency and long service life under continuous duty.
NOT SELF PRIMING — requires external priming before operation.
| Discharge | 1" NPT |
|---|---|
| Horsepower | 5 HP |
| Phase | 3-Phase |
| Speed | 3600 RPM |
| Flow Range | 10–64 GPM |
| Max Pressure | 80 PSI |
| Shutoff Head | 180 ft |
| Max Solids | 0.25" |
| Impeller | Stainless Steel, Enclosed Multi-Vane |
| Body | Cast Iron |
Availability:
In stock
Only 3 left
SKU
1WH-5HP
Cornell 1WH-5HP – 1" NPT 5 HP Commercial Centrifugal Pump
The Cornell 1WH-5HP is a high-efficiency centrifugal pump designed for demanding agricultural, industrial, and municipal applications. With a cast iron body, stainless steel enclosed multi-vane impeller, oversized shaft, and tangential single volute casing, this pump delivers reliable performance up to 73% BEP efficiency at 3600 RPM.
NOT SELF PRIMING — must be primed before starting. Do not run dry.
Key Features and Benefits
- Cast Iron Body: Provides long-term durability and resistance to wear under continuous agricultural use.
- Stainless Steel Enclosed Impeller: Handles water with fine suspended solids up to 0.25" without impeller degradation.
- Oversized Shaft: Reduces deflection and bearing wear, extending pump lifespan in high-load scenarios.
- Tangential Single Volute: Optimizes hydraulic efficiency across a wide operating range (10–64 GPM).
- High Efficiency: Up to 73% BEP reduces energy costs on long irrigation seasons.
- 3-Phase Motor: Smooth, energy-efficient operation suited for commercial pump installations.
Specifications
| Discharge | 1" NPT |
|---|---|
| Horsepower | 5 HP |
| Phase | 3-Phase |
| Speed | 3600 RPM |
| Flow Range | 10–64 GPM |
| Max Pressure | 80 PSI |
| Shutoff Head | 180 ft |
| Max Solids | 0.25" |
| Impeller | Stainless Steel, Enclosed Multi-Vane |
| Body | Cast Iron |
