1-1/2" NPT Cornell 10HP Cast Iron Water Pump, Single phase, 20-255 GPM, 3600 RPM
$4,859.00

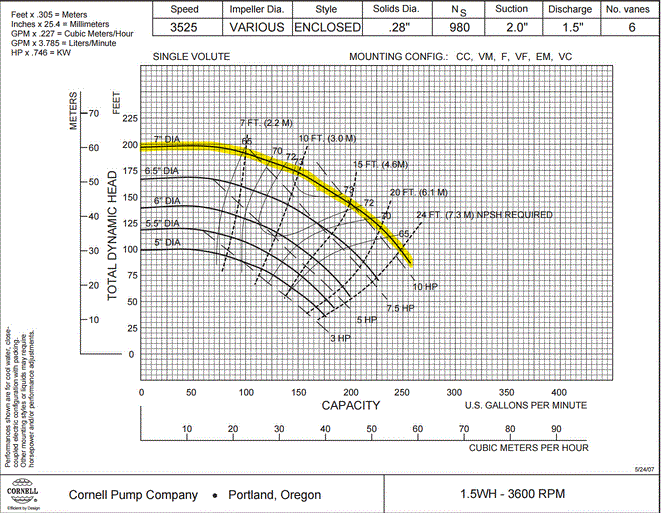

| Flow | 20 - 255 GPM |
|---|---|
| Discharge | 1.5" NPT |
| Motor Rating | 10 HP |
| Max Speed | 3600 RPM |
| Solids Handling | 0.28" (7.1mm) |
| Max Pressure | 175 PSID |
| Shut-off Head | 197' / 85 PSID |
| B.E.P. Head | 165' / 71 PSID |
| B.E.P. Flow | 165 GPM |
| B.E.P. Efficiency | 73% |
NOT SELF PRIMING
Availability:
In stock
Only 1 left
SKU
1.5WH-10HP

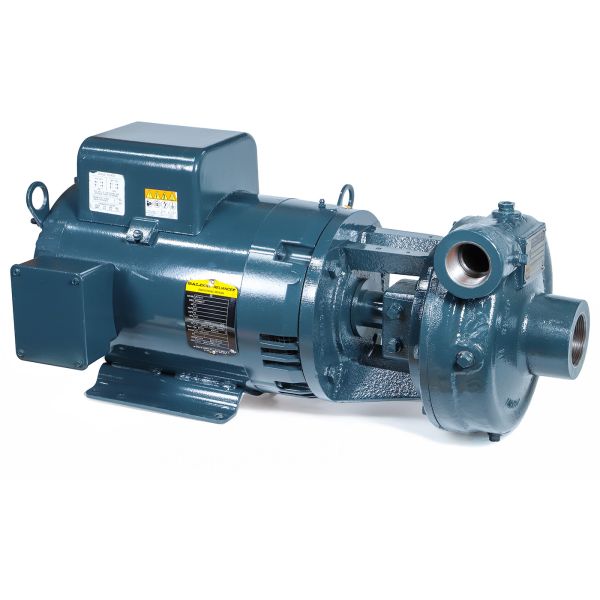

The Cornell 1.5WH-CC is a high-performance pump built for demanding applications across agriculture, industry, mining, municipal, food, oil & gas, refrigeration, and rental markets. Engineered with Cornell’s durability, it combines rugged construction with superior hydraulic efficiency, ensuring reliable operation and low life-cycle costs. With a 1.5” discharge, the pump delivers flows from 20 GPM up to 255 GPM at heads up to 197 feet, making it a versatile solution for a wide range of liquid handling needs. Its enclosed multi-vane impeller, oversized shaft, and tangential single volute design provide long service life with smooth performance.
Key Features & Benefits
- High Efficiency – Up to 73% best efficiency point, lowering energy costs.
- Proven Reliability – Oversized shaft and replaceable wear parts extend pump life.
- Low Maintenance – Back pull-out design with replaceable suction wear ring and shaft sleeve.
- Enhanced Motor Protection – “Shower Curtain Shield” prevents bearing contamination.
- RunDry™ Option – Allows indefinite dry running without damage.
- Industry-Leading Warranty – Backed by Cornell’s two-year warranty.
| Materials List | |
|---|---|
| Parts | Cast Iron Bronze Fitted |
| Wear Ring | Bronze SAE 660 |
| Impeller | Cast Iron ASTM A48 CL30 |
| Volute | Cast Iron ASTM A48 CL30 |
| Shaft | Carbon Steel |
| Shaft Sleeve | Bronze SAE 660 |
| Backplate | Cast Iron ASTM A48 CL30 |
| Packing | Graphited Acrylic |
| Mechanical Seal | T-1, Buna-Carbon/Ceramic |
