4" H Disc Filter – 120 Mesh, 440 GPM | BALDR

was $766.51 Special Price $540.70

Highest-capacity BALDR disc filter for 4" flanged mainlines and pump station headers at up to 440 GPM. The 527 in² polypropylene disc stack delivers maximum in-depth filtration area for high-volume agricultural and commercial systems. Rated to 145 PSI. Accepts BD4100H cartridges in 40, 80, 120, or 150 mesh.

Connection	4" Flange
Flow Rate	440 GPM max
Filtration	120 Mesh (body includes 120 mesh cartridge)
Filtration Area	527 in²
Max Pressure	145 PSI
Max Temperature	140°F
Disc Material	Polypropylene
Replacement Cartridges	BD4100H-CART40, BD4100H-CART80, BD4100H-CART120, BD4100H-CART150

Availability: In stock

SKU

BD4100H

Need More?

Ships Same Day

Delivery time: 2-4 business days

Add to Wish List Add to Compare

Details

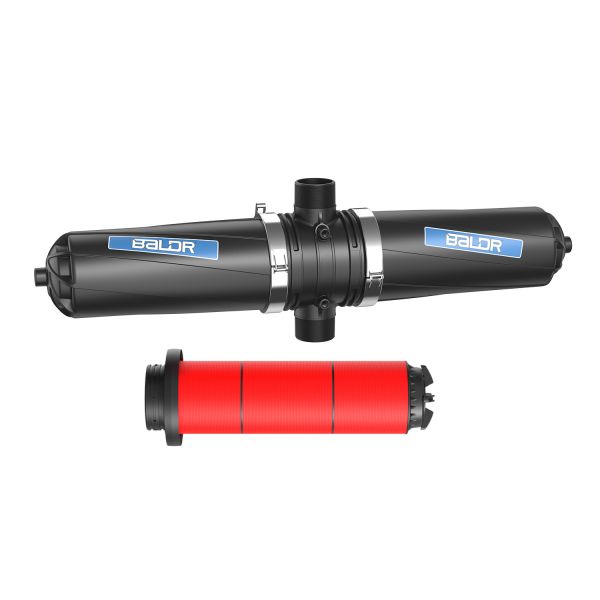

BD4100H – 4" H Disc Filter, 120 Mesh

The BD4100H is BALDR's largest disc filter, designed for 4" flanged pump station headers and high-volume agricultural mainlines handling up to 440 GPM. Its 527 in² polypropylene disc stack — the highest filtration area in the BALDR range — supports long service intervals even on turbid canal or surface water sources. Rated to 145 PSI for compatibility with booster pump systems.

Key Features

440 GPM capacity: Handles pump station output and high-volume distribution headers feeding large irrigation blocks.
527 in² filtration area: Maximizes disc surface area to extend cleaning cycles on high-sediment source water.
4" flanged connections: H-body flanged design integrates with pump station piping and heavy-duty mainline assemblies.
145 PSI rated: Handles booster pump discharge pressures without pressure reducers upstream.
Four mesh options: BD4100H-CART40 (coarse pre-filtration), BD4100H-CART80 (medium), BD4100H-CART120 (drip standard), BD4100H-CART150 (micro-irrigation fine).

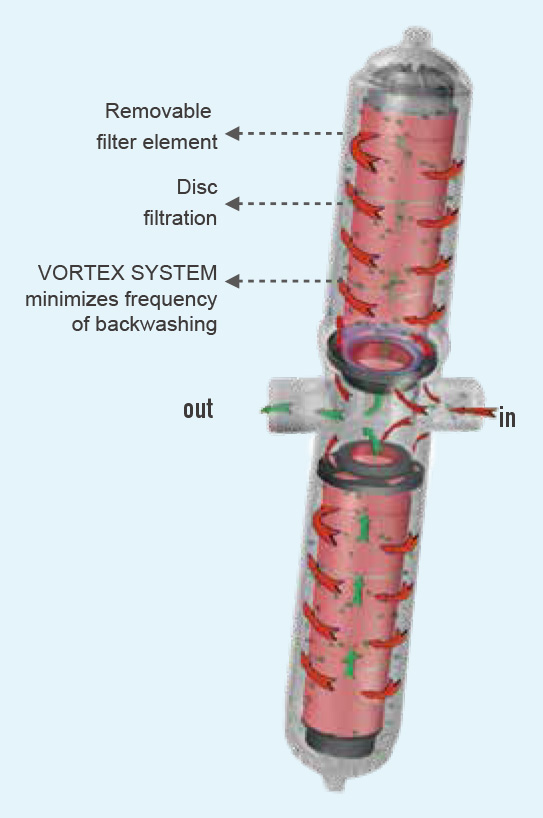

In-depth disc filtration: Diagonal cross-groove polypropylene discs trap particles throughout the full stack depth for consistent downstream protection.
