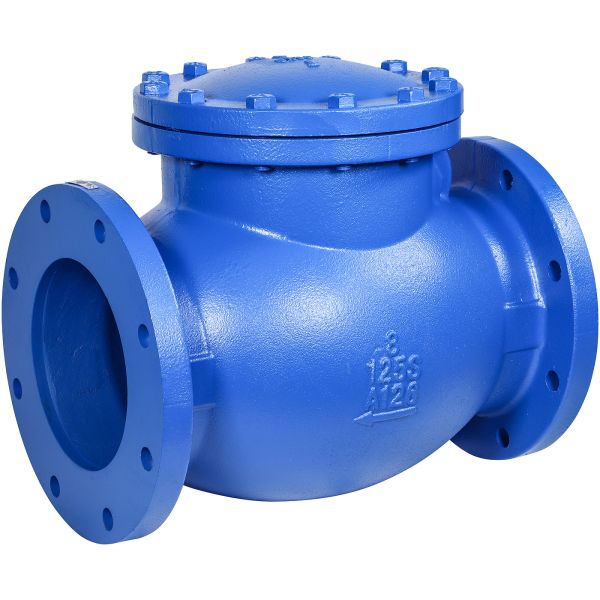

8" Cast Iron Swing Check Valve - Flanged - Bronze Metal Seated
was
$1,494.92
Special Price
$1,386.13
8" cast iron flanged swing check valve with bronze metal seat. A hinged disc swings open with forward flow and closes by gravity when flow stops or reverses, preventing backflow. The bronze metal seat provides a durable, long-lasting seal suitable for water, oil, and steam applications. ANSI 125 flanged connections. MSS SP-71 design standard. Rated to 200 PSI.
| Size | 8" |
|---|---|
| Design Standard | MSS SP-71 |
| Body Material | Cast Iron |
| Seat | Bronze (Metal) |
| Connections | Flanged / ANSI 125 |
| Pressure Rating | 200 PSI |
Availability:
In stock
Only 10 left
SKU
VK-SWC-308
Ships Same Day (Pallet)
All pallet orders placed by 11 AM local warehouse time will ship the same day. Some exclusions apply. Delivery time may increase if item isn't available in closest warehouse.
Delivery time: 2-5 business days
8" Cast Iron Swing Check Valve - Metal Seated
Features:
- Suitable for Water, Oil & Steam
- Bronze Metal Seated
- Flanges Conform to ANSI B16.1
Material:
- Body: Cast Iron
- Cover: Cast Iron
- Disc: Cast Iron
- Shaft: Stainless Steel SS304
- Body Seat Ring: Bronze B62
- Disc Seat Ring: Bronze B62
- Gasket: Graphite
Download Specification Sheet
Dimensions - Inches
| Size | L | D | D1 | B | n-d | H |
|---|---|---|---|---|---|---|
| 3" | 9.5 | 7.5 | 6 | 0.8 | 4-19 (3/4") | 5.6 |
| 4" | 11.5 | 9 | 7.5 | 0.9 | 8-19 (3/4") | 6.4 |
| 6" | 14 | 11 | 9.5 | 1 | 8-22 (7/8") | 8.3 |
| 8" | 19.5 | 13.5 | 11.8 | 1.1 | 8-22 (7/8") | 10.6 |
Dimensions - Millimeters
| Size | L | D | D1 | B | n-d | H |
|---|---|---|---|---|---|---|
| 3" | 241.3 | 190 | 152.5 | 19 | 4-19 (3/4") | 141 |
| 4" | 292.1 | 228.6 | 190.5 | 23.8 | 8-19 (3/4") | 162 |
| 6" | 355.6 | 279.4 | 241.3 | 25.4 | 8-22 (7/8") | 211 |
| 8" | 495.3 | 343 | 298.5 | 28.6 | 8-22 (7/8") | 270 |
