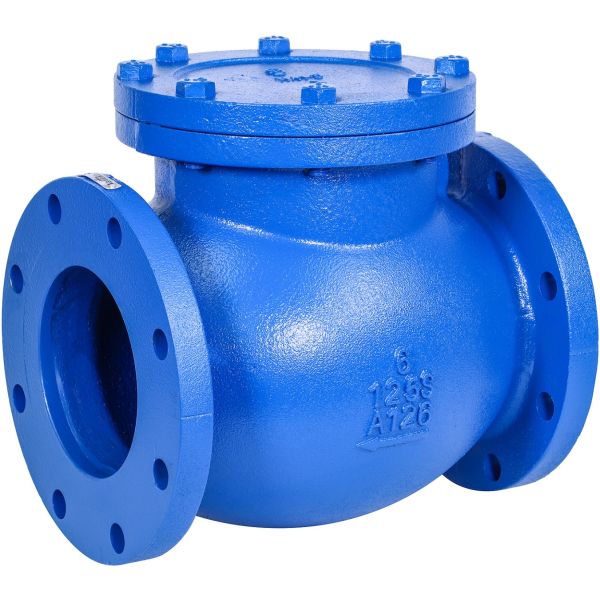

6" Cast Iron Swing Check Valve - Metal Seated
was
$1,192.62
Special Price
$876.84
Cast iron swing check valve with cast bronze seat.
| Size | 6" |
|---|---|
| Design Standard | MSS SP-71 |
| Connections | Flanged / ANSI 125 |
| Pressure Rating | 200 PSI @ -20° to 150° F 125 PSI @ 450° F |
| Length (End to End) | 14" |
| Weight | 141 lbs |
Availability:
In stock
SKU
VK-SWC-306
Ships Same Day
All orders placed by 12 PM local warehouse time will ship the same day. Some exclusions apply. Delivery time may increase if item isn't available in closest warehouse.
Delivery time: 2-4 business days
6" Cast Iron Swing Check Valve - Metal Seated
Features:
- Suitable for Water, Oil & Steam
- Bronze Metal Seated
- Flanges Conform to ANSI B16.1
Material:
- Body: Cast Iron
- Cover: Cast Iron
- Disc: Cast Iron
- Shaft: Stainless Steel SS304
- Body Seat Ring: Bronze B62
- Disc Seat Ring: Bronze B62
- Gasket: Graphite
Download Specification Sheet
Dimensions - Inches
| Size | L | D | D1 | B | n-d | H |
|---|---|---|---|---|---|---|
| 3" | 9.5 | 7.5 | 6 | 0.8 | 4-19 (3/4") | 5.6 |
| 4" | 11.5 | 9 | 7.5 | 0.9 | 8-19 (3/4") | 6.4 |
| 6" | 14 | 11 | 9.5 | 1 | 8-22 (7/8") | 8.3 |
| 8" | 19.5 | 13.5 | 11.8 | 1.1 | 8-22 (7/8") | 10.6 |
Dimensions - Millimeters
| Size | L | D | D1 | B | n-d | H |
|---|---|---|---|---|---|---|
| 3" | 241.3 | 190 | 152.5 | 19 | 4-19 (3/4") | 141 |
| 4" | 292.1 | 228.6 | 190.5 | 23.8 | 8-19 (3/4") | 162 |
| 6" | 355.6 | 279.4 | 241.3 | 25.4 | 8-22 (7/8") | 211 |
| 8" | 495.3 | 343 | 298.5 | 28.6 | 8-22 (7/8") | 270 |
