4" Brass Gate Valve - Full Bore - FNPT
was
$312.37
Special Price
$167.86
4" brass full bore gate valve with female NPT connections on both ends. Full bore design provides unrestricted flow with minimal pressure drop when fully open. Multi-turn handwheel operation for precise flow regulation. Rated to 145 PSI.
Note: This product contains brass which does not meet federal and state requirements for drinking water. For non-potable irrigation use only.
| Size | 4" |
|---|---|
| Connections | 4" FNPT x 4" FNPT |
| Bore Type | Full Bore |
| Max Pressure | 145 PSI |
| Material | Brass |
| Length (End to End) | 4.53" |
Availability:
In stock
SKU
RKGV4
Ships Same Day
All orders placed by 12 PM local warehouse time will ship the same day. Some exclusions apply. Delivery time may increase if item isn't available in closest warehouse.
Delivery time: 2-4 business days
4" Brass Gate Valve
- Product contains brass which does not meet federal and state requirements for drinking water.
Download Specification Sheet

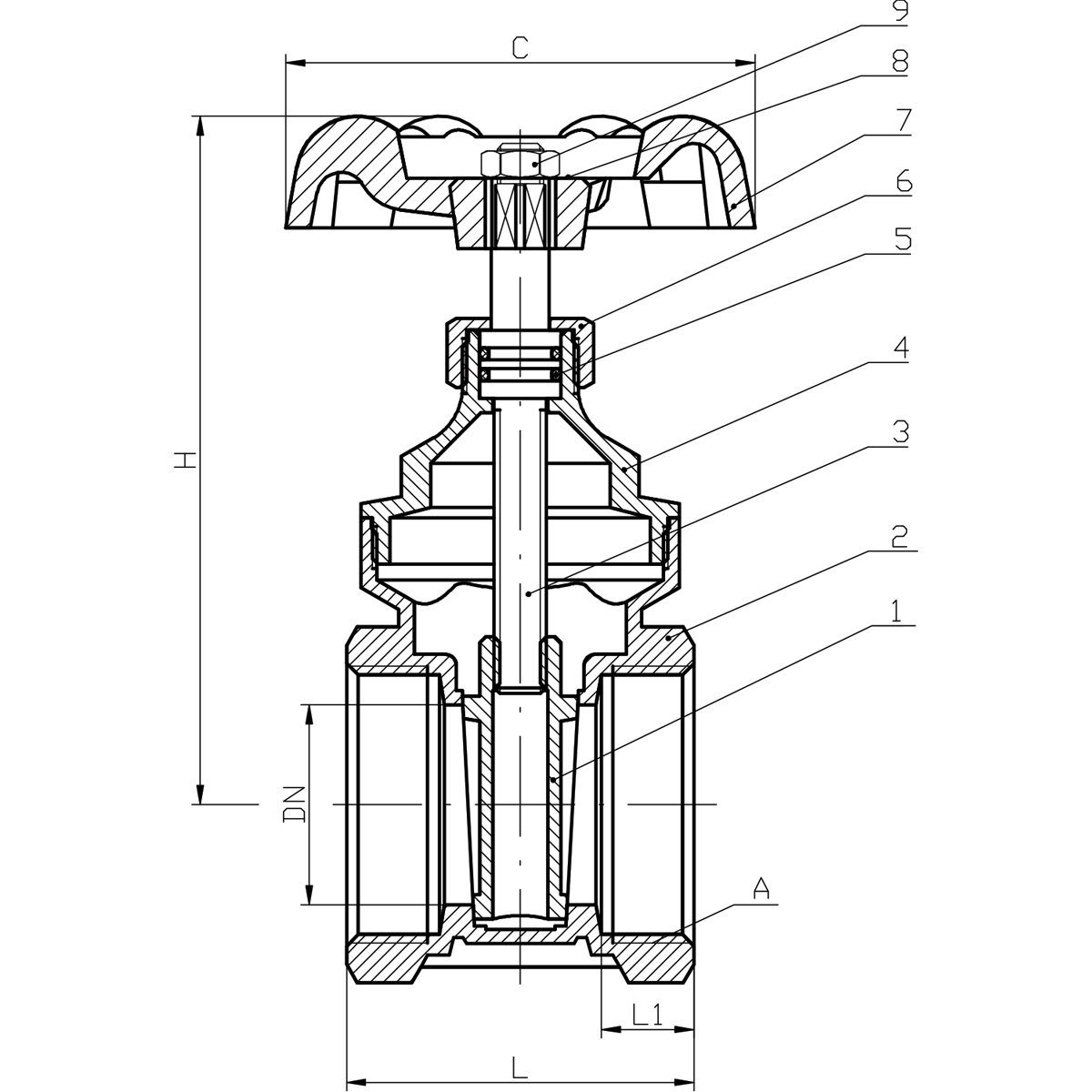

Dimensions - Inches
| Size | DN | H | L1 | L | C |
|---|---|---|---|---|---|
| 2" | 1.5 | 4.8 | 0.7 | 2.7 | 3.4 |
| 3" | 2.5 | 8.2 | 0.9 | 3.6 | 5.1 |
| 4" | 3.4 | 9.3 | 1.1 | 4.5 | 5.1 |
Dimensions - Millimeters
| Size | DN | H | L1 | L | C |
|---|---|---|---|---|---|
| 2" | 38 | 120 | 18 | 69 | 85 |
| 3" | 64 | 208 | 22 | 92 | 129 |
| 4" | 86 | 237 | 28 | 115 | 129 |
