3" Aluminum Continuous Air Release & Vacuum Relief Vent – Triple Action FNPT

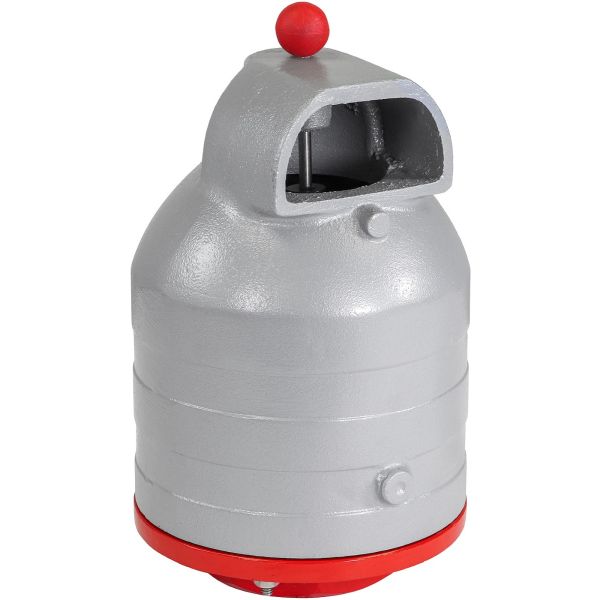

RKARVC-300 – 3" Aluminum Continuous Air Release & Vacuum Relief Vent

The RKARVC-300 is a 3" triple-action aluminum air vent built for larger commercial irrigation mainlines where both high-volume air evacuation and continuous air release are needed. In addition to expelling trapped air during startup and admitting air during shutdown, it provides continuous air release during normal system operation — automatically venting the small air pockets that accumulate at high points while the system is pressurized.

Key Features & Benefits

• Triple-action operation — combines large-volume air expulsion, vacuum relief, and continuous air release in one valve
• Continuous air release during operation — automatically vents small air pockets that accumulate at pipeline high points, maintaining full line capacity and accurate flow meter readings
• 3" FNPT connection — sized for larger mainlines handling higher flow volumes
• Vacuum protection — admits air during system shutdown to prevent pipeline collapse
• Cast aluminum body — lightweight and corrosion-resistant for long service life in outdoor agricultural environments
• 100 PSI maximum pressure rating — suitable for typical commercial irrigation mainline pressures

Simple vs. Continuous Air Vents

Simple-action air vents only operate during startup (air expulsion) and shutdown (vacuum relief). Continuous air vents add a third function: they release small air bubbles that dissolve out of water and collect at high points during normal operation. On larger mainlines, accumulated air can significantly reduce flow capacity and cause pressure fluctuations — a continuous air vent solves these problems.

Materials & Construction

• Body: Aluminum
