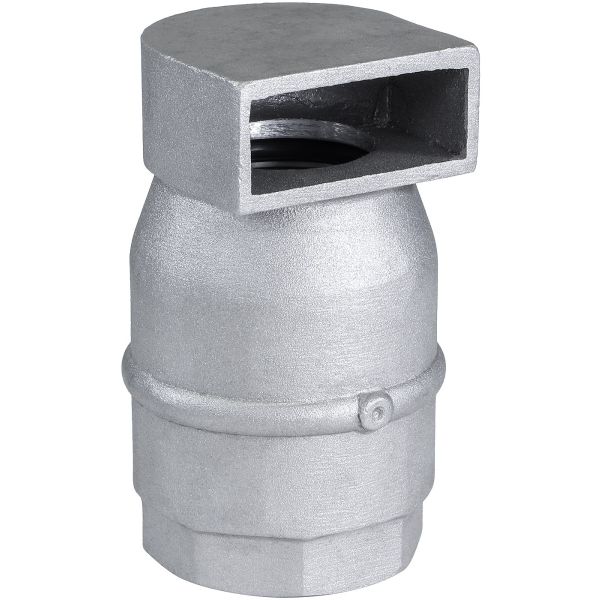

3" Aluminum Air Release & Vacuum Relief Vent – Simple Action FNPT
was
$104.13
Special Price
$59.83
3" simple-action aluminum air release and vacuum relief vent — designed for larger commercial irrigation mainlines where rapid air expulsion is critical. Automatically expels trapped air during system startup and admits air during shutdown to prevent vacuum damage. Cast aluminum body is lightweight and corrosion-resistant. Rated to 100 PSI with a 7 PSI sealing pressure.
| Size | 3" |
|---|---|
| Connection | FNPT |
| Valve Action | Air Expulsion & Admission |
| Max Pressure | 100 PSI |
| Sealing Pressure | 7 PSI |
Availability:
In stock
SKU
RKARV-300
Ships Same Day
All orders placed by 12 PM local warehouse time will ship the same day. Some exclusions apply. Delivery time may increase if item isn't available in closest warehouse.
Delivery time: 2-4 business days
RKARV-300 – 3" Aluminum Air Release & Vacuum Relief Vent
The RKARV-300 is a 3" simple-action aluminum air vent designed for larger commercial irrigation mainlines where high-volume air expulsion is essential. Its 2.6" clear opening diameter allows rapid air evacuation during system startup, and it automatically admits air during shutdown to prevent vacuum-induced pipe collapse.
Key Features & Benefits
- Dual-function operation — expels air during filling and admits air during drainage to prevent vacuum collapse
- 2.6" clear opening diameter — large orifice handles high air volumes for faster startup on large-diameter mainlines
- Cast aluminum body — lighter than steel alternatives for easier mounting at pipeline high points
- Corrosion-resistant construction — withstands outdoor agricultural environments season after season
- Synthetic rubber seal — ensures positive sealing even at low head applications (7 PSI sealing pressure)
- Simple, reliable design — no complex moving parts means trouble-free performance with minimal maintenance
Why Air Vents Matter
Trapped air in irrigation pipelines causes reduced flow, pressure surges (water hammer), inaccurate flow meter readings, and potential pipe damage. On larger mainlines, air pockets can be especially problematic. Install air vents at all high points and at the end of lateral runs to ensure efficient, reliable system operation.
Materials & Construction
- Body: Aluminum
Download Specification Sheet
Dimensions - Inches
| Size | Nominal | Clear Opening Diameter | Height | Width | Weight |
|---|---|---|---|---|---|
| 1" | 1 | 0.7 | 4.2 | 2.2 | 0.55 lbs |
| 11/2" | 1.5 | 1.2 | 4.9 | 3.3 | 1.16 lbs |
| 2" | 2 | 1.9 | 5.8 | 3.4 | 1.65 lbs |
| 3" | 3 | 2.6 | 7.9 | 4.9 | 3.63 lbs |
| 4" | 4 | 3.4 | 9.8 | 7.1 | 6.72 lbs |
Dimensions - Millimeters
| Size | Nominal | Clear Opening Diameter | Height | Width | Weight |
|---|---|---|---|---|---|
| 1" | 25.4 | 17 | 106.5 | 55 | 0.55 lbs |
| 11/2" | 38.1 | 29.5 | 123.5 | 82.5 | 1.16 lbs |
| 2" | 50.8 | 48 | 145.5 | 88 | 1.65 lbs |
| 3" | 76.2 | 64.5 | 200 | 124 | 3.63 lbs |
| 4" | 101.6 | 87 | 247.5 | 180.5 | 6.72 lbs |
