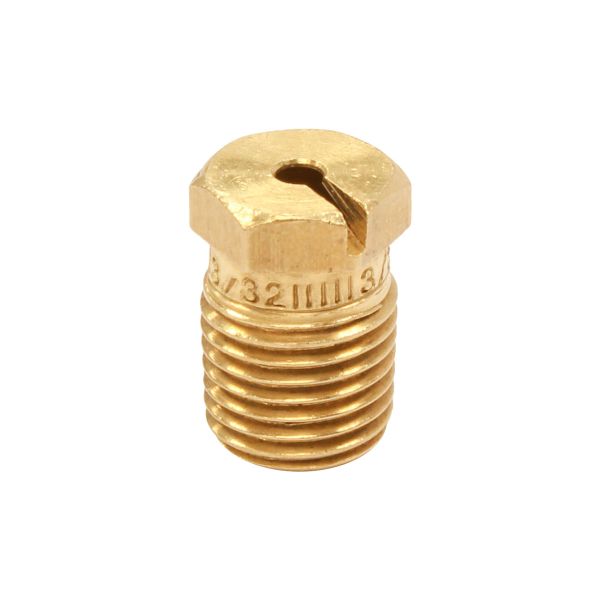

RS-3/32 Brass Secondary Nozzle 3/32" – For 3/4" Impact Head
$0.75
Replacement brass secondary nozzle sized 3/32" for 3/4" brass impact sprinkler heads (RK-30 series, RK-32, RK-35). The secondary nozzle mounts behind the main stream to irrigate the close-in area beneath the full-radius arc, eliminating dry zones near the riser. This size (3/32"): smallest — minimal close-in flow, tightest inner coverage ring. Pair with a primary nozzle (RK- series) or use the RP-1/8 plug if no secondary coverage is needed.
| Nozzle Size | 3/32" |
|---|---|
| Type | Secondary (close-in coverage) |
| Compatible Heads | 3/4" brass impact — RK-30 series, RK-32, RK-35 |
| Material | Brass |
Availability:
In stock
SKU
RS-3/32
Ships Same Day
All orders placed by 12 PM local warehouse time will ship the same day. Some exclusions apply. Delivery time may increase if item isn't available in closest warehouse.
Delivery time: 2-4 business days
RS-3/32 – 3/32" Brass Secondary Nozzle for 3/4" Impact Sprinkler Heads
The RS-3/32 is a 3/32" brass secondary nozzle for 3/4" brass impact sprinkler heads including the RK-30 series, RK-32, and RK-35. The secondary nozzle occupies the port behind the main stream and directs water into the inner coverage zone — the area between the riser and the main stream's landing radius — which the primary nozzle alone does not reach. Selecting the right secondary nozzle size allows irrigation managers to balance close-in and far-field application rates for uniform coverage across the full wetted area.
Key Features and Benefits
- Size 3/32" — Smallest — minimal close-in flow, tightest inner coverage ring. Select based on desired inner-zone application rate and spacing.
- Eliminates dry inner zones — fills the close-in area that the primary nozzle's arc does not cover, improving uniformity across the full wetted diameter.
- Brass construction — durable, corrosion-resistant for continuous agricultural use.
- Works with the full primary nozzle range — pair any RS- secondary with any RK- primary to tune both inner and outer coverage independently.
- If no secondary is needed — use the RP-1/8 plug to seal the secondary port instead.
Compatibility
Fits 3/4" brass impact heads: RK-30, RK-30LA, RK-30PC, RK-32, RK-35, and related variants. Not for 1/2" or 1" heads.
