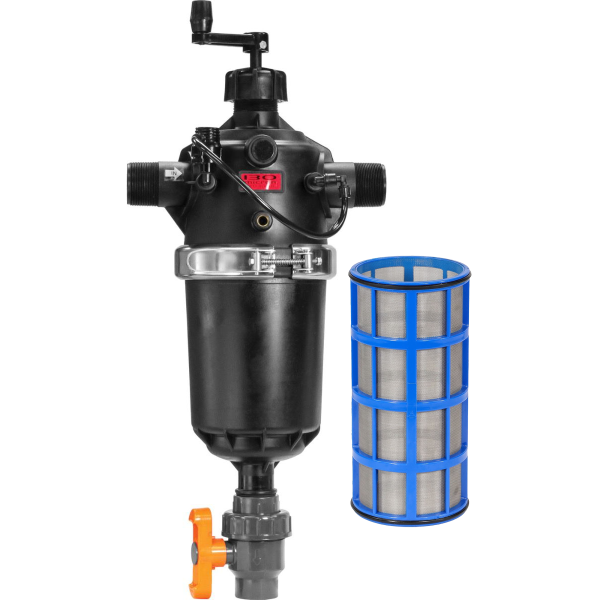

IrrigationKing 2" Semi-Automatic T Screen Filter – 120 Mesh, 110 GPM
was
$543.37
Special Price
$320.35
The RKTS225NSA is a 2" semi-automatic inline screen filter with suction nozzle self-cleaning and a pressure differential indicator. Designed for commercial irrigation mainlines where manual filter cleaning is impractical during peak operation. Rated to 110 PSI.
| Connection Size | 2" MNPT |
|---|---|
| Filter Style | Semi-Automatic T-Style |
| Screen Mesh | 120 Mesh |
| Nominal Flow Rate | 110 GPM |
| Operating Flow Range | 80–120 GPM |
| Max Operating Pressure | 110 PSI |
| Filtration Area | 86.0 in² |
| Cleaning Method | Suction Nozzle (Semi-Auto) |
| Pressure Indicator | Differential Pressure Indicator |
| Body Material | Polypropylene |
| Screen Material | Stainless Steel |
Availability:
In stock
SKU
RKTS225NSA
Ships Same Day
All orders placed by 12 PM local warehouse time will ship the same day. Some exclusions apply. Delivery time may increase if item isn't available in closest warehouse.
Delivery time: 2-4 business days
RKTS225NSA – 2" Semi-Automatic T Screen Filter, 120 Mesh
The RKTS225NSA is a 2" semi-automatic inline screen filter designed for commercial irrigation systems where frequent manual maintenance is not feasible. The suction nozzle cleaning mechanism and built-in pressure differential indicator work together to alert the operator when the screen requires flushing, then purge accumulated debris through the flush outlet. The 120 mesh stainless steel screen provides drip tape, micro-sprinkler, and emitter protection (125 micron openings) across a 86.0 in² filtration area. Rated to 110 PSI.
Key Features and Benefits
- Suction Nozzle Self-Cleaning – Reduces labor and downtime by flushing accumulated debris from the screen without full system shutdown.
- Pressure Differential Indicator – Visually signals when the screen is approaching blockage so operators can initiate flushing at the right time, not on a fixed calendar schedule.
- 120 Mesh Stainless Steel Screen – Suited for drip tape, micro-sprinkler, and emitter protection (125 micron openings), protecting downstream emitters and nozzles.
- 86.0 in² Filtration Area – Large screen surface extends intervals between cleaning cycles.
- 110 GPM nom (80–120 GPM) – Sized for 2" commercial mainlines.
- 110 PSI Pressure Rating – Suitable for high-pressure mainline supply in farm and municipal irrigation networks.
- Replaceable Cartridge – Compatible with SEMIAUTO2-CART80, SEMIAUTO2-CART120, SEMIAUTO2-CART150.
Construction
Body: polypropylene. Screen: stainless steel mesh. Seals: EPDM O-rings. Connection: 2" MNPT. Cleaning: suction nozzle with manual flush valve.
Dimensions - Inches
| Size | L | H | H1 | H2 | H3 |
|---|---|---|---|---|---|
| 2" | 14 | 33.25 | 15.25 | 18 | 22.5 |
| 3" | 14 | 36.25 | 15.25 | 21 | 25.5 |
Dimensions - Millimeters
| Size | L | H | H1 | H2 | H3 |
|---|---|---|---|---|---|
| 2" | 356 | 845 | 387 | 457 | 572 |
| 3" | 356 | 921 | 387 | 533 | 648 |
Spare Parts Available:
- O-ring Top Crank Spindle (225NSA, 340NSA) 2PCS: RKNS-CRANKORING
- Differential assembly for semi auto filters.: RKNS-DIFF
- RKTS-CARTORING (TS230, TS340, TS350, TS225NSA, TS340NSA, RKTS490): RKTSCART-ORING
- 1-1/2" Single Union PVC Ball Valve FNPT: RK1BV15OT

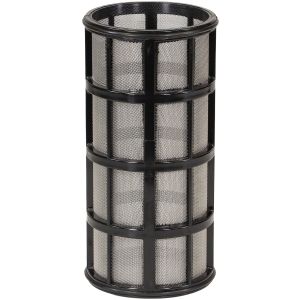

- 80 mesh - Screen Filter Cartridge (RKTS225NSA): SEMIAUTO2-CART80

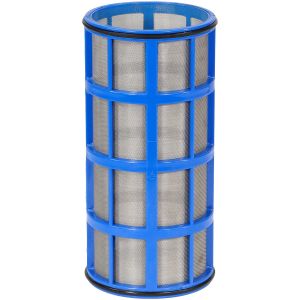

- 120 mesh - Screen Filter Cartridge (RKTS225NSA): SEMIAUTO2-CART120
- 150 mesh - Screen Filter Cartridge (RKTS225NSA): SEMIAUTO2-CART150
| Inlet / Outlet | 2" MNPT |
|---|---|
| Screen | 120 Mesh |
| Maximum Pressure | 145 PSI |
| Range of Flow Rate | 80-120 GPM |
| Nominal Flow Rate | 110 GPM |
| Filtration Surface Area | 86 in² |
| Cartridge Diameter | 4.7" (118mm) |
| Cartridge Length | 9.9" (252mm) |
