2" Automatic Screen Filter, 120 Mesh, 132 GPM, Turbo 1200, NPT/Flanged

Download Installation and Operation Manual

The new IrrigationKing "Turbo Series" self-cleaning filter offers high cleaning efficiency with non-stop irrigation while flushing. Its innovative and efficient cleaning mechanism delivers perfect cleaning, even in low pressure applications. It's easy to install and maintain and will save you time!

Features:

• Automatic flushing triggered by pressure differential, time or manual flushing feature.
• Equipped with highly sensitive pressure differential switch.
• Low pressure drop.
• Manufactured with high-quality engineering plastics for longevity and corrosion-free life.

Benefits:

• Slow and controlled spiral movement of the suction scanner provides excellent cleaning and reduce the wear and tear.
• Continuous uninterrupted irrigation during the flushing process.
• Can be operated on electric or solar power.
• Minimal water wasted during flushing process.

Filtration Process

• Water from the source enters through the inlet into the screen area and flow inside out and the filtered water gets discharged from the outlet.
• The dirt gradually builds upon the screen's (4) inner surface and forms a filter "cake" resulting in a gradual increase in pressure difference across the filter.
• A pressure differential (PD) switch senses the pressure difference across the filter and when it reaches a preset value (7 PSI), the self-cleaning process begins

Flushing Control System

• "Turbo" filter's control system comprises of a controller, a pressure differential switch, and a solenoid that controls the flush valve (5).
• The PD switch senses the pressure difference across the filter and when it reaches the preset value (7 PSI), it gives a signal to the controller to initiate the cleaning process.
• The controller first activates the flushing valve (5) then the motor (1) fora set duration of the flushing cycle.
• In addition to PD-based cleaning, the controller also offers manual and time-based cleaning.

Auto Cleaning Process

The self-cleaning cycle is initiated by any one of the following conditions:

• Signal from PD switch.
• Time interval set at the controller.
• Manual start; by pressing "MANUAL" button located on the controller.

When the flush valve opens to atmosphere it creates a strong "Vacuum" at the scanner nozzles (3), effectively removing accumulated "cake" from the screen.

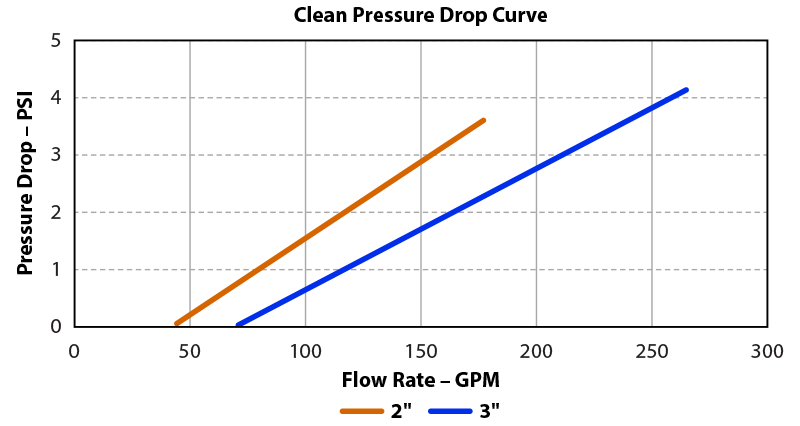

Head Loss

Dimensions - Inches

	Dimensions	Turbo 2"	Turbo 3"
A	Filter Height	47.25"	52"
B	Filter Connections	14.5"	14.5"
C	Main pipe center to flush valve end	28"	33"

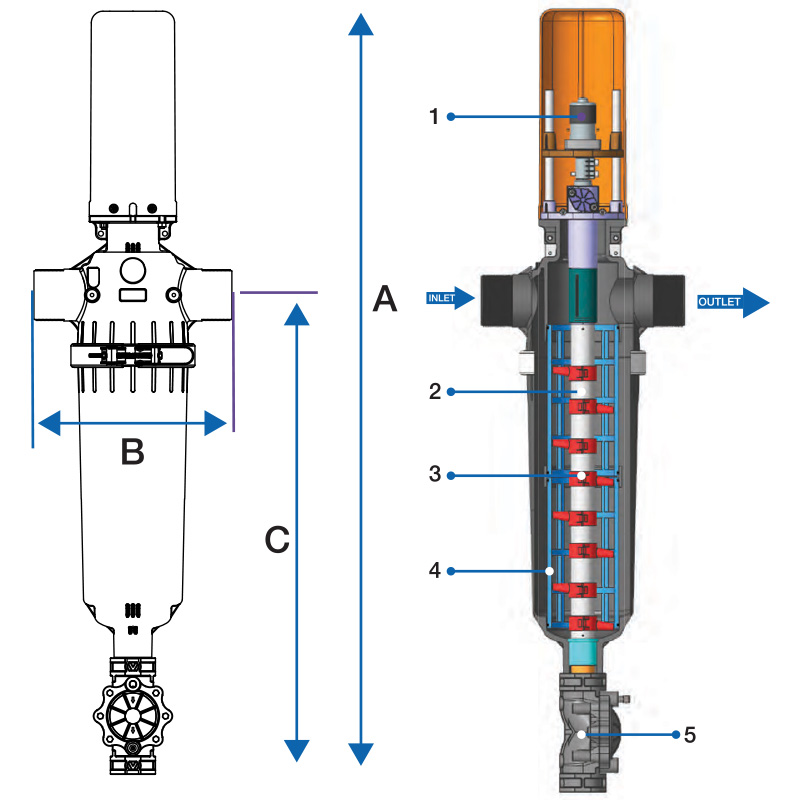

No.	Part Name
1	Motor
2	Suction Scanner Assembly
3	Suction Nozzles
4	Filter Screen Cartridge
5	Flushing Valve
