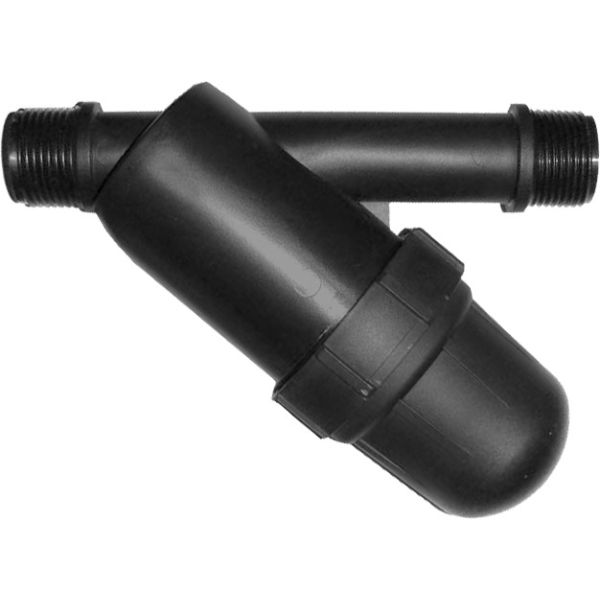

1" Y Disc Filter – 120 Mesh, 14 GPM, 1" MNPT
was
$55.51
Special Price
$17.27
1" Y-style disc filter for commercial drip, micro-irrigation, and inline filtration applications up to 14 GPM. The disc cartridge construction delivers reliable sediment removal with longer service intervals than comparable screen filters, protecting sensitive downstream emitters and nozzles.
| Connection | 1" MNPT |
|---|---|
| Mesh | 120 Mesh |
| Max Flow Rate | 14 GPM |
| Max Pressure | 85 PSI |
| Filtration Area | 14 in² |
| Filter Style | Y-Style |
Availability:
In stock
SKU
RKD100
Ships Same Day
All orders placed by 12 PM local warehouse time will ship the same day. Some exclusions apply. Delivery time may increase if item isn't available in closest warehouse.
Delivery time: 2-4 business days
RKD100 – 1" Y Disc Filter for Commercial Irrigation Lines
The RKD100 is a 1" Y-style disc filter designed for commercial irrigation mainlines, sub-mains, and zone inlets requiring clean water for drip tape, micro-sprinklers, or other precision emitters. Operating at up to 14 GPM and 85 PSI, the 120-mesh disc cartridge filters particles to approximately 130 microns — the standard level of protection for most drip and micro-irrigation systems.
Key Features and Benefits
- Y-Style body — in-line installation with accessible cartridge access for cleaning without removing the filter from the line
- 120-mesh disc filtration — stacked disc cartridge holds more contaminant volume than screen filters before flow restriction, reducing service frequency
- 1" MNPT connection — direct thread-in installation on standard 1" female threaded manifolds, valves, and fittings
- 85 PSI maximum pressure — covers typical agricultural and greenhouse operating ranges
- 14 in² filtration area — effective sediment capture capacity for the 14 GPM flow rating
Technical Specifications
| Discs | 120 Mesh |
|---|---|
| Inlet / Outlet | 1" MNPT |
| Maximum Pressure | 85 PSI |
| Maximum Flow Rate | 14 GPM |
| Filtration Surface Area | 14 in² |
