1-1/4" MNPT Senninger 80 Series Impact Sprinkler 25° Full Circle - #26-#40

8025HR-2-M - Senninger 80 Series 1-1/4" MNPT Impact Sprinkler - 25° Full Circle

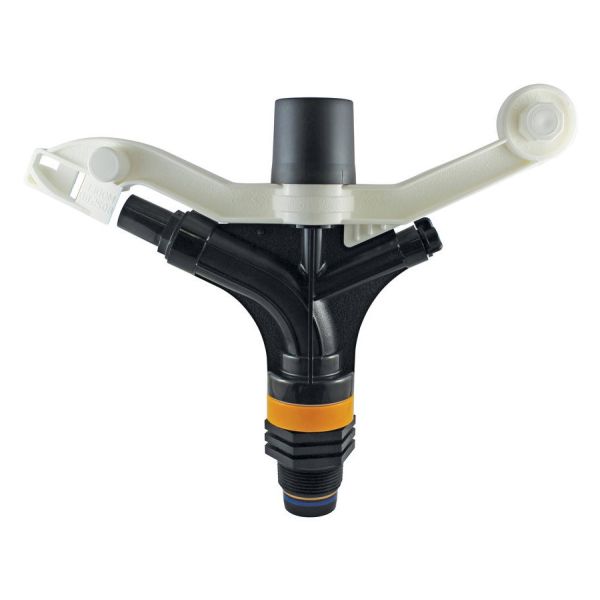

The Senninger 80 Series is a 1-1/4" MNPT plastic impact sprinkler designed for commercial agriculture. It delivers 39.4-103.2 GPM over a 71-98 ft. throw radius at 40-70 PSI. The largest Senninger impact - up to 103 GPM over a 98 ft. radius for large-area coverage.

Key Features and Benefits

• 39.4-103.2 GPM flow range - Nozzle sizes #26-#40 let you match output to your water supply and crop requirements
• 71-98 ft. throw radius - Covers large areas efficiently from each sprinkler position
• 25° trajectory - Balanced angle provides good distance while managing wind drift
• Full Circle operation - Full 360° coverage for open-field applications
• Threaded nozzles - Secure connection with stream straightening vane for maximum throw
• Built-in hex wrench - Maintenance and adjustment without carrying extra tools
• Insect-proof design - Prevents insects from nesting inside the sprinkler body
• Heavy-duty plastic construction - Outlasts brass at lower cost; corrosion-resistant
• Made in the USA - Senninger quality and manufacturing

Materials

• Body: Heavy-Duty Plastic
• Spring: Stainless Steel
• Pin: Stainless Steel

Nozzle Performance Chart
