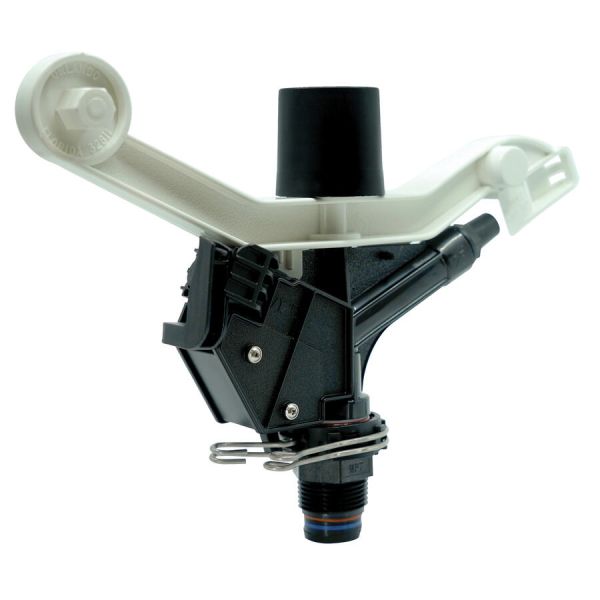

1" MNPT Senninger 70 Series Part Circle Impact Sprinkler 25° - #14-#24
From $80.56
To $82.46 was $83.27
Senninger 70 Series 1" Part Circle MNPT impact sprinkler for commercial agriculture. 9.2-31.0 GPM, 56-82 ft. radius, 40-70 PSI. 1" connection for high-flow mainline systems. Outlasts brass sprinklers at lower cost. Threaded nozzles with integrated stream straightening vane. Built-in hex wrench. Insect-proof design. Made in the USA.
| Connection | 1" MNPT |
|---|---|
| Flow | 9.2-31.0 GPM |
| Throw Radius | 56-82 ft. |
| Operating Pressure | 40-70 PSI |
| Trajectory Angle | 25° |
| Coverage Pattern | Part Circle |
| Drive Mechanism | Spring Arm Impact |
| Nozzle Range | #14-#24 |
See Nozzle Performance Chart
In stock
SKU
7125PC14M
Ships Same Day
All orders placed by 12 PM local warehouse time will ship the same day. Some exclusions apply. Delivery time may increase if item isn't available in closest warehouse.
Delivery time: 2-4 business days
7125PC14M - Senninger 70 Series 1" Part Circle MNPT Impact Sprinkler - 25° Full Circle
The Senninger 70 Series is a 1" Part Circle MNPT plastic impact sprinkler designed for commercial agriculture. It delivers 9.2-31.0 GPM over a 56-82 ft. throw radius at 40-70 PSI. 1" connection for high-flow mainline systems. Outlasts brass sprinklers at lower cost.
Key Features and Benefits
- 9.2-31.0 GPM flow range - Nozzle sizes #14-#24 let you match output to your water supply and crop requirements
- 56-82 ft. throw radius - Covers large areas efficiently from each sprinkler position
- 25° trajectory - Balanced angle provides good distance while managing wind drift
- Part Circle operation - Full 360° coverage for open-field applications, with the option of limiting to a partial circle for corners and edges.
- Threaded nozzles - Secure connection with stream straightening vane for maximum throw
- Built-in hex wrench - Maintenance and adjustment without carrying extra tools
- Insect-proof design - Prevents insects from nesting inside the sprinkler body
- Heavy-duty plastic construction - Outlasts brass at lower cost; corrosion-resistant
- Made in the USA - Senninger quality and manufacturing
Materials
- Body: Heavy-Duty Plastic
- Spring: Stainless Steel
- Pin: Stainless Steel

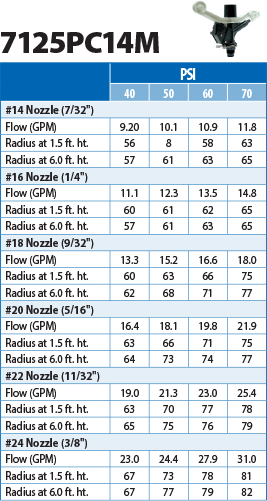

Nozzle Performance Chart
| Base | 1" MNPT |
|---|---|
| Flow | 9.2-31.0 GPM |
| Throw Radius | 56-82 ft. |
| Operating Pressure | 40-70 PSI |
| Trajectory Angle | 25° |
| Operation | Part Circle |
| Drive Mechanism | Spring Arm Impact |
