1" Brass Impact Sprinkler 23° - 9/32" x 1/8"

1-1/4

1-1/4" Part Circle Brass Impact Sprinkler 23° - 13/32" x 7/32"

1" Part Circle Brass Impact Sprinkler 23° - 9/32" x 1/8"

was $166.00 Special Price $75.94

For commercial agriculture. Flow: 13.5-29 GPM, Radius: 50-69 feet, Pressure: 35-70 PSI. Durable bronze body & arm. Heavy-duty brass nut & tube. Stainless steel spring & pin. Diffuser screw. Features excellent uniformity, long-lasting dependability, and is made for commercial agriculture.

Base1" MNPT
Flow13.5-29 GPM
Throw Radius50-69 ft.
Operating Pressure35-70 PSI
Trajectory Angle23°
OperationPart Circle
Drive MechanismSpring Arm Impact
Availability: In stock
SKU
RK-45

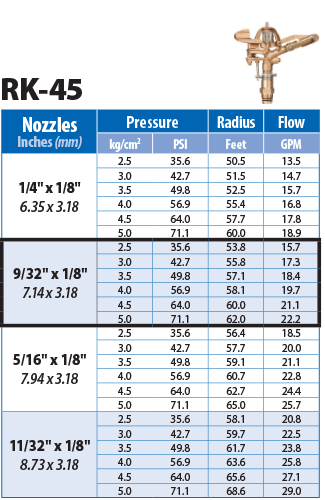

1" Part Circle Brass Impact Sprinkler 23° - 9/32" x 1/8"

Features:

  • Bronze material is highly resistant to impact
  • Strong design and heavy construction for long life
  • Robust spring to assure consistent and long lasting operation
  • Can operate in both full circle and part circle mode
  • Heavy-duty brass nut, tube & nozzles
  • Bearing assembly protected by cap for longevity
  • PU thrust pad for impact wear resistance
  • Recommended spacing up to 70 ft. (21m) for higher distribution uniformity

Material:

  • Body: Bronze
  • Arm: Bronze
  • Bearing: Brass
  • Spring: Stainless Steel
  • Pin: Stainless Steel
  • Nozzle(s): Brass
More Information
Base 1" MNPT
Flow 13.5-29 GPM
Throw Radius 50-69 ft.
Operating Pressure 35-70 PSI
Trajectory Angle 23°
Operation Part Circle
Drive Mechanism Spring Arm Impact
