1-1/4" Impact Rain Gun Sprinkler FNPT w/Nozzle Set - (10, 12, 14 mm) x 4 mm

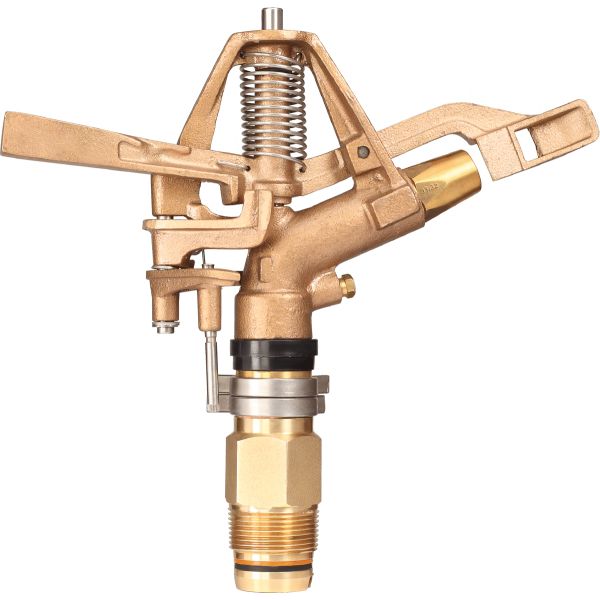

1-1/4" Part Circle Brass Impact Sprinkler 23° - 13/32" x 7/32"

For commercial agriculture. Flow: 36.7-114 GPM, Radius: 73.8-106 feet, Pressure: 50-85 PSI. Durable bronze body & arm. Heavy-duty brass nut & tube. Stainless steel spring & pin. Features excellent uniformity, long-lasting dependability, and is made for commercial agriculture.


Base1-1/4" MNPT
Flow36.7-114.2 GPM
Throw Radius73.8-106 ft.
Operating Pressure50-85 PSI
Trajectory Angle23°
OperationPart Circle
Drive MechanismSpring Arm Impact
was $163.77 Special Price $76.97
In stock

1-1/4" Part Circle Brass Impact Sprinkler 23° - 13/32" x 7/32"


  • Bronze material is highly resistant to impact
  • Strong design and heavy construction for long life
  • Robust spring to assure consistent and long lasting operation
  • Can operate in both full circle and part circle mode
  • Heavy-duty brass nut, tube & nozzles
  • Bearing assembly protected by cap for longevity
  • PU thrust pad for impact wear resistance
  • Recommended spacing up to 100 ft. (30m) for higher distribution uniformity


  • Body: Bronze
  • Arm: Bronze
  • Bearing: Brass
  • Spring: Stainless Steel
  • Pin: Stainless Steel
  • Nozzle(s): Brass
More Information
Base 1-1/4" MNPT
Flow 36.7-114.2 GPM
Throw Radius 73.8-106 ft.
Operating Pressure 50-85 PSI
Trajectory Angle 23°
Operation Part Circle
Drive Mechanism Spring Arm Impact
