1/2" MNPT Senninger 20 Series Impact Sprinkler 14° Full Circle - #6-#9

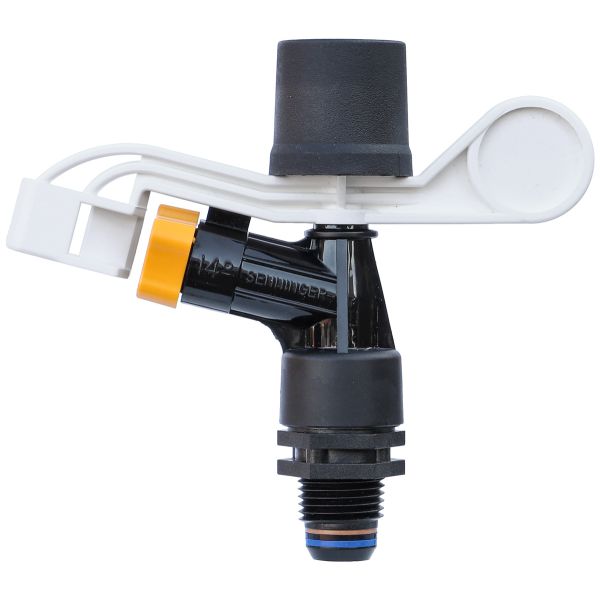

2014HS-1-12M - Senninger 20 Series 1/2" MNPT Impact Sprinkler - 14° Full Circle

The Senninger 20 Series is a 1/2" MNPT plastic impact sprinkler designed for commercial agriculture. It delivers 1.2-3.7 GPM over a 31-40.5 ft. throw radius at 25-50 PSI. Low 14° trajectory for under-canopy and windy conditions.

Key Features and Benefits

• 1.2-3.7 GPM flow range - Nozzle sizes #6-#9 let you match output to your water supply and crop requirements
• 31-40.5 ft. throw radius - Covers large areas efficiently from each sprinkler position
• 14° trajectory - Low angle minimizes wind drift and keeps water under canopy
• Full Circle operation - Full 360° coverage for open-field applications
• Hand-tight nozzles - Color-coded, tool-free nozzle changes in the field with integrated stream straightening vane
• Built-in hex wrench - Maintenance and adjustment without carrying extra tools
• Insect-proof design - Prevents insects from nesting inside the sprinkler body
• Heavy-duty plastic construction - Outlasts brass at lower cost; corrosion-resistant
• Made in the USA - Senninger quality and manufacturing

Materials

• Body: Heavy-Duty Plastic
• Spring: Stainless Steel
• Pin: Stainless Steel

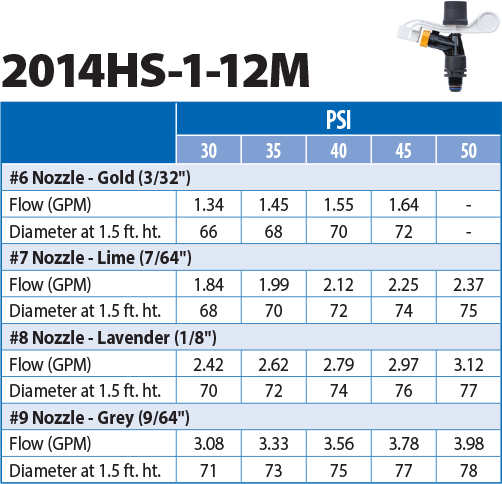

Nozzle Performance Chart
