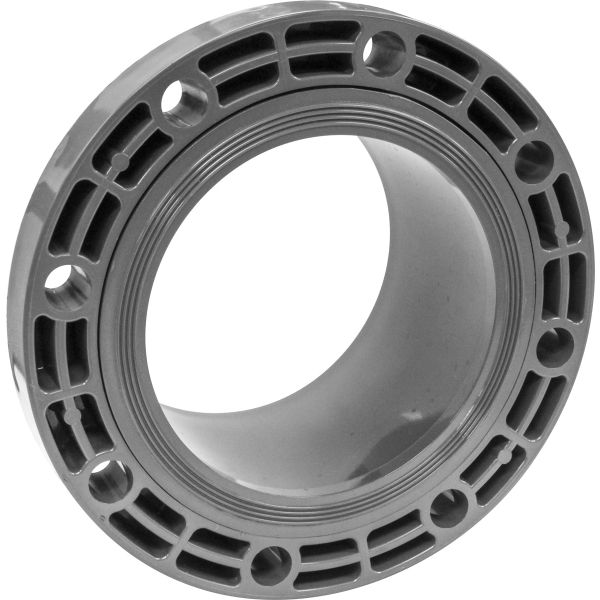

8" Schedule 80 PVC Van Stone Flange - Slip Connection - ANSI 150
$123.79
8" Schedule 80 PVC Van Stone flange with slip connection for joining PVC pipe to flanged valves, pumps, and equipment in agricultural and commercial irrigation systems. ANSI 150 bolt pattern for compatibility with standard flanged connections.
| Size | 8" |
|---|---|
| Schedule | 80 |
| Connection | Slip (Solvent Weld) |
| Bolt Pattern | ANSI 150 |
| Bolt Size Required | 3/4" |
| Torque Specification | 30-35 ft-lbs |
Availability:
In stock
SKU
854-080
Ships Same Day
All orders placed by 12 PM local warehouse time will ship the same day. Some exclusions apply. Delivery time may increase if item isn't available in closest warehouse.
Delivery time: 2-4 business days
854-080 - 8" Schedule 80 PVC Van Stone Flange - Slip Connection
This 8" Schedule 80 PVC Van Stone flange provides a reliable transition between PVC piping and flanged components such as butterfly valves, check valves, pumps, and filtration equipment. The two-piece Van Stone design allows the backup ring to rotate freely, making bolt hole alignment simple during installation.
Key Features and Benefits
- ANSI 150 bolt pattern - Matches standard flanged valves and equipment for universal compatibility
- Slip (solvent weld) connection - Creates a permanent, leak-free bond to Schedule 80 PVC pipe
- Schedule 80 rated - Thicker walls handle higher pressures than Schedule 40
- PVC construction - Resists corrosion, chemicals, and UV degradation for long service life
- Two-piece Van Stone design - Rotating backup ring simplifies bolt hole alignment during assembly
Installation Notes
- Requires 3/4" bolts, washers, and nuts (not included)
- Torque bolts to 30-35 ft-lbs
- Gasket not included - use a compatible neoprene or EPDM flange gasket
