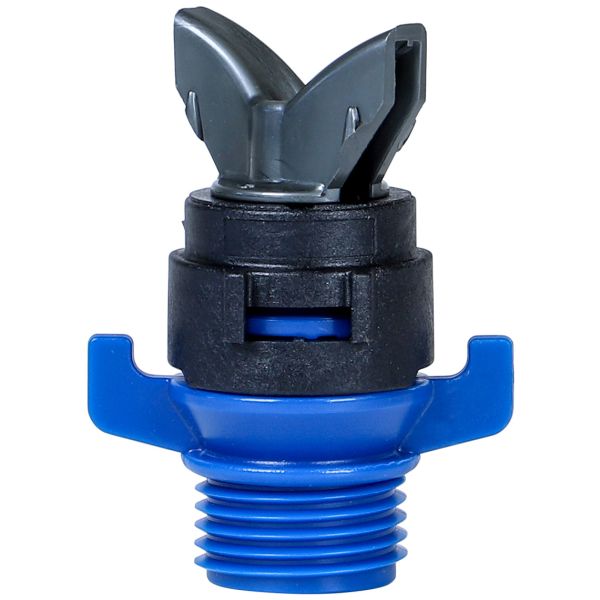

Aquator Rotary Mini-Sprinkler – 3.5 mm Blue Nozzle #9 (9/64") – Full Circle
$1.60
Aquator rotary mini-sprinkler with 3.5 mm blue nozzle — the largest nozzle in the Aquator series, delivering the highest application rates (2.18–3.43 GPM) over a 37.7–39.4 ft. wetted diameter at low pressures (14–36 PSI). Off-center cam-driven rotation eliminates dry patches and provides highly uniform coverage with minimal evaporative loss. Ideal for orchards, nurseries, and horticultural applications with higher water demands.
| Connection | 1/2" MNPT |
|---|---|
| Nozzle | 3.5 mm (9/64") Blue |
| Flow | 2.18–3.43 GPM |
| Wetted Diameter | 37.7–39.4 ft. |
| Operating Pressure | 14–36 PSI |
| Coverage Pattern | Full Circle |
See Nozzle Performance Chart
Availability:
In stock
SKU
RK-AQUATOR-3.5MM
Ships Same Day
All orders placed by 12 PM local warehouse time will ship the same day. Some exclusions apply. Delivery time may increase if item isn't available in closest warehouse.
Delivery time: 2-4 business days
RK-AQUATOR-3.5MM – Aquator Rotary Mini-Sprinkler with 3.5 mm Blue Nozzle
The Aquator sprinkler uses an innovative cam rotor that delivers eccentric (off-center) rotation, covering a large area with exceptional uniformity at low pressures. With the 3.5 mm blue nozzle — the largest in the Aquator line — it delivers 2.18–3.43 GPM over a 37.7–39.4 ft. wetted diameter, providing the highest application rate for crops or soils with greater water demands.
Key Features & Benefits
- Eccentric cam-driven rotation — off-center rotation creates an instantaneous, uniform application pattern that eliminates dry patches common with conventional spinners
- Extended wetted diameter (37.7–39.4 ft.) — covers significantly more area per head than standard mini-sprinklers, reducing the number of heads and fittings needed
- Highest flow in the Aquator series (2.18–3.43 GPM) — the 3.5 mm blue nozzle delivers the most water per head, ideal for sandy soils or high-demand crops
- Low-pressure operation (14–36 PSI) — reduces pumping energy costs while maintaining excellent distribution uniformity
- Low evaporative loss — fine droplets delivered close to the canopy minimize wind drift and evaporation compared to overhead impact sprinklers
- Self-cleaning mechanism — internal design helps flush sand and dirt particles to prevent clogging
- Bridgeless design — eliminates dry patches caused by structural bridges in conventional sprinkler heads
Ideal Applications
Overhead and under-tree irrigation for orchards, vineyards, nurseries, greenhouses, and horticultural crops. The higher flow rate makes this nozzle a good choice for sandy soils, high-demand crops, or wider spacing layouts. Fine water droplets ensure no impact on soil structure.
