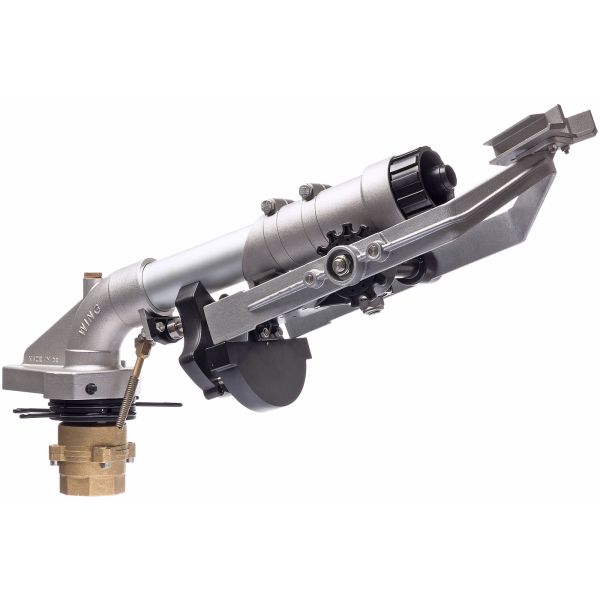

SIME Wing 2" FPT Part Circle Impact Sprinkler - 18° - w/Nozzles
$998.99
The SIME Wing is a 2" FPT part circle impact sprinkler for commercial agriculture. 34-252 GPM over a 72-171 ft. throw radius at 29-100 PSI.
| Connection | 2" FPT |
|---|---|
| Flow | 34-252 GPM |
| Throw Radius | 72-171 ft. |
| Operating Pressure | 29-100 PSI |
| Trajectory Angle | 18° |
| Coverage Pattern | Part Circle |
| Drive Mechanism | Double Arm Impact |
| Nozzle Set | 12, 14, 16, 18, 20 mm |
See Nozzle Performance Chart
Availability:
In stock
SKU
WING
- Buy 3 for $885.00 each and save 11%
- Buy 8 for $829.00 each and save 17%
Ships Same Day
All orders placed by 12 PM local warehouse time will ship the same day. Some exclusions apply. Delivery time may increase if item isn't available in closest warehouse.
Delivery time: 2-4 business days
WING - SIME Wing 2" FPT Part Circle Impact Sprinkler
The SIME Wing (WING) is a 2" FPT part circle impact sprinkler for commercial agriculture. Includes interchangeable nozzle set (12, 14, 16, 18, 20 mm). Slow reverse double arm gun designed specifically as a center pivot end gun.
Key Features and Benefits
- 34-252 GPM flow range - Multiple nozzle sizes match output to your water supply and crop requirements
- 72-171 ft. throw radius - Covers large areas efficiently from a single sprinkler position
- 29-100 PSI operating pressure - Wide pressure range accommodates varying system designs
- 18° trajectory - Low angle resists wind drift for improved distribution uniformity
- Part Circle operation - Adjustable arc directs water where it is needed
- Double Arm Impact - Proven, reliable mechanism for consistent rotation

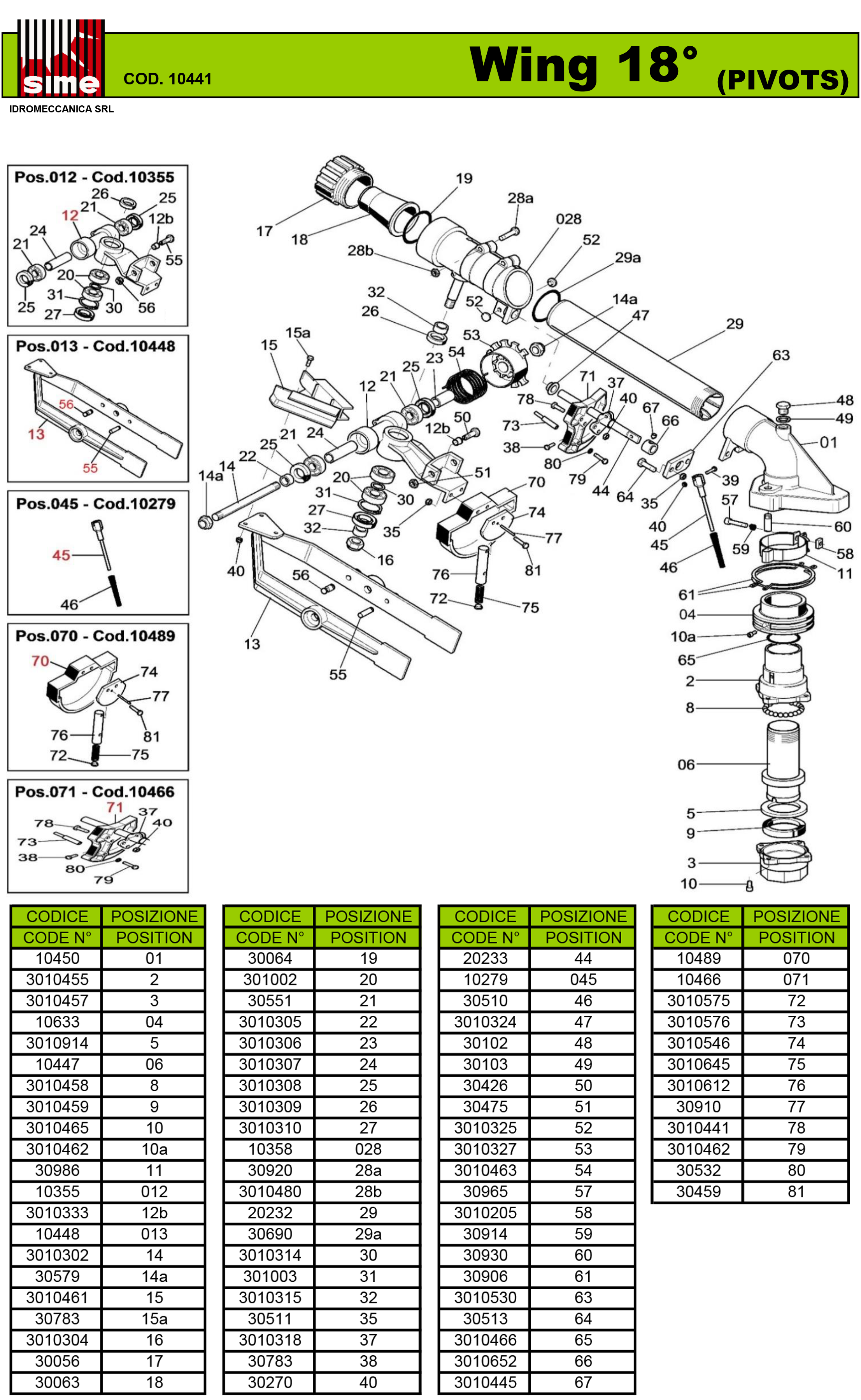

Download Replacement Parts + User Manual

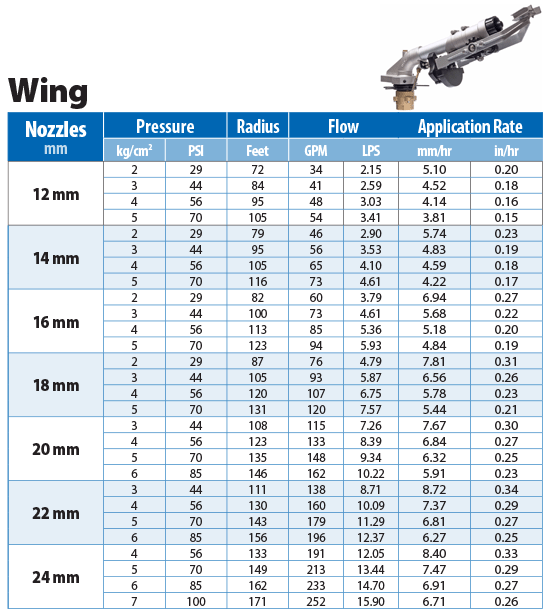

Nozzle Performance Chart
| Base | 2" FPT |
|---|---|
| Flow | 34-252 GPM |
| Throw Radius | 72-171 ft. |
| Operating Pressure | 29-100 PSI |
| Trajectory Angle | 18° |
| Operation | Part Circle |
| Drive Mechanism | Spring Arm Impact |
