SIME Funny 1" FNPT Part Circle Impact Sprinkler - 28° - w/Nozzles
$69.70
The SIME Funny is a 1" FNPT part circle impact sprinkler for commercial agriculture. 5.3-26.4 GPM over a 41-64 ft. throw radius at 22-59 PSI. Durable aluminum body with brass arm, stainless steel spring and pin. Diffuser screw for droplet adjustment.
DOES NOT WORK WITH A GARDEN HOSE
| Connection | 1" FNPT |
|---|---|
| Flow | 5.3-26.4 GPM |
| Throw Radius | 41-64 ft. |
| Operating Pressure | 22-59 PSI |
| Trajectory Angle | 28° |
| Coverage Pattern | Part Circle |
| Drive Mechanism | Spring Arm Impact |
| Nozzle Set | 6, 7 mm |
See Nozzle Performance Chart
Availability:
In stock
SKU
FUNNYR
- Buy 5 for $63.00 each and save 10%
- Buy 10 for $58.00 each and save 17%
Ships Same Day
All orders placed by 12 PM local warehouse time will ship the same day. Some exclusions apply. Delivery time may increase if item isn't available in closest warehouse.
Delivery time: 2-4 business days
FUNNYR - SIME Funny 1" FNPT Part Circle Impact Sprinkler
The SIME Funny (FUNNYR) is a 1" FNPT part circle impact sprinkler designed for commercial agriculture and irrigation applications. Includes interchangeable nozzle set (6, 7 mm). Durable aluminum body with brass arm, stainless steel spring and pin. Diffuser screw for droplet adjustment.
Key Features and Benefits
- 5.3-26.4 GPM flow range - Multiple nozzle sizes let you match output to your water supply and crop requirements
- 41-64 ft. throw radius - Covers large areas efficiently from a single sprinkler position
- 22-59 PSI operating pressure - Wide pressure range accommodates varying system designs
- 28° trajectory - Balanced angle provides good distance while managing wind drift
- Part Circle operation - Adjustable arc directs water where it is needed, avoiding roads and structures
- Spring arm impact drive - Proven, reliable mechanism for consistent rotation
- Durable construction - Aluminum body, brass arm

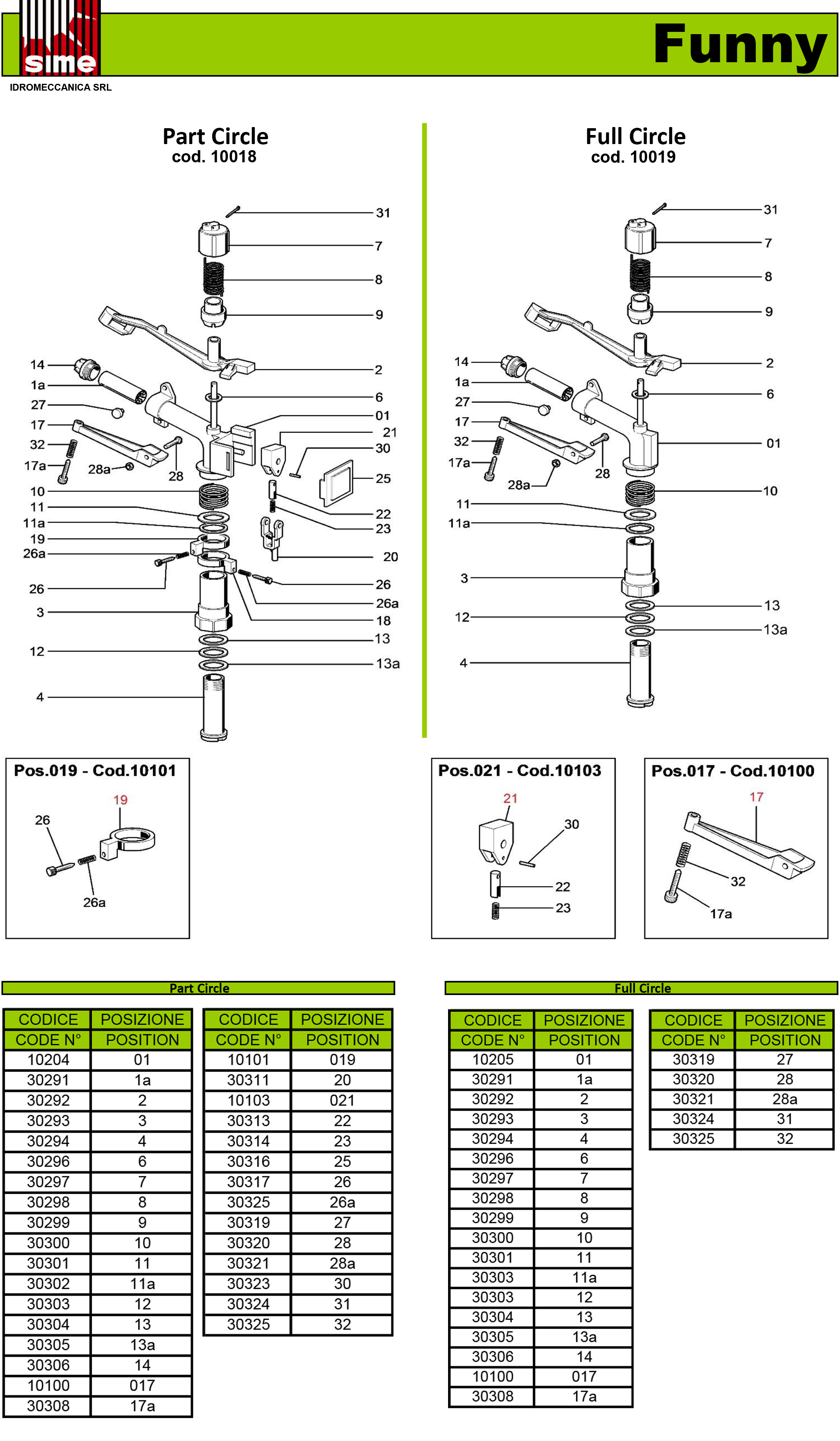

Download Replacement Parts + User Manual

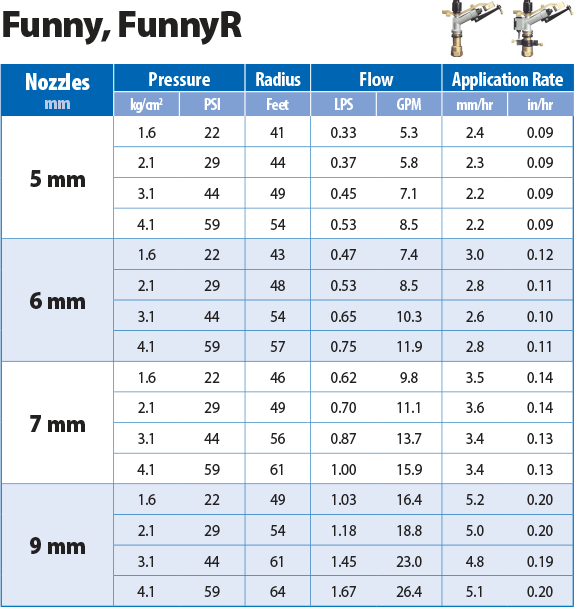

Nozzle Performance Chart
| Base | 1" FNPT |
|---|---|
| Flow | 5.3-26.4 GPM |
| Throw Radius | 41-64 Feet |
| Operating Pressure | 22-59 PSI |
| Trajectory Angle | 28 Degree |
| Operation | Part and Full Circle |
| Drive Mechanism | Impact |
