SIME Duplex 2" FNPT Full Circle Impact Sprinkler - 25° - w/Nozzles
$204.55
The SIME Duplex is a 2" FNPT full circle impact sprinkler for commercial agriculture. 42-220 GPM over a 65.6-152.6 ft. throw radius at 22-90 PSI.
| Connection | 2" FNPT |
|---|---|
| Flow | 42-220 GPM |
| Throw Radius | 65.6-152.6 ft. |
| Operating Pressure | 22-90 PSI |
| Trajectory Angle | 25° |
| Coverage Pattern | Full Circle |
| Drive Mechanism | Spring Arm Impact |
| Nozzle Set | 14, 16, 18, 20, 22 mm |
See Nozzle Performance Chart
Availability:
In stock
SKU
DUPLEX
- Buy 5 for $179.00 each and save 12%
- Buy 10 for $169.00 each and save 17%
Ships Same Day
All orders placed by 12 PM local warehouse time will ship the same day. Some exclusions apply. Delivery time may increase if item isn't available in closest warehouse.
Delivery time: 2-4 business days
DUPLEX - SIME Duplex 2" FNPT Full Circle Impact Sprinkler

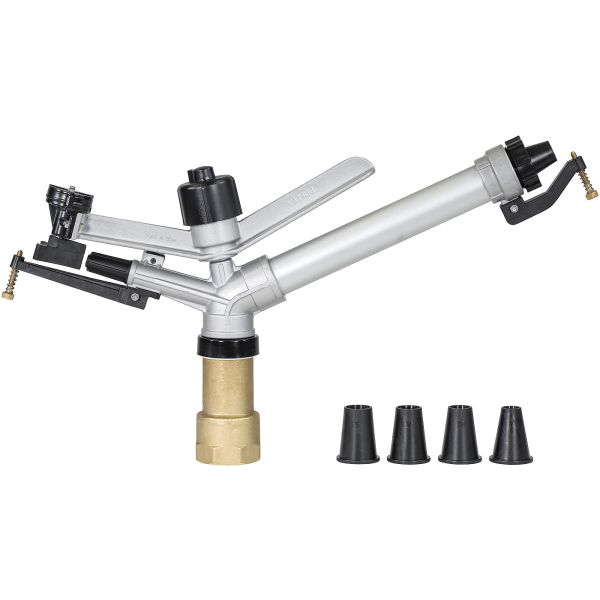

The SIME Duplex (DUPLEX) is a 2" FNPT full circle impact sprinkler for commercial agriculture. Includes interchangeable nozzle set (14, 16, 18, 20, 22 mm).
Key Features and Benefits
- 42-220 GPM flow range - Multiple nozzle sizes match output to your water supply and crop requirements
- 65.6-152.6 ft. throw radius - Covers large areas efficiently from a single sprinkler position
- 22-90 PSI operating pressure - Wide pressure range accommodates varying system designs
- 25° trajectory - Balanced angle provides good distance while managing wind drift
- Full Circle operation - Full 360° coverage for open-field and solid-set applications
- Spring Arm Impact - Proven, reliable mechanism for consistent rotation
Download Replacement Parts List + User Manual

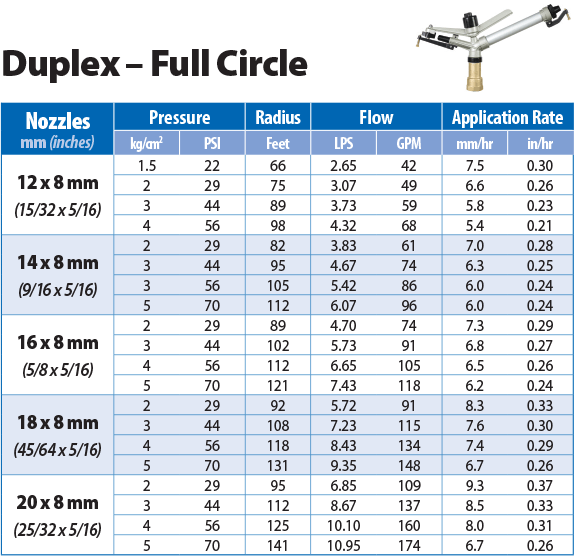

Nozzle Performance Chart
Spare Parts Available:
- DUPLEX (R)Replacement Washer Kit: DUPLEX-WASH
- DUPLEX (R) Primary Diffuser Screw and Arm: DUPLEX-DIFF
- DUPLEX Secondary Diffuser and Arm: DUPLEX-DIFF2
| Base | 2" FNPT |
|---|---|
| Flow | 42-220 GPM |
| Throw Radius | 65.6-152.6 ft. |
| Operating Pressure | 22-90 PSI |
| Trajectory Angle | 25° |
| Operation | Full Circle |
| Drive Mechanism | Spring Arm Impact |
