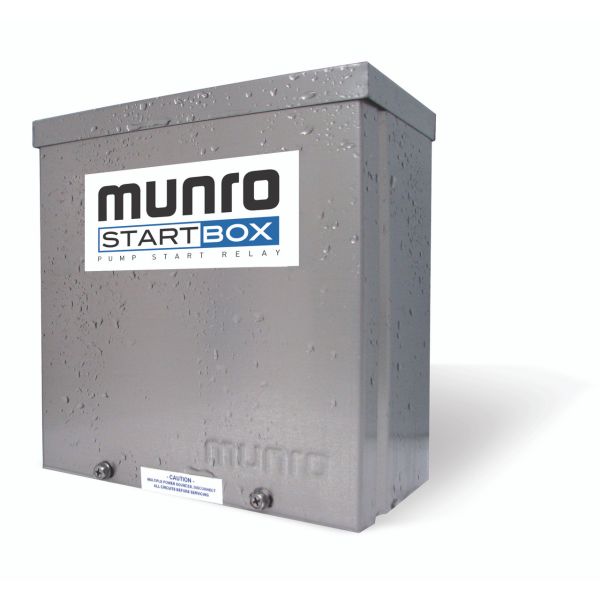

Munro MPSR24 Pump Start Relay – 24V Control, 110/220V Line, 40 Amp
was
$140.00
Special Price
$91.00
The Munro MPSR24 is a 40-amp pump start relay designed for 3/4–5 HP single-phase irrigation pumps controlled by a 24V irrigation timer or controller. Color-coded wiring simplifies field installation, and UL/CUL listing confirms compliance with commercial electrical standards. Requires a 0.36 amp signal from the irrigation controller.
| Control Voltage | 24V |
|---|---|
| Line Voltage | 110V / 220V |
| Amperage | 40 Amp |
| Compatible Pump Size | 3/4–5 HP, Single-Phase |
| Signal Required | 0.36 Amp |
| Enclosure Size | 6" x 6" x 4" |
| Listing | UL/CUL Listed |
| Wiring | Color-coded |
Availability:
In stock
SKU
MPSR24
Munro MPSR24 – 24V Pump Start Relay for Single-Phase Irrigation Pumps

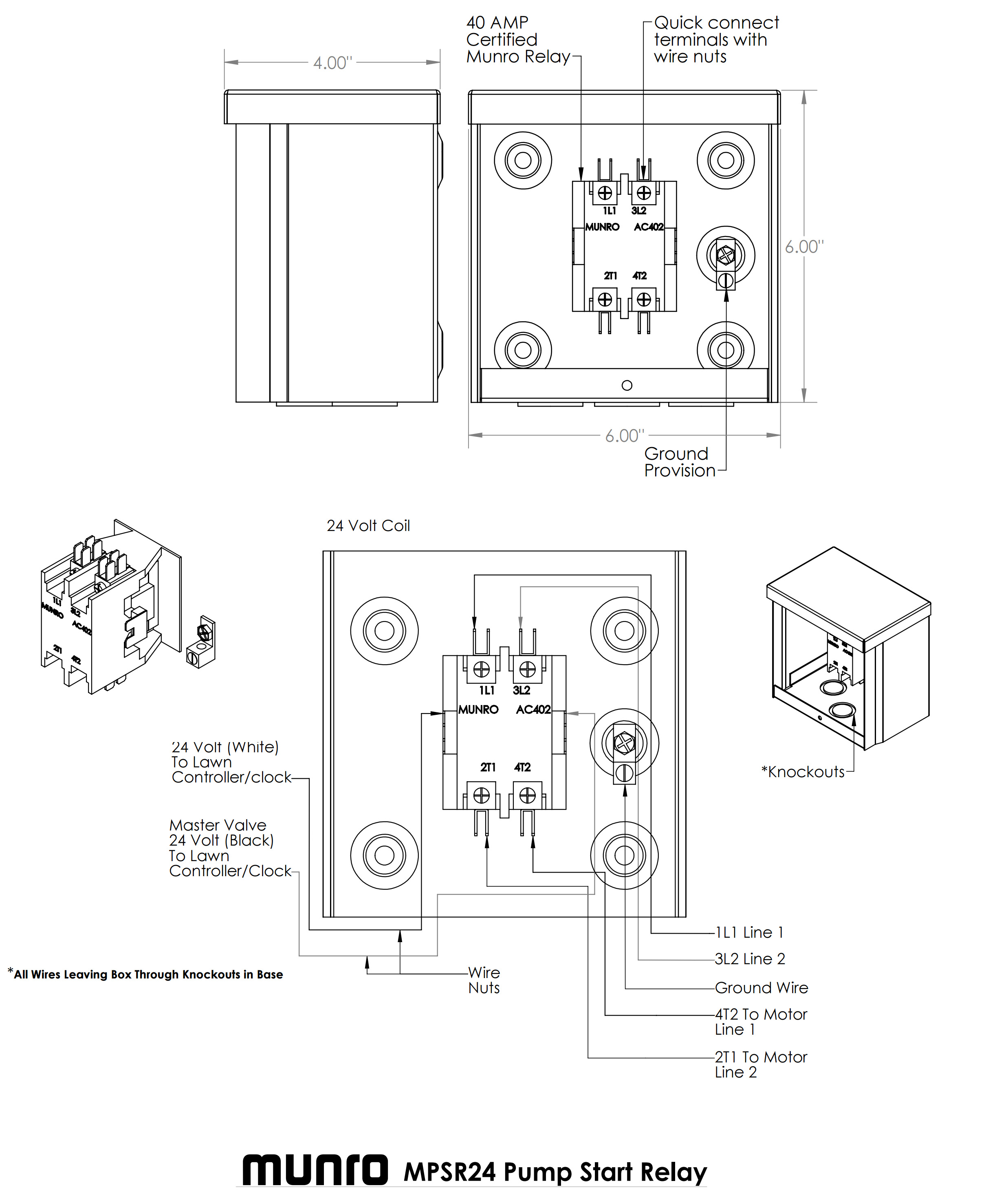

The Munro MPSR24 pump start relay enables a standard 24V irrigation controller to switch single-phase pump motors up to 5 HP. Operating at 40 amps with 110/220V line voltage compatibility, it bridges the low-voltage irrigation control signal (0.36A) and the high-current pump circuit. Color-coded wiring and a compact 6"x6"x4" enclosure simplify installation in pump stations and control panels.
Key Features and Benefits
- 24V Control Input: Directly compatible with standard 24V irrigation timers and controllers.
- 40 Amp Rating: Supports single-phase pump motors from 3/4 HP through 5 HP.
- 110V/220V Line Voltage: Works with both standard and high-voltage single-phase pump circuits.
- Color-Coded Wiring: Reduces installation errors and speeds up field wiring.
- UL/CUL Listed: Meets commercial electrical code requirements for irrigation installations.
- Compact 6"x6"x4" Enclosure: Fits in standard pump control panels without extra space requirements.
Documentation
Download Munro StartBox Installation Manual (PDF)
Specifications
| Control Voltage | 24V |
|---|---|
| Line Voltage | 110V / 220V |
| Amperage | 40 Amp |
| Compatible Pump Size | 3/4–5 HP, Single-Phase |
| Signal Required | 0.36 Amp |
| Enclosure Size | 6" x 6" x 4" |
| Listing | UL/CUL Listed |
| Wiring | Color-coded |
