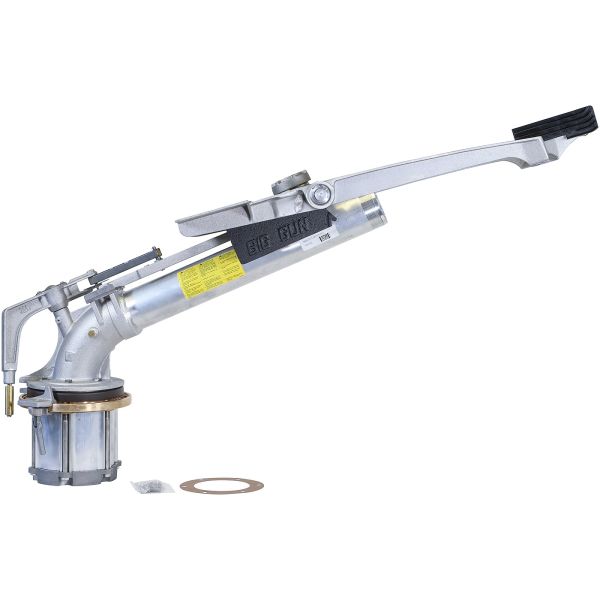

Nelson SR200 Big Gun Sprinkler - 24° Part Circle - 4" Nelson Flange

9192-024 - Nelson SR200 24° Part Circle Big Gun Sprinkler

The Nelson SR200 Big Gun sprinkler (9192-024) by Nelson Irrigation is engineered for large-scale irrigation, hose reel travelers, wastewater disposal, reclaimed water distribution, mining, and industrial applications. With a 230-1200 GPM flow range and 160-310 ft throw radius, it provides efficient large-area coverage from a single sprinkler position.

Key Features and Benefits

• 230-1200 GPM (52-272 m3/hr) flow range - Taper Bore and Ring nozzles (sold separately) let you match output to your water supply and field conditions
• 160-310 ft (48-95 m) throw radius - Covers large areas efficiently, reducing the number of sprinkler positions and labor required
• 50-130 PSI (3.5-9 bar) operating pressure - Wide pressure range accommodates varying system designs and pump capacities
• 24° trajectory angle - Low angle resists wind drift for improved distribution uniformity
• Part Circle operation - Adjustable arc directs water precisely where it is needed, avoiding roads and structures
• Lifetime-lubricated bearings - Maintenance-free performance eliminates field greasing
• Drive arm & counterweight mechanism - Provides consistent, reliable oscillation season after season

Nozzles Sold Separately

Compatible with Taper Bore and Ring nozzles. Select the nozzle size that matches your flow and pressure requirements:

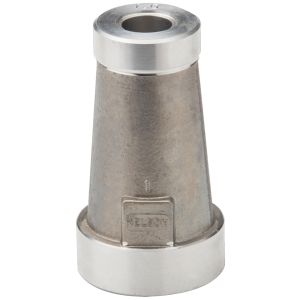

• Taper Bore Nozzles

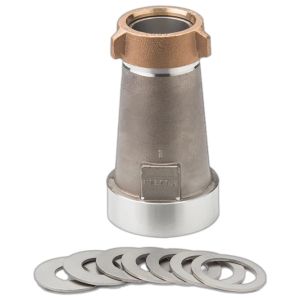

• Ring Nozzle Kit

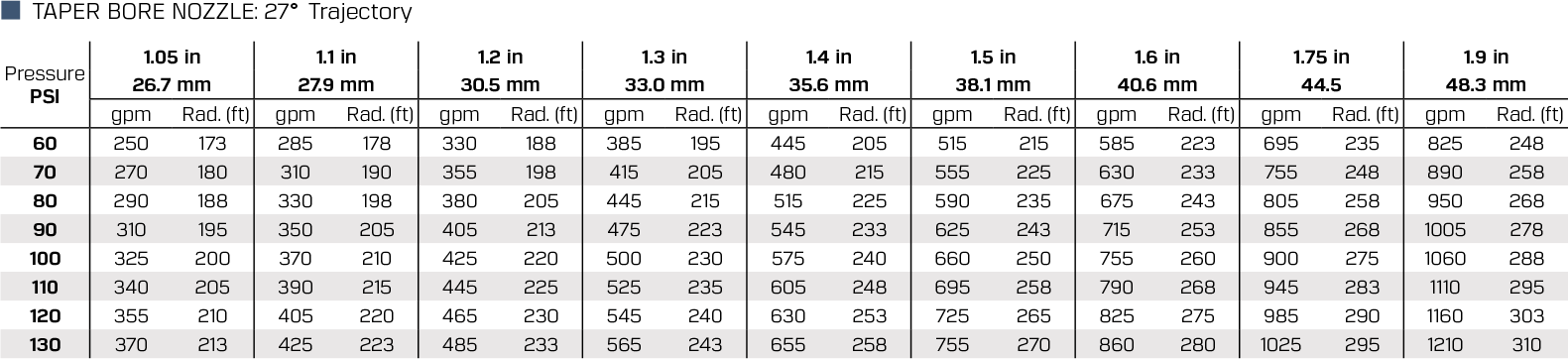

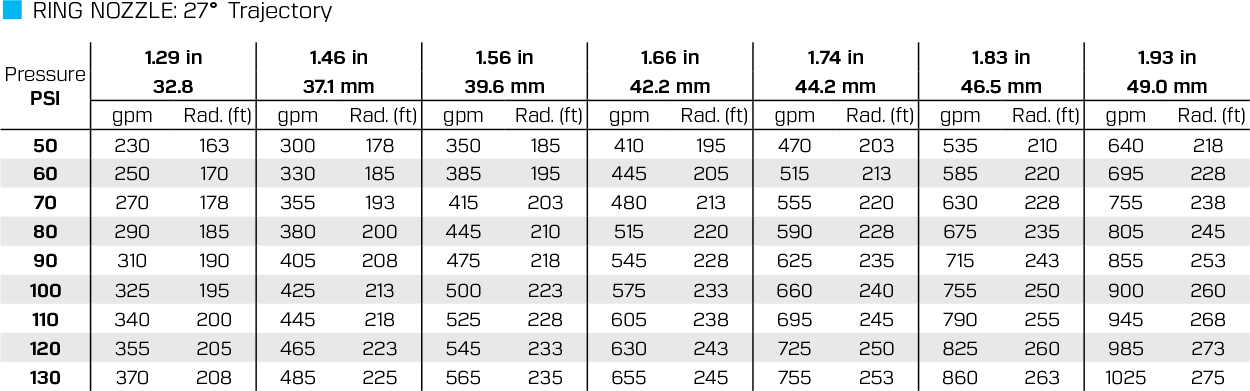

Nozzle Performance Charts

Spare Parts Available:

• Nozzle Performance Charts
• Big Gun Irrigation Guide
• SR200 Operation & Maintenance
• Big Gun Troubleshooting
• SR200 Parts List
