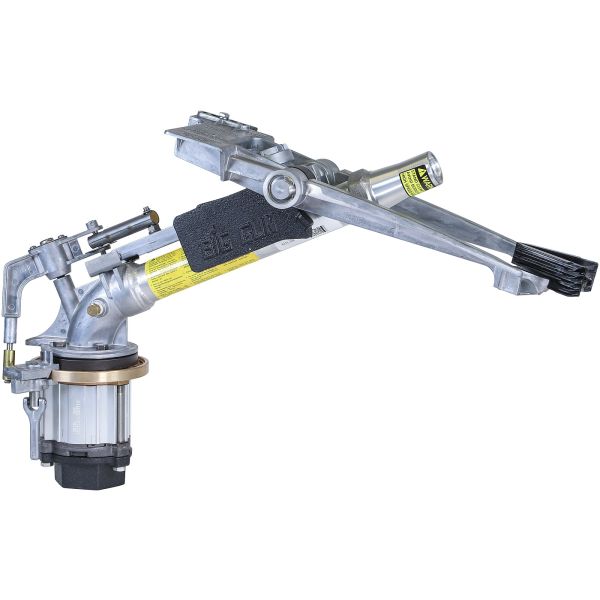

Nelson SR100 Big Gun Sprinkler - 24° Part Circle - 2" FNPT

was $1,567.00 Special Price $1,027.00

The Nelson SR100 Big Gun sprinkler delivers 40-300 GPM over a 90-190 ft throw radius at 40-110 PSI. The SR100 is the original pivot end gun that has defined the market for decades. Part circle operation provides targeted coverage along field edges and pivot corners.

Nozzles sold separately

Connection	2" FNPT
Flow	40-300 GPM (9-68 m3/hr)
Throw Radius	90-190 ft (27-58 m)
Operating Pressure	40-110 PSI (2.75-7.5 bar)
Trajectory Angle	24°
Coverage Pattern	Part Circle
Drive Mechanism	Drive Arm & Counterweight

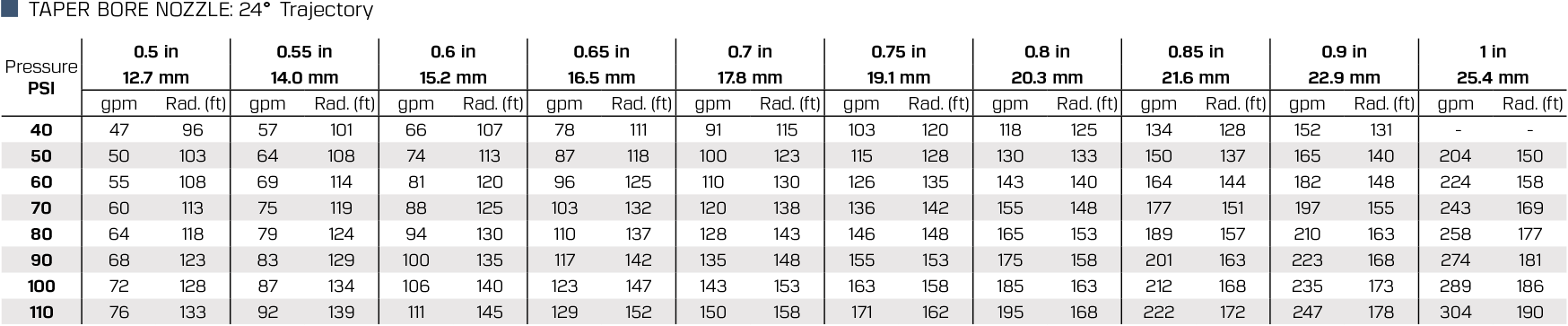

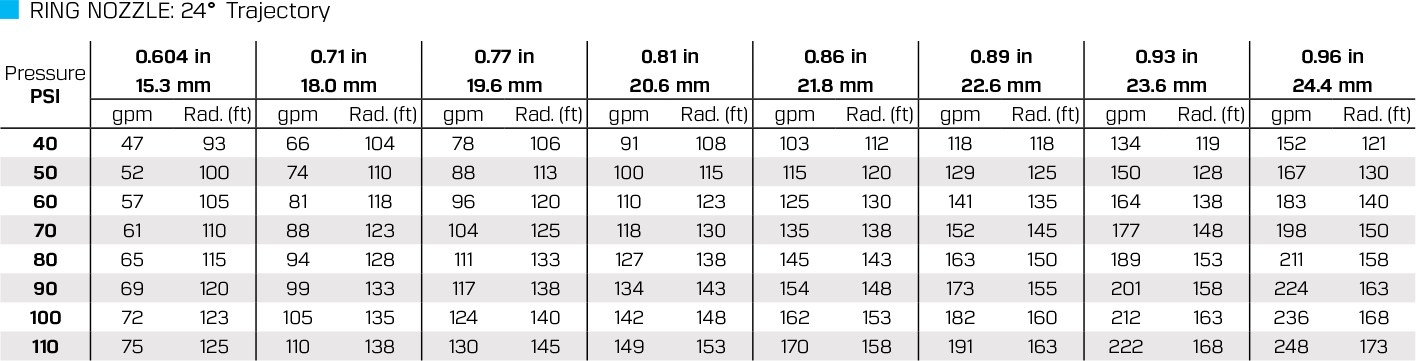

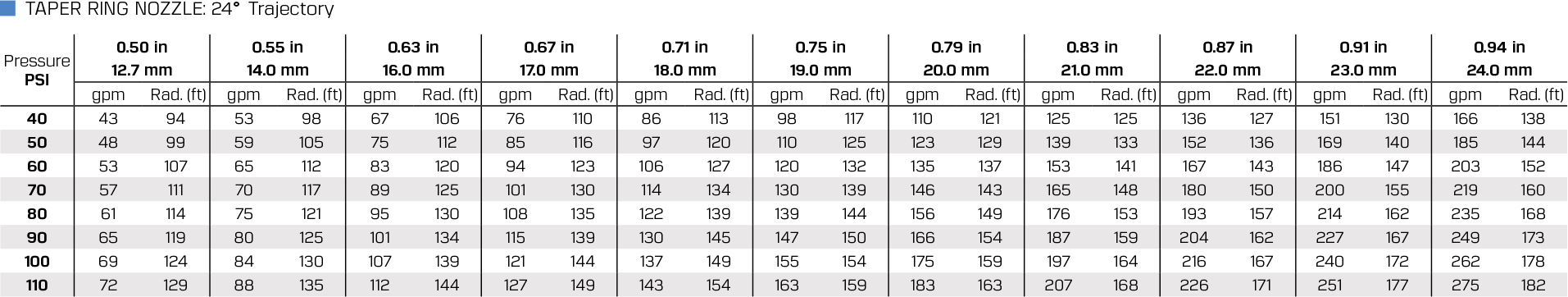

See Nozzle Performance Chart

Availability: In stock

Only 6 left

SKU

8211-106

Need More?

Add to Wish List Add to Compare

Details

8211-106 - Nelson SR100 24° Part Circle Big Gun Sprinkler

The Nelson SR100 Big Gun sprinkler (8211-106) by Nelson Irrigation is engineered for center pivot end guns, solid-set, traveler, and industrial applications. With a 40-300 GPM flow range and 90-190 ft throw radius, it provides efficient large-area coverage from a single sprinkler position.

Key Features and Benefits

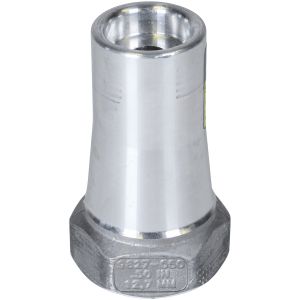

40-300 GPM (9-68 m3/hr) flow range - Taper Bore, Taper Ring, and Ring nozzles (sold separately) let you match output to your water supply and field conditions
90-190 ft (27-58 m) throw radius - Covers large areas efficiently, reducing the number of sprinkler positions and labor required
40-110 PSI (2.75-7.5 bar) operating pressure - Wide pressure range accommodates varying system designs and pump capacities
24° trajectory angle - Low angle resists wind drift for improved distribution uniformity
Part Circle operation - Adjustable arc directs water precisely where it is needed, avoiding roads and structures
Lifetime-lubricated bearings - Maintenance-free performance eliminates field greasing
Drive arm & counterweight mechanism - Provides consistent, reliable oscillation season after season
