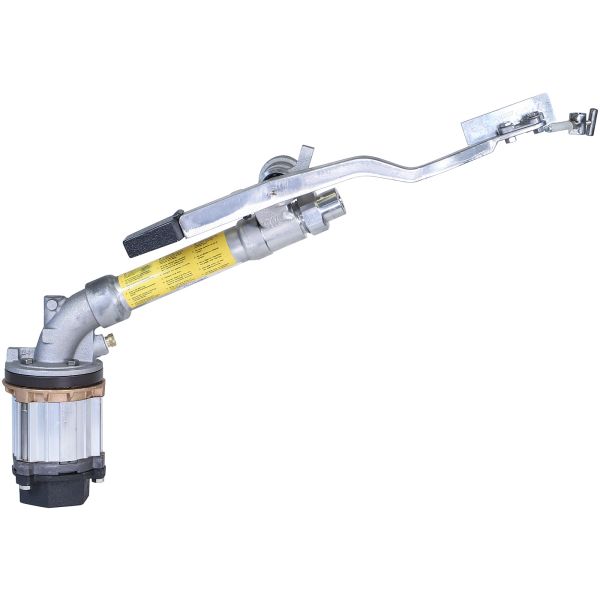

Nelson F75 Big Gun Sprinkler - 24° Full Circle - 2" FNPT

10279-124 - Nelson F75 24° Full Circle Big Gun Sprinkler

The Nelson F75 Big Gun sprinkler (10279-124) by Nelson Irrigation is engineered for portable and solid-set systems, sports fields, mining sites, and industrial applications where flow or pressure is limited. With a 25-160 GPM flow range and 75-140 ft throw radius, it provides efficient large-area coverage from a single sprinkler position.

Key Features and Benefits

• 25-160 GPM (6-36 m3/hr) flow range - Taper Ring nozzles (sold separately) let you match output to your water supply and field conditions
• 75-140 ft (23-43 m) throw radius - Covers large areas efficiently, reducing the number of sprinkler positions and labor required
• 25-80 PSI (1.75-5.5 bar) operating pressure - Wide pressure range accommodates varying system designs and pump capacities
• 24° trajectory angle - Low angle resists wind drift for improved distribution uniformity
• Full Circle operation - Covers a full 360° for open-field and solid-set applications
• Lifetime-lubricated bearings - Maintenance-free performance eliminates field greasing
• Drive arm & counterweight mechanism - Provides consistent, reliable oscillation season after season

Nozzles Sold Separately

Compatible with Taper Ring nozzles. Select the nozzle size that matches your flow and pressure requirements:

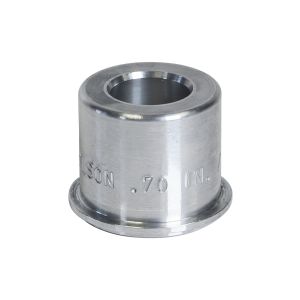

• Taper Ring Nozzles

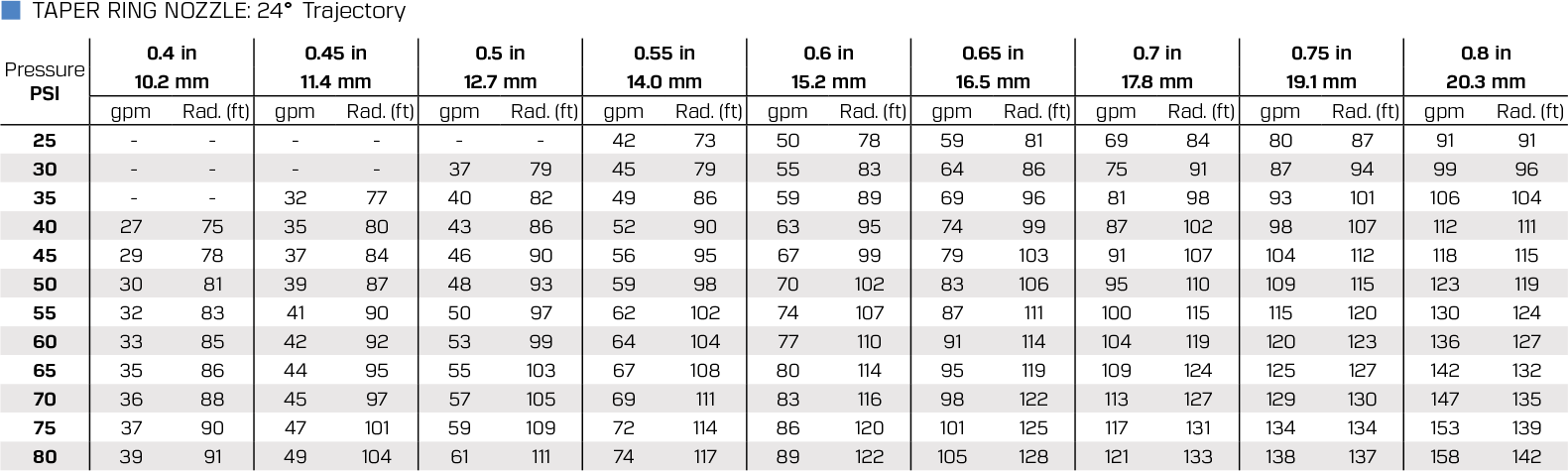

Nozzle Performance Charts

Manuals & Literature

• Nozzle Performance Charts
• Big Gun Irrigation Guide
• F75 Operation & Maintenance

Spare Parts Available:

• F75 Parts List
