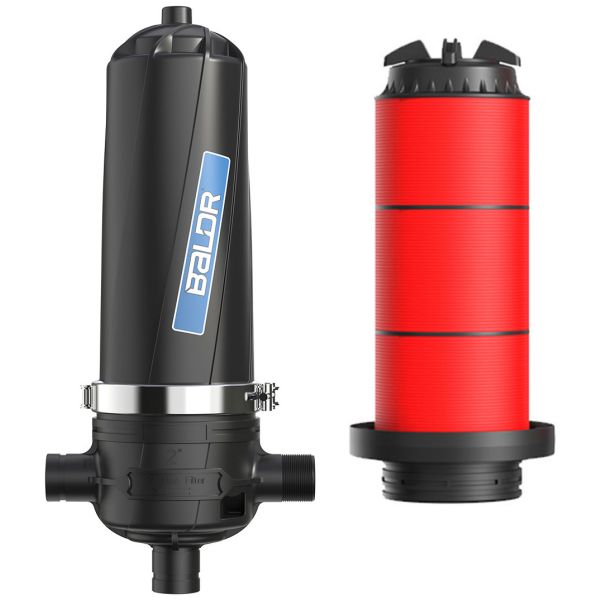

BALDR 3" T Disc Filter - 120 Mesh, 264 GPM

BALDR chooses colorful & thin polypropylene discs with multiple filtration grades. The discs are diagonally grooved on both sides in opposite directions. A series of discs are stacked and compressed, locking on a specially designed filter spine. The opposite directed grooves between any adjacent discs will be pressed together, and create many crossing small spaces, formed as a series of unique filtration pass to contain impurities. In the filtration process, the force of the spring along with the differential pressure firmly compresses these discs together and through multiple crossing spaces, it can provide distinctive in-depth filtration.

Features & Benefits:

• Maximum quality and safety in filtration.
• Resistant to chemical products and durable.
• Multiple filtration grades.
• Easy installation, handling and maintenance.
• Water and energy saving.
• 3 mouth housing with different connection possibilities.
• Can be installed in any position.
• Innovative grooved discs design retains large amounts of solids.
• Low pressure loss.

Material:

• Housing: Reinforced Polypropylene
• Filtering Elements: PP Grooved Discs
• Clamp: Stainless Steel
• Sealing Element: NBR

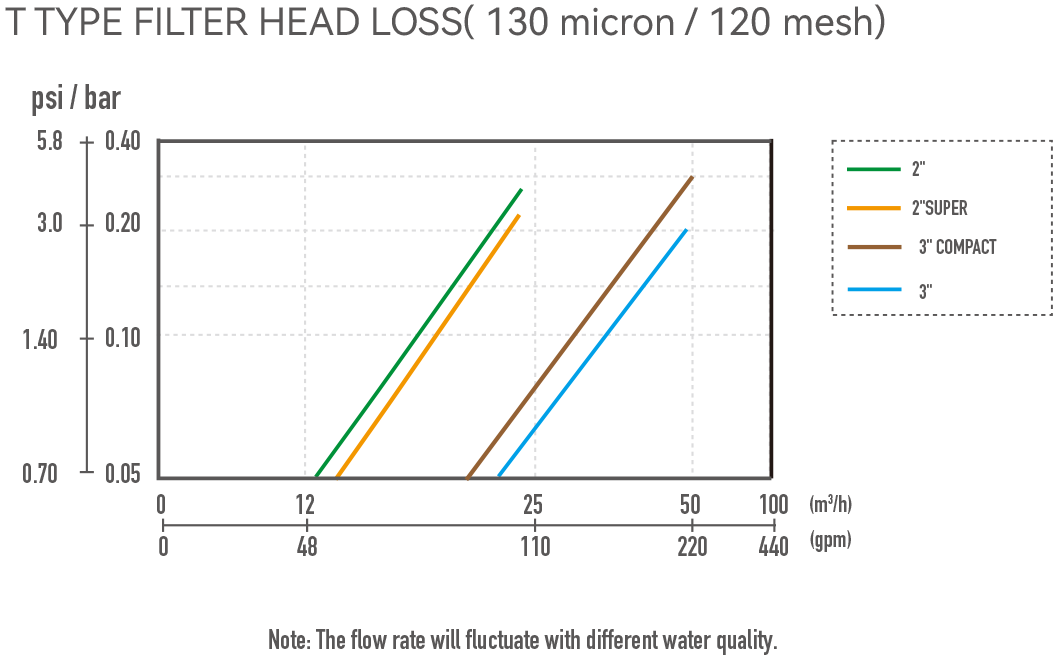

Head Loss

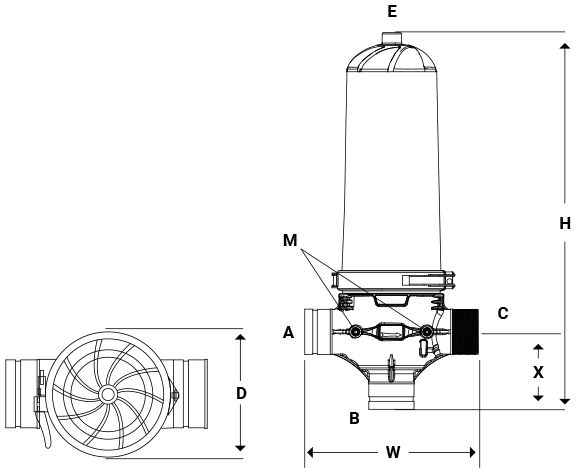

Dimensions - Inches
