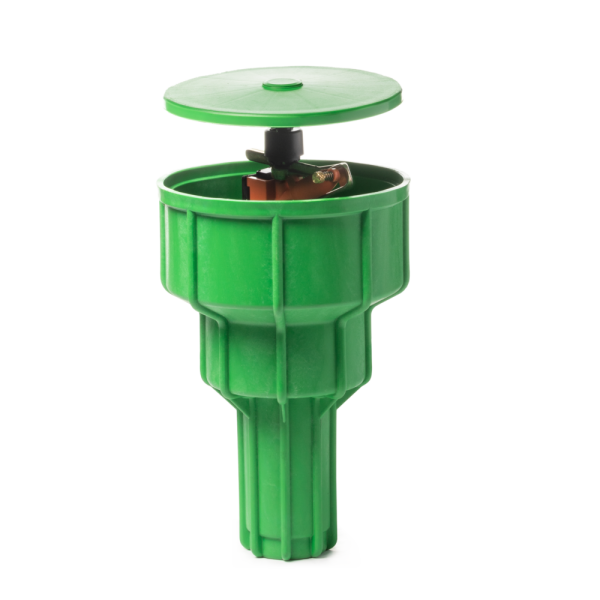

SIME Dynamic 1" FNPT Part Circle Pop-up Impact Sprinkler - 26°
$108.29
The SIME Dynamic is a 1" FNPT part circle pop-up impact sprinkler for commercial agriculture. 2.4-4.0 GPM over a 32.8-44.5 ft. throw radius at 22-56 PSI. Pop-up design retracts below ground when not in use, protecting the sprinkler from equipment damage and keeping fields clear for machinery.
| Connection | 1" FNPT |
|---|---|
| Flow | 2.4-4.0 GPM |
| Throw Radius | 32.8-44.5 ft. |
| Operating Pressure | 22-56 PSI |
| Trajectory Angle | 26° |
| Coverage Pattern | Part Circle |
| Drive Mechanism | Spring Arm Impact |
See Nozzle Performance Chart
Availability:
Out of stock
SKU
DYNAMIC
Ships Same Day
All orders placed by 12 PM local warehouse time will ship the same day. Some exclusions apply. Delivery time may increase if item isn't available in closest warehouse.
Delivery time: 2-4 business days
DYNAMIC - SIME Dynamic 1" FNPT Part Circle Pop-up Impact Sprinkler
The SIME Dynamic (DYNAMIC) is a 1" FNPT part circle pop-up impact sprinkler designed for commercial agriculture and irrigation applications. Pop-up design retracts below ground when not in use, protecting the sprinkler from equipment damage and keeping fields clear for machinery.
Key Features and Benefits
- 2.4-4.0 GPM flow range - Multiple nozzle sizes let you match output to your water supply and crop requirements
- 32.8-44.5 ft. throw radius - Covers large areas efficiently from a single sprinkler position
- 22-56 PSI operating pressure - Wide pressure range accommodates varying system designs
- 26° trajectory - Balanced angle provides good distance while managing wind drift
- Part Circle operation - Adjustable arc directs water where it is needed, avoiding roads and structures
- Pop-up design - Retracts below ground when not in use, protecting the sprinkler from equipment damage
Download Replacement Parts + User Manual
Nozzle Performance Chart
| Base | 1" FNPT |
|---|---|
| Flow | 2.4-4.0 GPM |
| Throw Radius | 32.8-44.5 ft. |
| Operating Pressure | 22-56 PSI |
| Trajectory Angle | 26° |
| Operation | Part Circle Pop-up |
| Drive Mechanism | Spring Arm Impact |
