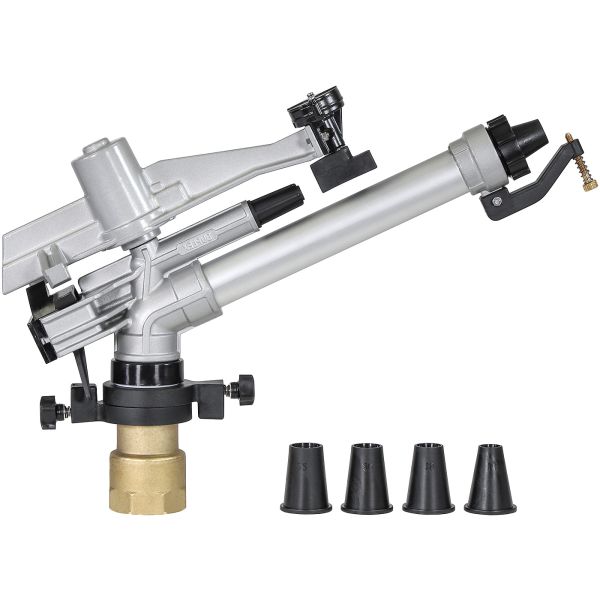

SIME Duplex 2" FNPT Part Circle Impact Sprinkler - 25° - w/Nozzles
$406.30
The SIME Duplex is a 2" FNPT part circle impact sprinkler for commercial agriculture. 42-220 GPM over a 65.6-152.6 ft. throw radius at 22-90 PSI.
| Connection | 2" FNPT |
|---|---|
| Flow | 42-220 GPM |
| Throw Radius | 65.6-152.6 ft. |
| Operating Pressure | 22-90 PSI |
| Trajectory Angle | 25° |
| Coverage Pattern | Part Circle |
| Drive Mechanism | Spring Arm Impact |
| Nozzle Set | 14, 16, 18, 20, 22 mm |
See Nozzle Performance Chart
Availability:
In stock
SKU
DUPLEXR
- Buy 5 for $359.00 each and save 12%
- Buy 10 for $336.00 each and save 17%
Ships Same Day
All orders placed by 12 PM local warehouse time will ship the same day. Some exclusions apply. Delivery time may increase if item isn't available in closest warehouse.
Delivery time: 2-4 business days
DUPLEXR - SIME Duplex 2" FNPT Part Circle Impact Sprinkler
The SIME Duplex (DUPLEXR) is a 2" FNPT part circle impact sprinkler for commercial agriculture. Includes interchangeable nozzle set (14, 16, 18, 20, 22 mm).
Key Features and Benefits
- 42-220 GPM flow range - Multiple nozzle sizes match output to your water supply and crop requirements
- 65.6-152.6 ft. throw radius - Covers large areas efficiently from a single sprinkler position
- 22-90 PSI operating pressure - Wide pressure range accommodates varying system designs
- 25° trajectory - Balanced angle provides good distance while managing wind drift
- Part Circle operation - Adjustable arc directs water where it is needed
- Spring Arm Impact - Proven, reliable mechanism for consistent rotation
Download Replacement Parts List + User Manual
Nozzle Performance Chart
Spare Parts Available:
- DUPLEX (R) Replacement Washer Kit
Spare Parts Available:
- DUPLEX (R)Replacement Washer Kit: DUPLEX-WASH
- DUPLEX (R) Primary Diffuser Screw and Arm: DUPLEX-DIFF
| Base | 2" FNPT |
|---|---|
| Flow | 42-220 GPM |
| Throw Radius | 65.6-152.6 ft. |
| Operating Pressure | 22-90 PSI |
| Trajectory Angle | 25° |
| Operation | Part Circle |
| Drive Mechanism | Spring Arm Impact |
