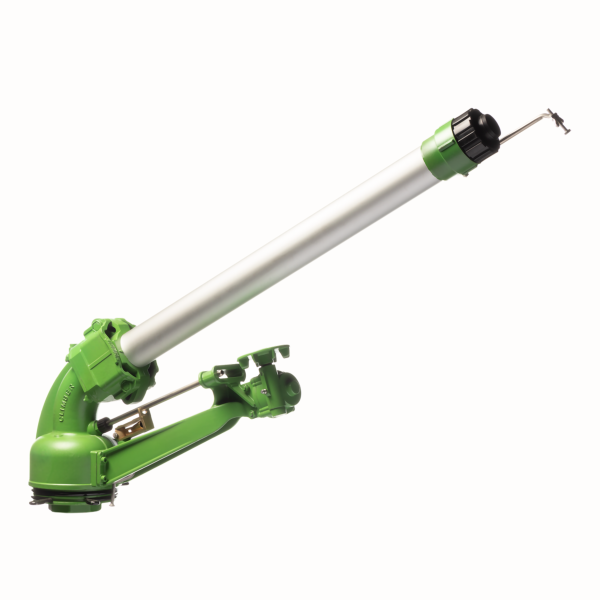

SIME Climber 2.5" FNPT Part Circle Turbine Sprinkler - Variable Angle Trajectory - w/Nozzles
$1,316.17
The SIME Climber is a 2.5" FNPT part circle turbine sprinkler for commercial agriculture. 128-571 GPM over a 101-223 ft. throw radius at 29-115 PSI.
| Connection | 2.5" FNPT |
|---|---|
| Flow | 128-571 GPM |
| Throw Radius | 101-223 ft. |
| Operating Pressure | 29-115 PSI |
| Trajectory Angle | 18-46° |
| Coverage Pattern | Part Circle |
| Drive Mechanism | Turbine |
| Nozzle Set | 28, 30, 32 mm |
See Nozzle Performance Chart
Availability:
Out of stock
SKU
CLIMBER
- Buy 5 for $1,149.00 each and save 13%
- Buy 10 for $1,075.00 each and save 18%
Ships Same Day
All orders placed by 12 PM local warehouse time will ship the same day. Some exclusions apply. Delivery time may increase if item isn't available in closest warehouse.
Delivery time: 2-4 business days
CLIMBER - SIME Climber 2.5" FNPT Part Circle Turbine Sprinkler
The SIME Climber (CLIMBER) is a 2.5" FNPT part circle turbine sprinkler for commercial agriculture. Includes interchangeable nozzle set (28, 30, 32 mm). Variable trajectory angle (18-46 degrees) adjustable in the field.
Key Features and Benefits
- 128-571 GPM flow range - Multiple nozzle sizes match output to your water supply and crop requirements
- 101-223 ft. throw radius - Covers large areas efficiently from a single sprinkler position
- 29-115 PSI operating pressure - Wide pressure range accommodates varying system designs
- 18-46° trajectory - Low angle resists wind drift for improved distribution uniformity
- Part Circle operation - Adjustable arc directs water where it is needed
- Turbine drive - Smooth, gear-driven rotation provides consistent speed and uniform distribution

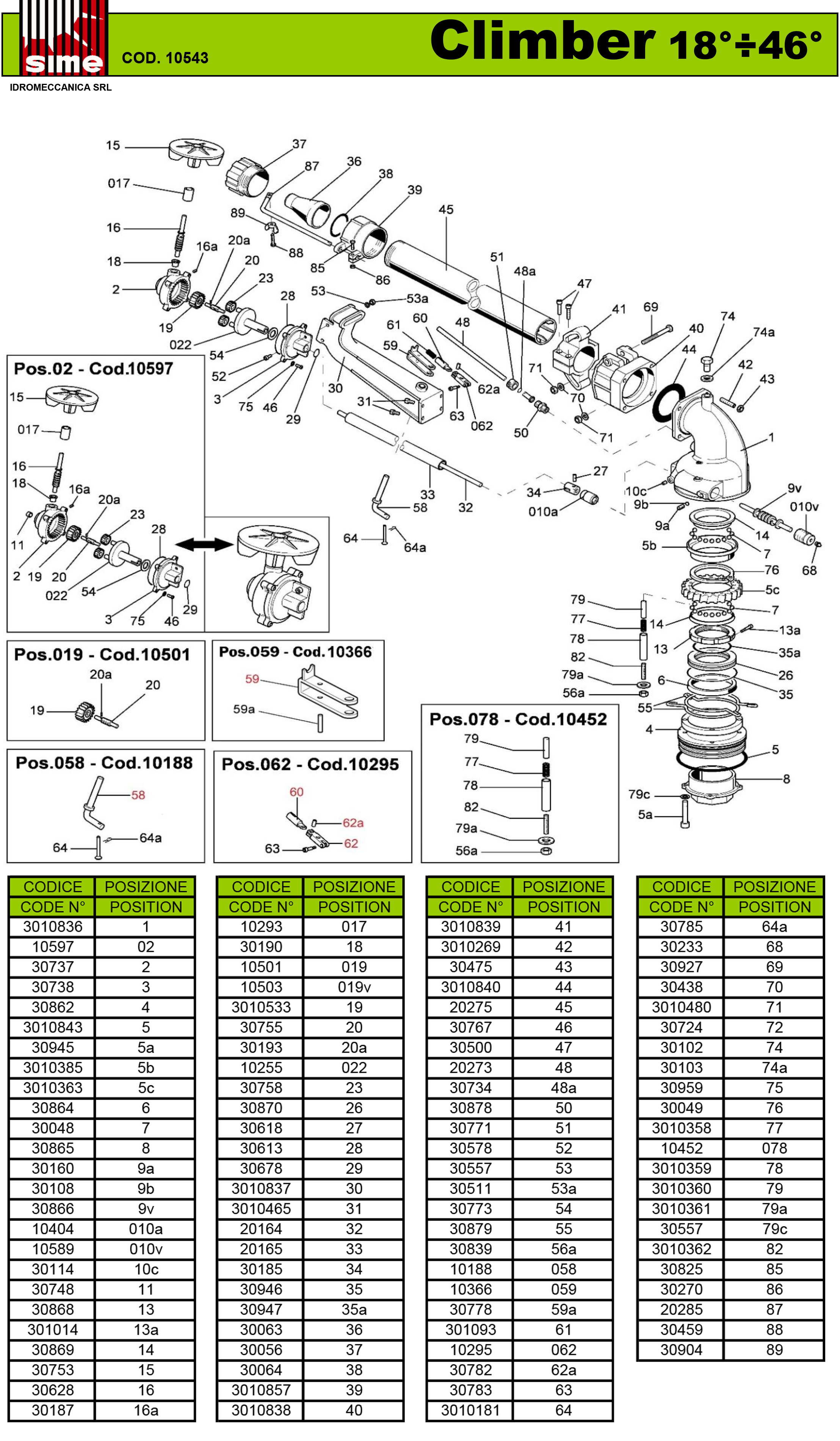

Download Replacement Parts List + User Manual

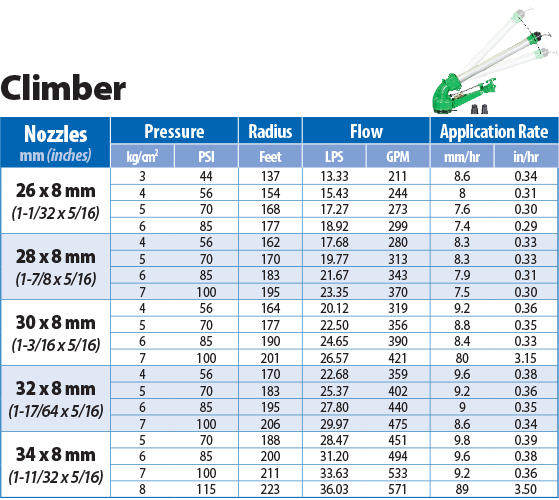

Nozzle Performance Chart
| Base | 2.5" FNPT |
|---|---|
| Flow | 128-571 GPM |
| Throw Radius | 101-223 ft. |
| Operating Pressure | 29-115 PSI |
| Trajectory Angle | 18° - 46° |
| Operation | Part Circle |
| Drive Mechanism | Gear |
