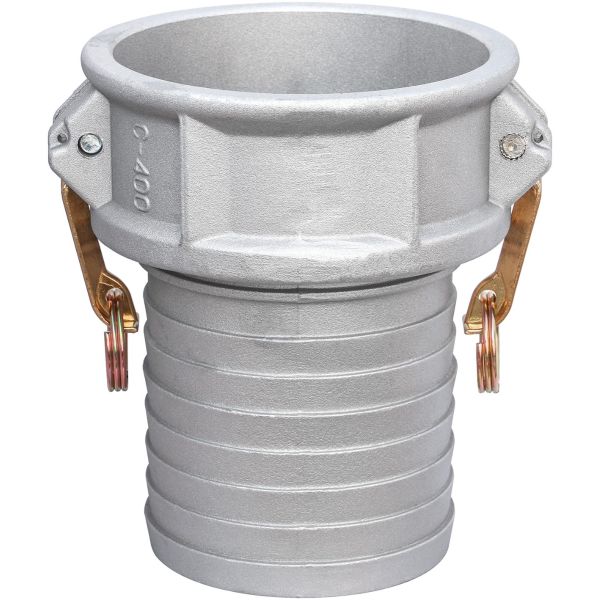

C Type 6" Aluminum Camlock - Female Coupler x Hose Barb
$68.01
"C" type 6" female aluminum camlock (cam & groove) to 6" hose shank.
| Camlock Type | C (Female Coupler x Hose Shank) |
|---|---|
| Size | 6" |
| Camlock Side | 6" Female Cam & Groove Coupler |
| Hose Side | 6" Hose Shank / Hose Barb |
| Material (body) | Aluminum |
| Maximum Operating Pressure | 75 PSI |
| Typical Media | Water and non-corrosive liquids such as hydraulic oil, coolants, gasoline, and petroleum products. |
| Typical Uses | Attaching lay flat or suction hose to male camlock adapters on pumps, manifolds, and mainline. |
Availability:
In stock
SKU
RKC-600
Ships Same Day
All orders placed by 12 PM local warehouse time will ship the same day. Some exclusions apply. Delivery time may increase if item isn't available in closest warehouse.
Delivery time: 2-4 business days
The C Type 6" Aluminum Camlock has a 6" female cam & groove coupler on one side and a 6" hose shank on the other. It is commonly used to terminate lay flat or suction hose with a camlock connection so it can quickly connect to 6" male camlock adapters in the field.
This fitting is ideal for portable hose assemblies on trash pumps, transfer pumps, and temporary irrigation or dewatering systems where you want to move hoses frequently.
Key Features
- Standard Type C camlock – 6" female camlock coupler x 6" hose shank.
- Secure hose connection – shank end inserts into lay flat or suction hose and is clamped in place.
- Quick, tool-free camlock connection – couples to any 6" male camlock adapter.
- Lightweight aluminum construction – strong and corrosion-resistant for irrigation and industrial use.
- Works with T-bolt or band clamps to secure hose to the shank.
How This Fitting Connects
On the hose side:
- Insert the 6" hose shank fully into the lay flat, discharge, or suction hose.
- Secure with a T-bolt clamp or heavy-duty band clamp.
On the camlock side:
- Use with any 6" male camlock adapter on pumps, manifolds, or pipe.
- Insert the male adapter into the female coupler and close both cam arms firmly.
Typical Applications
- Portable lay flat discharge hose assemblies for trash pumps and transfer pumps.
- Suction hose assemblies connecting to pump inlets.
- Temporary irrigation and water transfer manifolds.
Choosing the Right Camlock Type for Your System
Type C camlocks are usually found on hose ends, where they mate with Type A, E, or F adapters. A common combination is:
- Type A, E, or F 6" Aluminum Camlock on the pump or manifold side (male adapter).
- Type C 6" Aluminum Camlock on the hose end.
- A T-bolt clamp securing the hose to the shank.
