BALDR 4" Hydraulic Control Valve - 24V AC Solenoid - Flange
was
$597.82
Special Price
$353.29

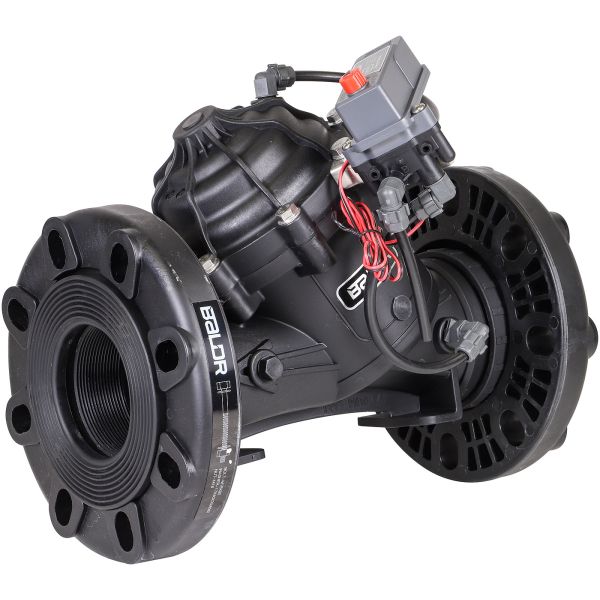

BALDR 4" hydraulically operated, diaphragm-actuated control valve with 24V AC solenoid. Connects to any compatible AC irrigation controller. Automatically closes upon loss of control signal for fail-safe operation. Easily converts to DC power by swapping the bolt-on solenoid with a 9-24V DC latching solenoid (BVSOL-DC, sold separately) - no replumbing required.
| Size | 4" |
|---|---|
| Connection | 4" Flange |
| Solenoid | 24V AC (bolt-on, replaceable) |
| Max Working Pressure | 145 PSI |
| Operation | Hydraulic diaphragm, solenoid-controlled |
| Fail Mode | Closes on signal loss |
Availability:
In stock
SKU
BV40ESC
Ships Same Day
All orders placed by 12 PM local warehouse time will ship the same day. Some exclusions apply. Delivery time may increase if item isn't available in closest warehouse.
Delivery time: 2-4 business days

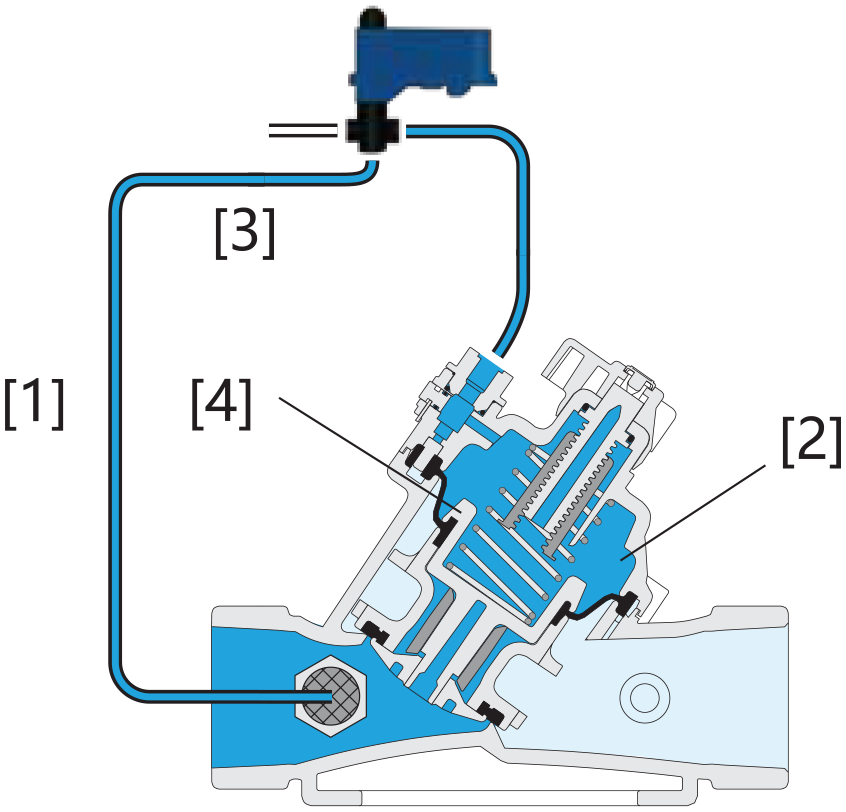

How it Works
Line pressure [1] is applied to the Control Chamber [2] through the held open Solenoid Valve. This creates superior closing force that moves the Diaphragm Assembly [4] to a closed position. Upon pressure rise command, the Solenoid Valve [3] switches, releasing pressure from the control chamber and thereby opening the Main Valve. The Solenoid Valve [3] also features local manual opening and closing.
Features:
- Hydraulically Controlled, Normally Closed Valve
- Line pressure driven
- Closes upon control failure
- Amplifies and relays weak remote command
- Engineered Plastic Valve with Industrial Grade Design
- Highly durable, chemical and cavitation resistant
- No internal bolts and nuts
- Simple in-line inspection and service
- Unitized Flexible Super Travel (FST) Diaphragm and Guided Plug
- Smooth closing
- Requires low opening and actuation pressure
- Prevents diaphragm erosion and distortion
- High Flow "Y" Valve Body with "Look Through" Design
- Ultra-high flow capacity and low pressure loss
Material:
- Body, Cover and Plug: Glass-Filled Nylon
- Diaphragm: NR
- Seals: NR
- Spring: Stainless Steel
- Cover Bolts: Stainless Steel
- Control Accessories: Nylon
- Tubing and Fittings: PE

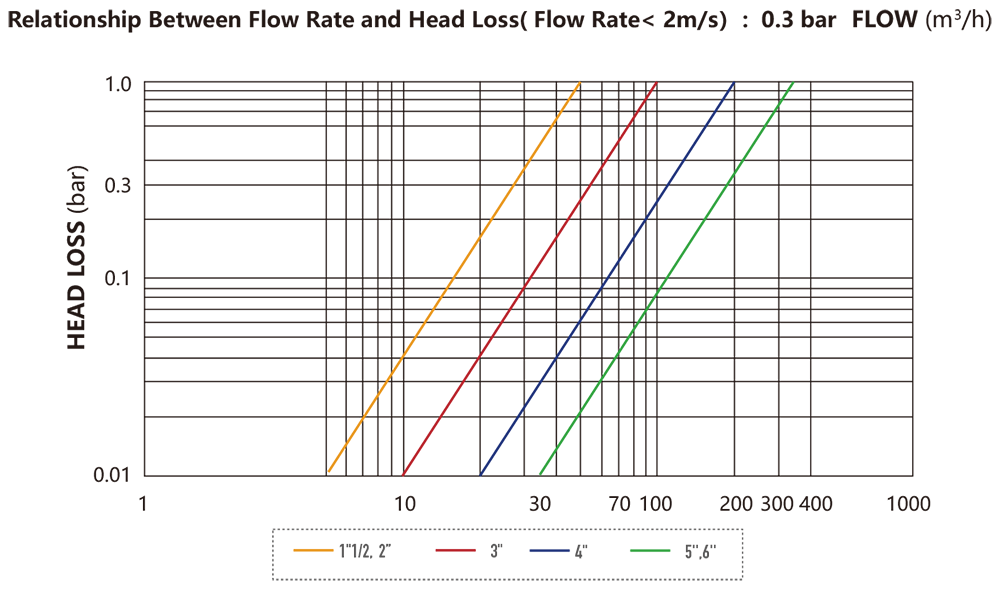

Head Loss
Dimensions - Inches
| L | W | H |
|---|---|---|
| 13.8 | 10.4 | 11.3 |
