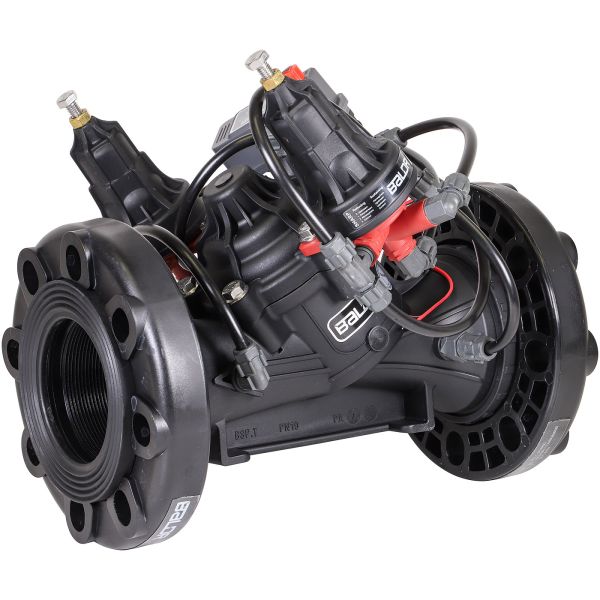

BALDR 3" Pressure Reducing & Sustaining Valve - 24V AC Solenoid - Flanged
was
$616.35
Special Price
$364.37
BALDR 3" dual-function pressure reducing and sustaining valve with 24V AC solenoid and flanged connections. Performs two functions simultaneously: (1) reduces downstream pressure to a constant preset maximum, and (2) sustains minimum upstream (back) pressure to protect pumps and upstream equipment. Opens/closes via AC irrigation controller. Converts to DC with bolt-on latching solenoid (BVSOL-DC, sold separately).
| Size | 3" |
|---|---|
| Connection | Flange |
| Solenoid | 24V AC (bolt-on, replaceable) |
| Function | Pressure Reducing + Sustaining (dual) |
| Max Working Pressure | 145 PSI |
Availability:
In stock
SKU
BV30ERS
Ships Same Day
All orders placed by 12 PM local warehouse time will ship the same day. Some exclusions apply. Delivery time may increase if item isn't available in closest warehouse.
Delivery time: 2-4 business days
How it Works

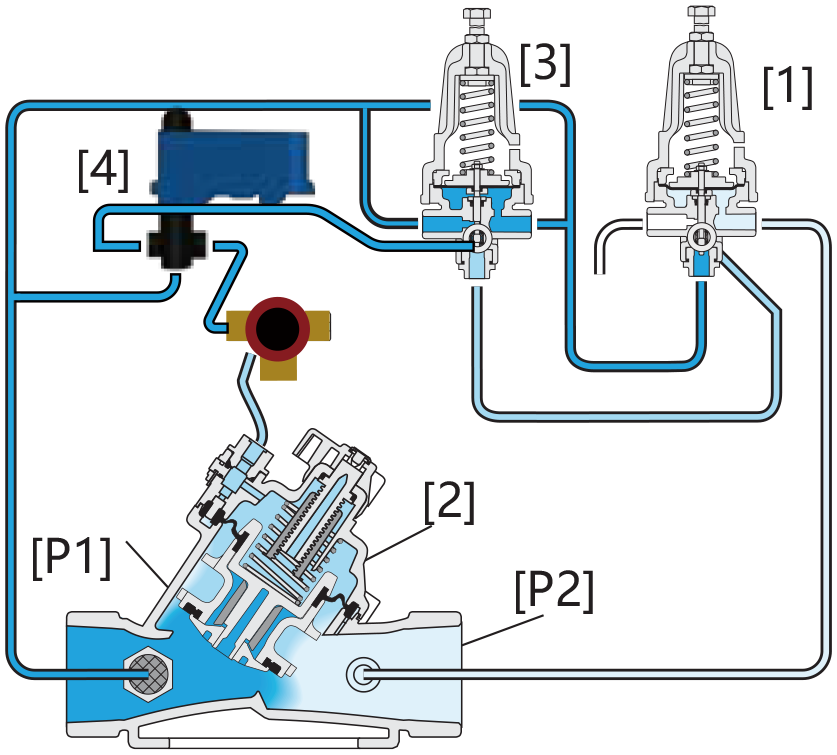

The pressure reducing pilot valve [1] is connected to the valve control chamber [2] via the pressure sustaining pilot valve [3] and the shuttle valve. The pressure sustaining pilot valve closes the valve when the upstream pressure [P1] is lower than the set value. When the upstream pressure [P1] rises above the setting, the pressure sustaining pilot valve is switched to make the pressure reducing pilot valve control the valve to reduce the downstream pressure [P2]. The solenoid valve [4] is switched by electrical signal, the pressure is guided into the shuttle valve. The shuttle valve blocks each pilot valve, the line pressure is transferred the control chamber, and the valve closes.
Features:
- Line Pressure Driven, Electronically Controlled On/Off
- Protects downstream system
- Prioritizes pressure zones
- Controls system fill-up
- Sustains upstream line pressure
- Engineered Plastic Valve with Industrial Grade Design
- Highly durable, chemical and cavitation resistant
- No internal bolts and nuts
- Unitized Flexible Super Travel (FST) Diaphragm and Guided Plug
- Accurate and stable regulation with smooth closing
- Requires low opening and actuation pressure
- Prevents diaphragm erosion and distortion
- High Flow "Y" Valve Body with "Look Through" Design
- Ultra-high flow capacity and low pressure loss
- User-Friendly Design
- Easy pressure setting
- Simple in-line inspection and service
Material:
- Body, Cover and Plug: Glass-Filled Nylon
- Diaphragm: NR
- Seals: NR
- Spring: Stainless Steel
- Cover Bolts: Stainless Steel
- Control Accessories: Nylon
- Tubing and Fittings: PE
Head Loss

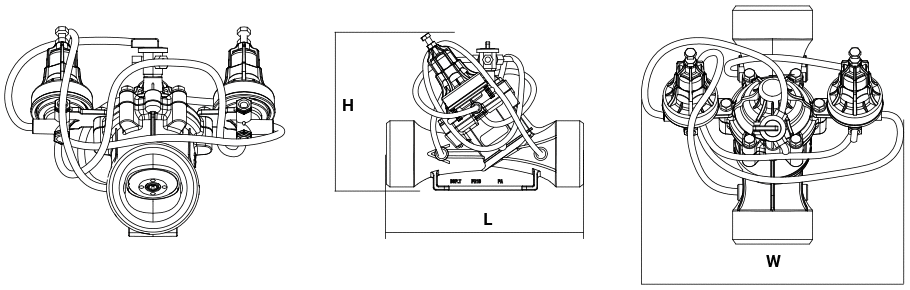

Dimensions - Inches
| L | W | H |
|---|---|---|
| 12.4 | 11.8 | 11 |
