BALDR 2" Y-Style Screen Filter – 80 Mesh, 110 GPM, MNPT

was $124.37 Special Price $89.00

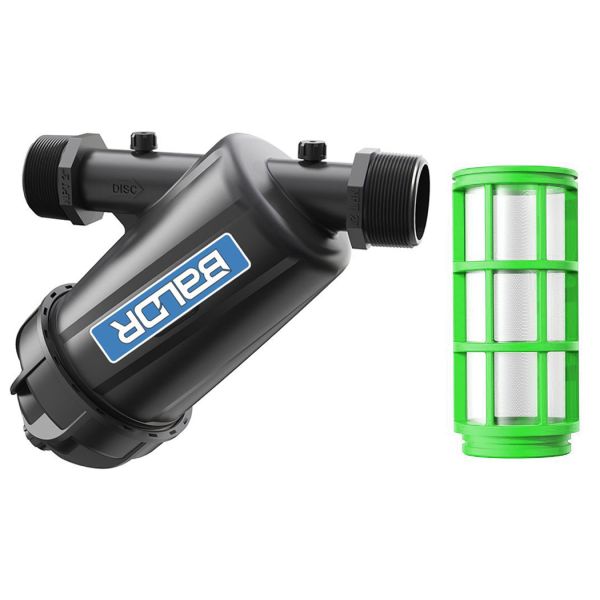

The BALDR BS225Y-80 is a 2" y-style screen filter designed for commercial irrigation mainlines and sub-mains. A cylindrical stainless steel mesh screen traps sediment and debris before it reaches drip emitters, sprinkler nozzles, or control valves. The compact Y-style body that installs inline with minimal headloss. Rated to 116 PSI and 140°F, it handles the demands of field irrigation, greenhouse systems, and municipal supply connections.

Connection Size	2" MNPT
Filter Style	Y-Style
Screen Mesh	80 Mesh
Max Flow Rate	110 GPM
Max Operating Pressure	116 PSI
Filtration Area	88 in²
Max Temperature	140°F
Body Material	Polypropylene
Screen Material	Stainless Steel

Availability: In stock

SKU

BS225Y-80

Need More?

Ships Same Day

Delivery time: 2-4 business days

Add to Wish List Add to Compare

Details

BS225Y-80 – BALDR 2" Y-Style Screen Filter, 80 Mesh

The BS225Y-80 is a 2" y-style screen filter built for commercial and agricultural irrigation systems. It uses a cylindrical stainless steel mesh screen to intercept particles before they reach sensitive downstream components such as drip emitters, micro-sprinklers, and solenoid valves. Rated to 116 PSI and 140°F, this filter suits open-field drip systems, greenhouse blocks, and pressurized sub-mains demanding reliable sediment control.

Key Features and Benefits

80 Mesh Stainless Steel Screen – Suited for general irrigation line protection (180 micron openings), protecting downstream components without excessive pressure drop.
88 in² Filtration Area – Large screen surface reduces flush frequency and maintains consistent flow even when partial fouling occurs.
110 GPM Maximum Flow – Sized for 2" pipelines operating at commercial irrigation volumes.
116 PSI Pressure Rating – Handles high-pressure mainline supply without risk of housing failure.
140°F Temperature Rating – Safe for systems using warm or solar-heated water supplies.
Polypropylene Body – Corrosion-resistant and lightweight, reducing load on fittings and supports.
Replaceable Cartridge – The stainless steel screen cartridge lifts out for cleaning or mesh-size change without replacing the body.
Male NPT threads on both inlet and outlet allow fast installation into threaded pipe systems.

Construction

Body: UV-stabilized polypropylene. Screen: 304 stainless steel mesh. Seals: EPDM O-rings. The cartridge is a drop-in fit — unscrew the cap, lift out the screen, rinse or replace, and reassemble.
