BALDR 2" Pressure Reducing Valve - 24V AC Solenoid - NPT
was
$449.07
Special Price
$265.48

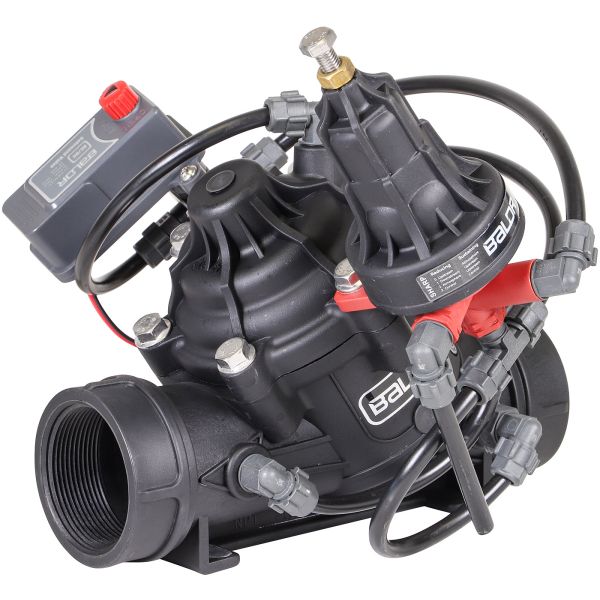

BALDR 2" hydraulically operated pressure reducing valve with 24V AC solenoid. Reduces higher upstream pressure to a constant, adjustable downstream pressure regardless of fluctuating demand. Protects drip systems, filters, and sprinklers from over-pressure. Also functions as on/off zone control via AC irrigation controller. Converts to DC with bolt-on latching solenoid (BVSOL-DC, sold separately).
| Size | 2" |
|---|---|
| Connection | 2" NPT |
| Solenoid | 24V AC (bolt-on, replaceable) |
| Max Working Pressure | 145 PSI |
| Operation | Hydraulic diaphragm + solenoid pilot |
Availability:
In stock
Only 5 left
SKU
BV20EPR
Ships Same Day
All orders placed by 12 PM local warehouse time will ship the same day. Some exclusions apply. Delivery time may increase if item isn't available in closest warehouse.
Delivery time: 2-4 business days

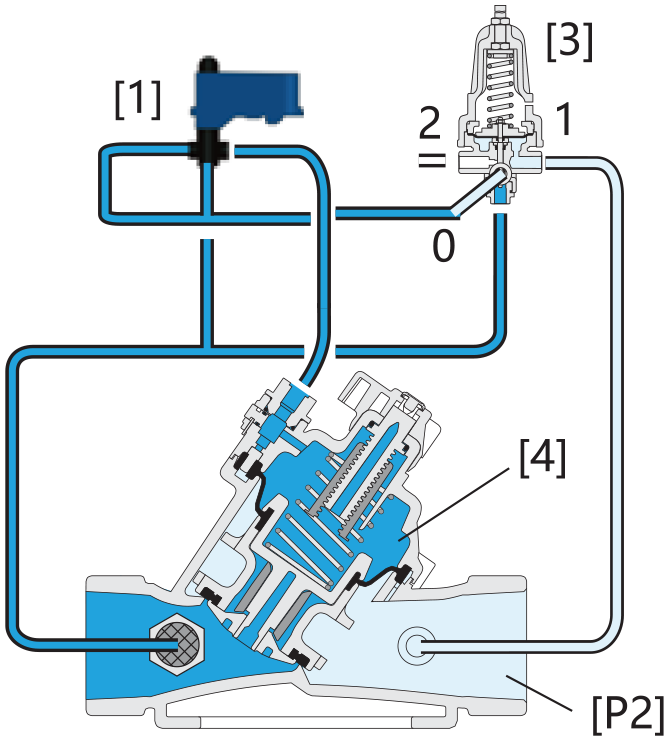

How it Works
The Solenoid Valve [1] connects Pressure Reducing Pilot [3] to the Control Chamber [4]. When the Solenoid Valve is closed, the Pressure Reducing Pilot commands the Valve to throttle closed should Downstream Pressure [P2] rise above setting and modulate to open when it drops below setting. Upon pressure drop command, the solenoid valve is switched by electric signal control, the pipe pressure is guided into the control chamber through the shuttle valve, and the pressure in the control chamber increases, prompting the valve to close. The Solenoid Valve enables manual Closing.
Features:
- Hydraulic Pressure Control with Solenoid Control
- Line pressure driven
- Protects downstream systems
- Opens fully upon line pressure drop
- Electrically controlled ON/OFF
- Engineered Plastic Valve with Industrial Grade Design
- Highly durable, chemical and cavitation resistant
- No internal bolts and nuts
- Simple in-line inspection and service
- Unitized Flexible Super Travel (FST) Diaphragm and Guided Plug
- Accurate and stable regulation with smooth closing
- Requires low opening and actuation pressure
- Prevents diaphragm erosion and distortion
- High Flow "Y" Valve Body with "Look Through" Design
- Ultra-high flow capacity and low pressure loss
Material:
- Body, Cover and Plug: Glass-Filled Nylon
- Diaphragm: NR
- Seals: NR
- Spring: Stainless Steel
- Cover Bolts: Stainless Steel
- Control Accessories: Nylon
- Tubing and Fittings: PE
Head Loss

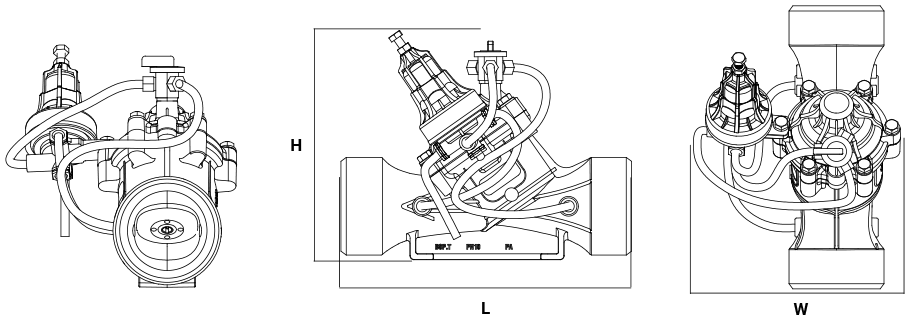

Dimensions - Inches
| L | W | H |
|---|---|---|
| 9.1 | 11.4 | 9.1 |
