Perma-Loc Reducing Coupler 700-series x 1/2" – 700 Series to 500 Series Twist-Lock Fitting
$2.19
Joins a 700-series ID tubing mainline to a 1/2 in. ID tubing lateral with a tool-free twist-lock on both ends. The Irritec Perma-Loc reducing coupler eliminates the need for separate reducers or barb-and-clamp adapters when stepping down tubing size in the field.
| SKU | A1-HRC75 |
|---|---|
| Inlet (large end) | 700-series Perma-Loc (700 Series) |
| Outlet (small end) | 1/2" Perma-Loc (500 Series) |
| Inlet Compatible Tubing | 700-series ID tubing |
| Outlet Compatible Tubing | 1/2 in. ID tubing |
| Material | UV-stabilized engineering-grade plastic |
| Tool Required | None |
| Reusable | Yes |
Availability:
In stock
SKU
A1-HRC75
Ships Same Day
All orders placed by 12 PM local warehouse time will ship the same day. Some exclusions apply. Delivery time may increase if item isn't available in closest warehouse.
Delivery time: 2-4 business days

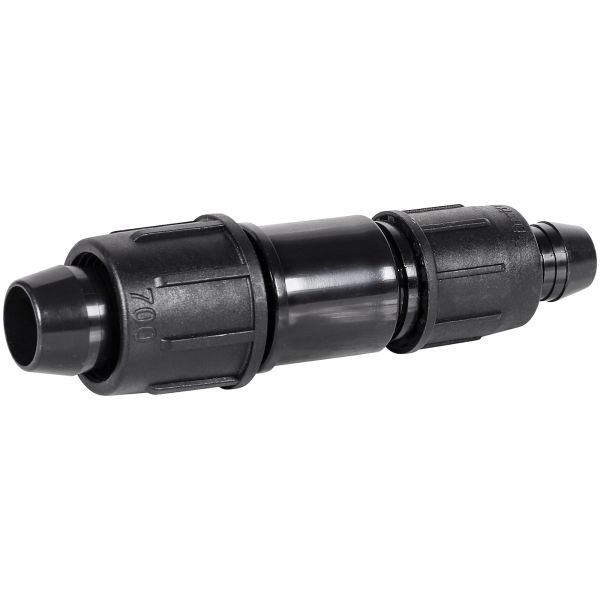

A1-HRC75 – Perma-Loc Reducing Coupler 700-series x 1/2"
The A1-HRC75 is an Irritec Perma-Loc reducing coupler that transitions from 700-series ID tubing (700 Series) on the large end to 1/2 in. ID tubing (500 Series) on the small end. Both connections use the Perma-Loc twist-lock mechanism – no barbs, clamps, or tools required. Designed for commercial drip irrigation mainlines, sub-mains, and zone headers on farms, nurseries, and large-scale growing operations where different tubing sizes must be joined cleanly and quickly.
Key Features
- In-line size reduction – steps from 700-series (700 Series) down to 1/2" (500 Series) without extra adapters
- Twist-lock both ends – grips each tubing OD securely without barbs or clamps
- Tool-free installation and removal – speeds up layout changes and system expansions
- Reusable and field-serviceable – disconnect, reconfigure, and reconnect without replacing the fitting
- UV-stabilized body – maintains integrity under direct sun exposure in open-field installations
- Reduces material waste – one fitting replaces a barb reducer plus two clamps
Specifications
| SKU | A1-HRC75 |
|---|---|
| Inlet (large end) | 700-series Perma-Loc (700 Series) |
| Outlet (small end) | 1/2" Perma-Loc (500 Series) |
| Inlet Compatible Tubing | 700-series ID tubing |
| Outlet Compatible Tubing | 1/2 in. ID tubing |
| Material | UV-stabilized engineering-grade plastic |
| Tool Required | None |
| Reusable | Yes |
| Perma-Loc Heavy Wall Driplines and Hose Fittings | ||||||
|---|---|---|---|---|---|---|
| Nominal Size | Series Number | Acceptable I.D. | Acceptable Wall Thickness | Compatible IrrigationKing Tubing Size |
||
| 16mm | 500 | 0.510" - 0.580" | 12.9 - 14.7 mm | 0.035" - 0.055" | 0.89 - 1.40 mm | 1/2" |
| 17mm | 550 | 0.540" - 0.620" | 13.7 - 15.7 mm | 0.045" - 0.060" | 1.14 - 1.50 mm | - |
| 18mm | 600 | 0.590" - 0.630" | 15.0 - 16.0 mm | 0.025" - 0.050" | 0.64 - 1.27 mm | 5/8" |
| 20mm | 700 | 0.685" - 0.740" | 17.4 - 18.9 mm | 0.040" - 0.055" | 1.00 - 1.40 mm | - |
| 22mm | 800 | 0.790" - 0.845" | 20.0 - 21.5 mm | 0.045" - 0.065" | 1.14 - 1.65 mm | 3/4" |
| 26mm | 1000 | 1.025" - 1.085" | 26.0 - 27.6 mm | 0.065" - 0.075" | 1.65 - 1.91 mm | 1" |
| Size / Series Number | 500 Series (1/2"), 700 Series |
|---|
