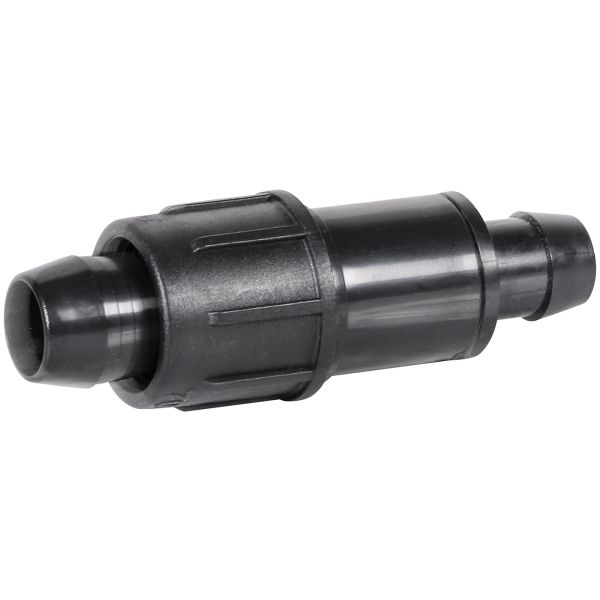

Perma-Loc 700-series x 700-series Barb Adapter – 700 Series Twist-Lock Fitting
$2.06
Connects a 700-series barb fitting or barbed tubing to a Perma-Loc 700 Series (700-series ID tubing) line. The Perma-Loc end uses twist-lock for tool-free, clamp-free connection; the barb end inserts into standard 700-series ID tubing or barbed fittings for a secure grip.
| SKU | A1-H7B700 |
|---|---|
| Perma-Loc End | 700-series Perma-Loc twist-lock (700 Series) |
| Barb End | 700-series barb |
| Compatible Perma-Loc Tubing | 700-series ID tubing |
| Material | UV-stabilized engineering-grade plastic |
| Tool Required | None (Perma-Loc end) |
| Reusable (Perma-Loc end) | Yes |
Availability:
In stock
SKU
A1-H7B700
Ships Same Day
All orders placed by 12 PM local warehouse time will ship the same day. Some exclusions apply. Delivery time may increase if item isn't available in closest warehouse.
Delivery time: 2-4 business days
A1-H7B700 – Perma-Loc 700-series x 700-series Barb Adapter, 700 Series
The A1-H7B700 is an Irritec Perma-Loc barb adapter with a 700-series Perma-Loc 700 Series twist-lock connection on one end and a 700-series barb on the other. Designed for irrigation systems that combine Perma-Loc poly tubing with barbed emitters, micro-tubing headers, or barbed fittings. The Perma-Loc end is tool-free and reusable; the barb end provides a positive grip for drip tape, poly tubing, or flexible laterals.
Key Features
- Barb-to-Perma-Loc bridge – joins 700-series barbed components to the 700 Series Perma-Loc system without extra adapters
- Tool-free Perma-Loc end – twist-lock grips 700-series ID tubing without clamps
- 700-series barb end – inserts into compatible barbed fittings or tubing for a firm, low-profile connection
- Reusable Perma-Loc side – can be disconnected and reused when redesigning system layout
- UV-stabilized body – suitable for exposed field use
- Expands system flexibility – allows mixing of barb and Perma-Loc components in the same irrigation network
Specifications
| SKU | A1-H7B700 |
|---|---|
| Perma-Loc End | 700-series Perma-Loc twist-lock (700 Series) |
| Barb End | 700-series barb |
| Compatible Perma-Loc Tubing | 700-series ID tubing |
| Material | UV-stabilized engineering-grade plastic |
| Tool Required | None (Perma-Loc end) |
| Reusable (Perma-Loc end) | Yes |
| Perma-Loc Heavy Wall Driplines and Hose Fittings | ||||||
|---|---|---|---|---|---|---|
| Nominal Size | Series Number | Acceptable I.D. | Acceptable Wall Thickness | Compatible IrrigationKing Tubing Size |
||
| 16mm | 500 | 0.510" - 0.580" | 12.9 - 14.7 mm | 0.035" - 0.055" | 0.89 - 1.40 mm | 1/2" |
| 17mm | 550 | 0.540" - 0.620" | 13.7 - 15.7 mm | 0.045" - 0.060" | 1.14 - 1.50 mm | - |
| 18mm | 600 | 0.590" - 0.630" | 15.0 - 16.0 mm | 0.025" - 0.050" | 0.64 - 1.27 mm | 5/8" |
| 20mm | 700 | 0.685" - 0.740" | 17.4 - 18.9 mm | 0.040" - 0.055" | 1.00 - 1.40 mm | - |
| 22mm | 800 | 0.790" - 0.845" | 20.0 - 21.5 mm | 0.045" - 0.065" | 1.14 - 1.65 mm | 3/4" |
| 26mm | 1000 | 1.025" - 1.085" | 26.0 - 27.6 mm | 0.065" - 0.075" | 1.65 - 1.91 mm | 1" |
| Size / Series Number | 700 Series |
|---|
