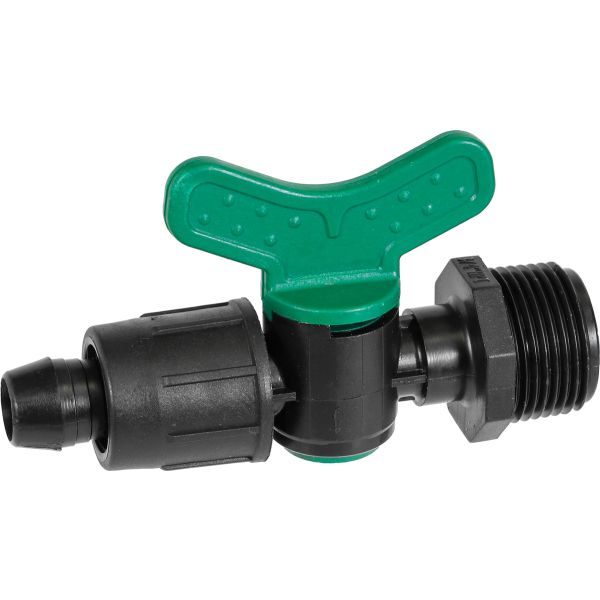

Perma-Loc 700-series x 3/4" MPT Valve Adapter – 700 Series Twist-Lock Fitting
$2.53
Combines a manual inline shut-off valve with a Perma-Loc twist-lock end and a 3/4" MPT threaded end in a single fitting. Connects 700-series ID poly tubing (compatible with Toro Blue Stripe and similar) to 3/4" pipe-thread infrastructure while providing a quarter-turn shut-off for zone control — no tools or clamps needed on the Perma-Loc side.
| SKU | RKPLV734MPT |
|---|---|
| Series | 700 Series |
| Perma-Loc End | 700-series ID tubing |
| Threaded End | 3/4" Male Pipe Thread (MPT) |
| Valve Type | Inline manual shut-off (quarter-turn) |
| Material | UV-stabilized engineering-grade plastic |
| Tool Required | None (Perma-Loc end); wrench recommended (MPT end) |
| Reusable | Yes |
Availability:
In stock
SKU
RKPLV734MPT
Ships Same Day
All orders placed by 12 PM local warehouse time will ship the same day. Some exclusions apply. Delivery time may increase if item isn't available in closest warehouse.
Delivery time: 2-4 business days
RKPLV734MPT – Perma-Loc 700-series x 3/4" MPT Valve Adapter, 700 Series
The RKPLV734MPT combines an inline manual shut-off valve with a Perma-Loc 700 Series twist-lock connection on one end and a 3/4" male pipe thread on the other. It provides a single fitting for both the tubing-to-thread transition and zone isolation, reducing the number of connection points in the system. Used at the head of Perma-Loc drip or poly-pipe zones where the run connects to a pipe-thread header or manifold on farms, nurseries, and commercial growing operations.
Key Features
- Valve + adapter in one fitting – eliminates a separate valve and adapter, reducing connection points
- Perma-Loc twist-lock end – grips 700-series ID tubing tubing OD without barbs or clamps
- 3/4" MPT end – connects to pipe-thread valves, filters, manifolds, or headers
- Quarter-turn inline shut-off – isolates the zone or tubing run for maintenance or flushing
- Reusable and field-serviceable – Perma-Loc end disconnects for layout changes
- UV-stabilized body – suitable for permanent outdoor field installation
Specifications
| SKU | RKPLV734MPT |
|---|---|
| Series | 700 Series |
| Perma-Loc End | 700-series ID tubing |
| Threaded End | 3/4" Male Pipe Thread (MPT) |
| Valve Type | Inline manual shut-off (quarter-turn) |
| Material | UV-stabilized engineering-grade plastic |
| Tool Required | None (Perma-Loc end); wrench recommended (MPT end) |
| Reusable | Yes |
| Perma-Loc Heavy Wall Driplines and Hose Fittings | ||||||
|---|---|---|---|---|---|---|
| Nominal Size | Series Number | Acceptable I.D. | Acceptable Wall Thickness | Compatible IrrigationKing Tubing Size |
||
| 16mm | 500 | 0.510" - 0.580" | 12.9 - 14.7 mm | 0.035" - 0.055" | 0.89 - 1.40 mm | 1/2" |
| 17mm | 550 | 0.540" - 0.620" | 13.7 - 15.7 mm | 0.045" - 0.060" | 1.14 - 1.50 mm | - |
| 18mm | 600 | 0.590" - 0.630" | 15.0 - 16.0 mm | 0.025" - 0.050" | 0.64 - 1.27 mm | 5/8" |
| 20mm | 700 | 0.685" - 0.740" | 17.4 - 18.9 mm | 0.040" - 0.055" | 1.00 - 1.40 mm | - |
| 22mm | 800 | 0.790" - 0.845" | 20.0 - 21.5 mm | 0.045" - 0.065" | 1.14 - 1.65 mm | 3/4" |
| 26mm | 1000 | 1.025" - 1.085" | 26.0 - 27.6 mm | 0.065" - 0.075" | 1.65 - 1.91 mm | 1" |
| Size / Series Number | 700 Series |
|---|
